• Front of the PA6X 6-channel commercial amplifier.

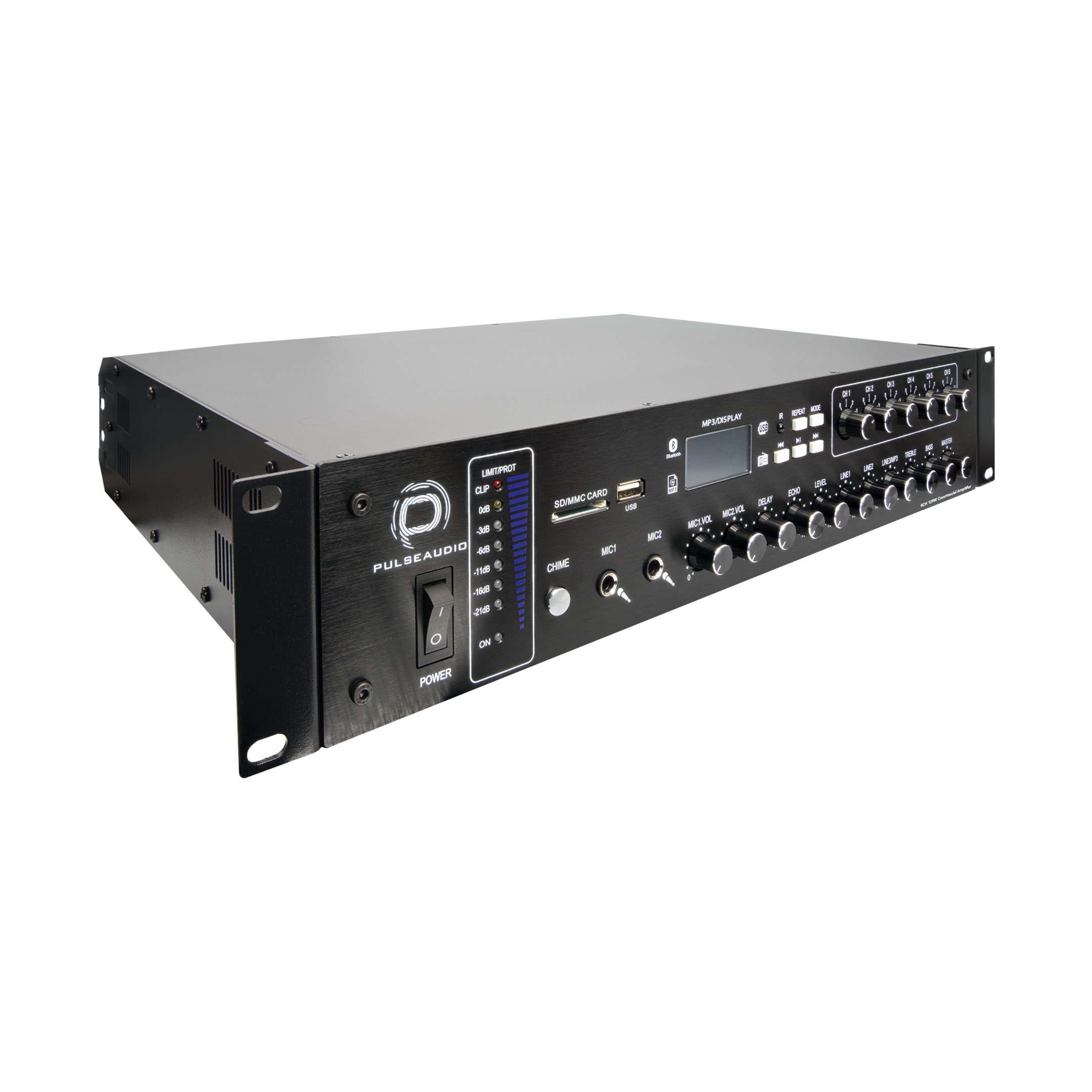

  • Front angle of the PA6X 6-channel commercial amplifier.

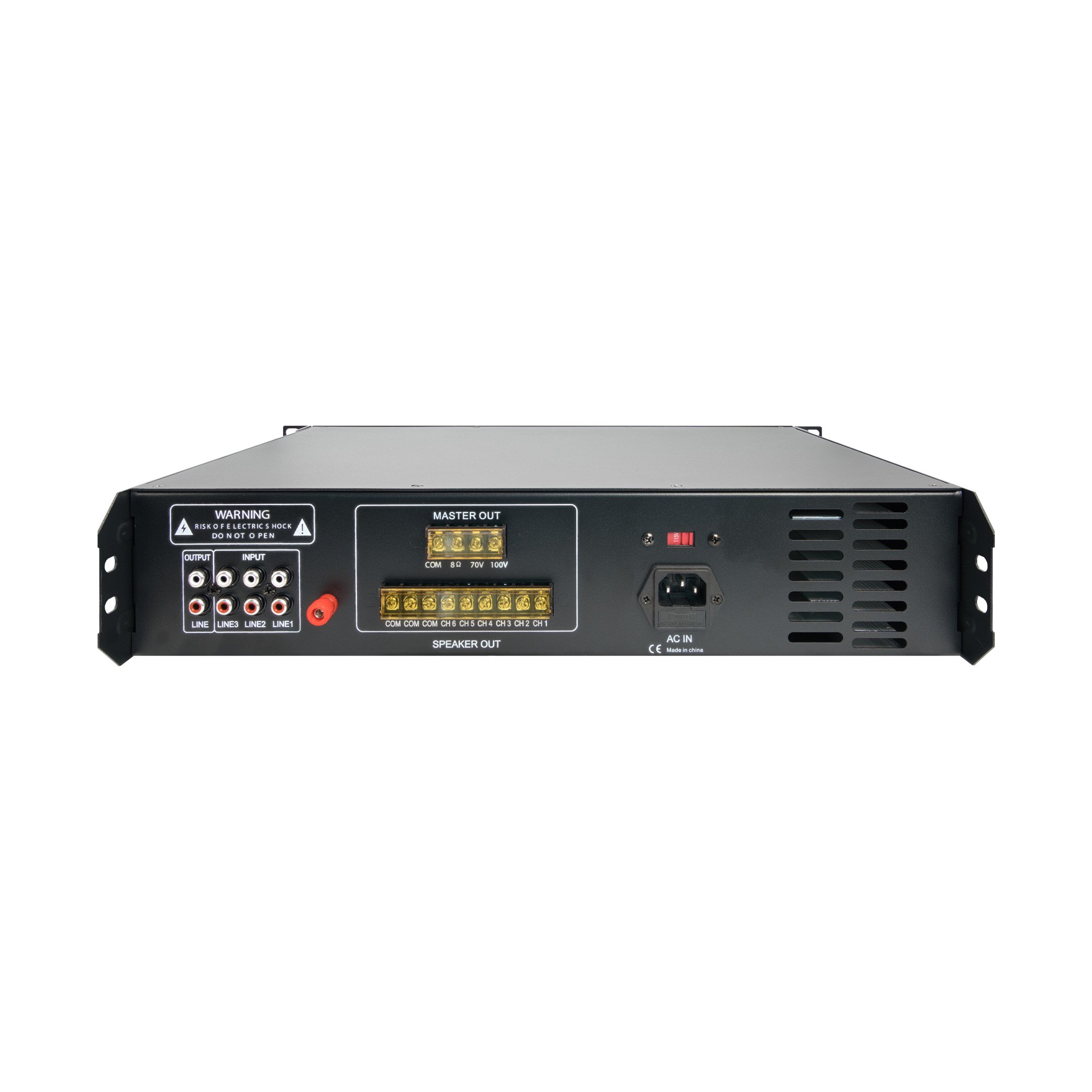

  • Back of the PA6X 6-channel commercial amplifier.

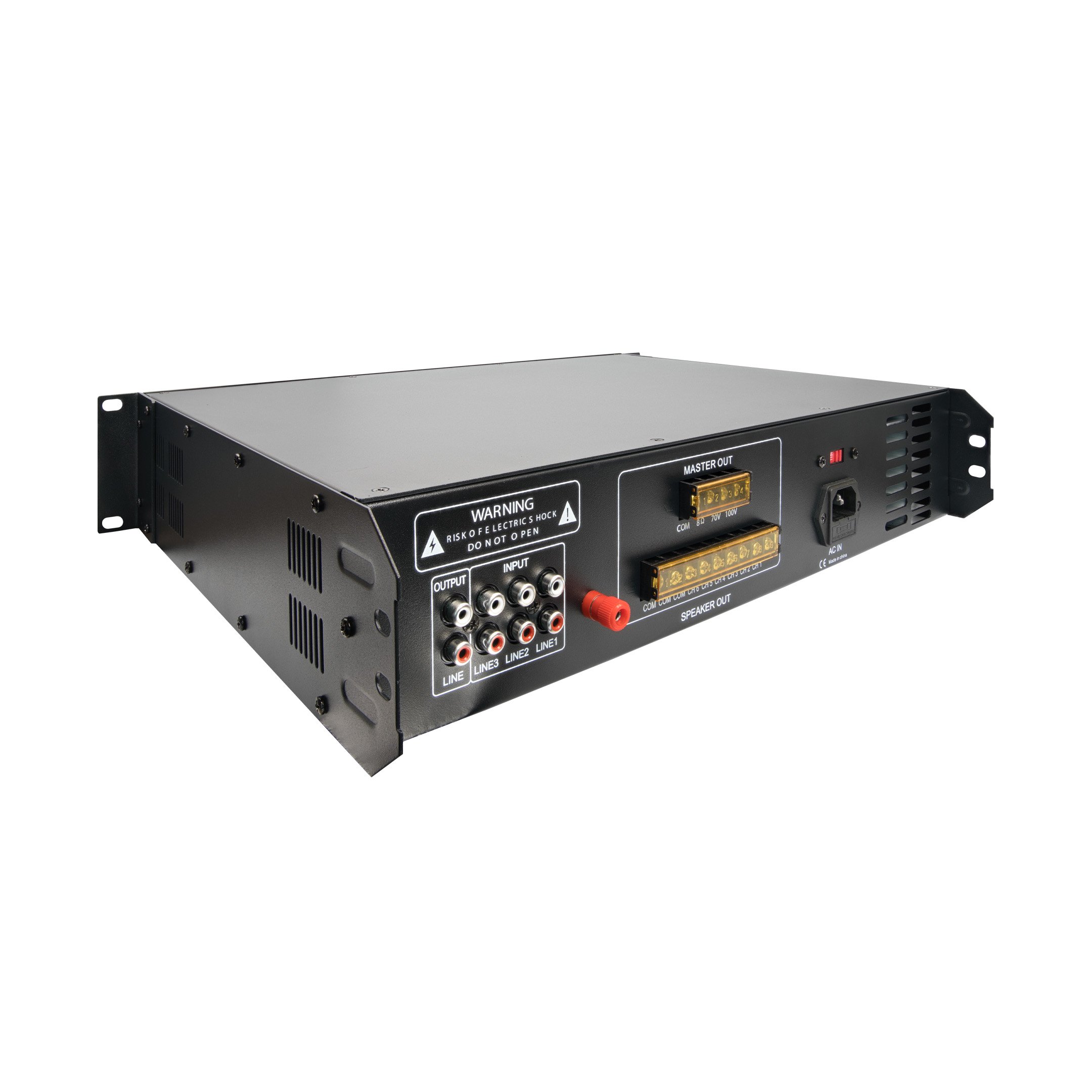

  • Back angle of the PA6X 6-channel commercial amplifier.

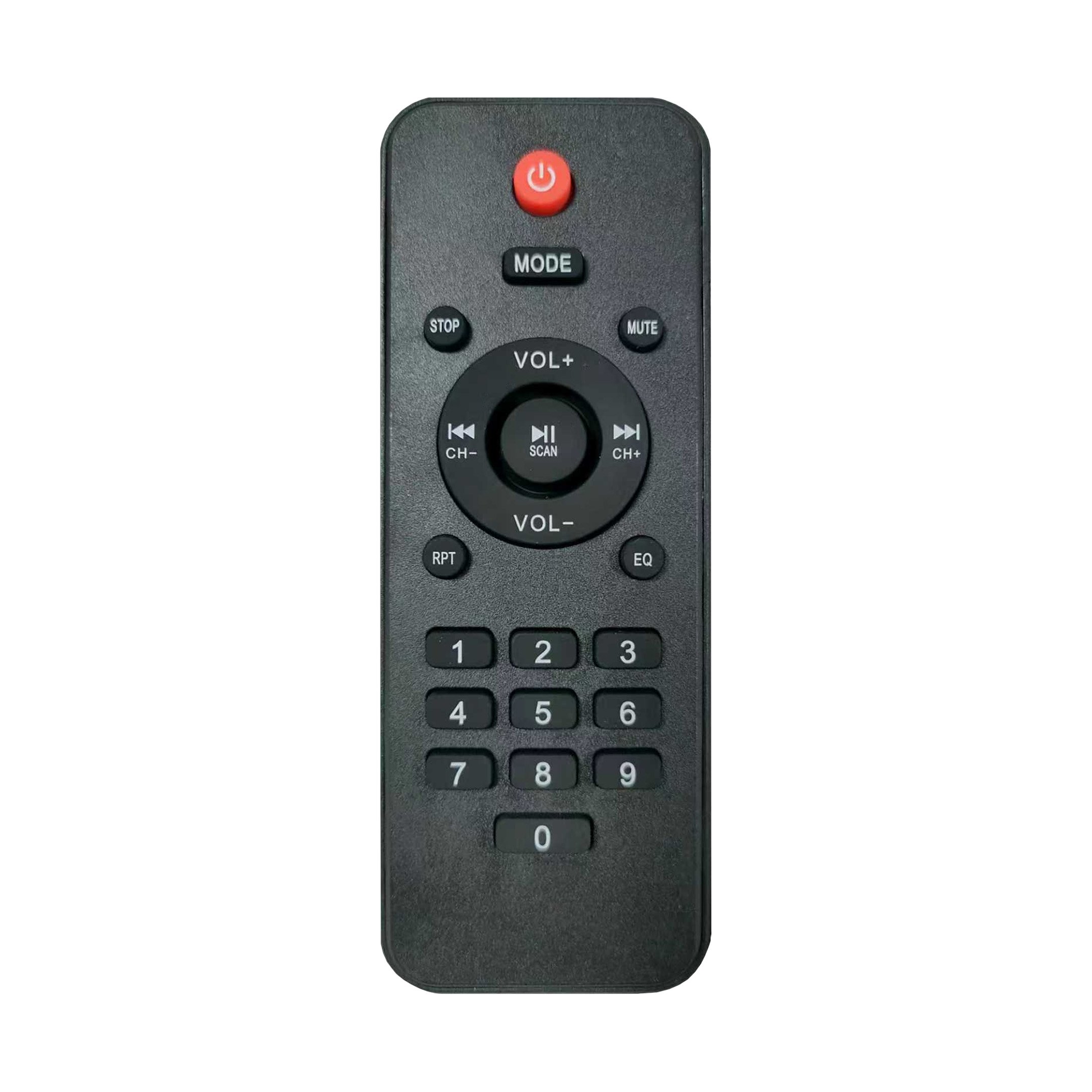

  • Remote for the PA6X 6-channel commercial amplifier.

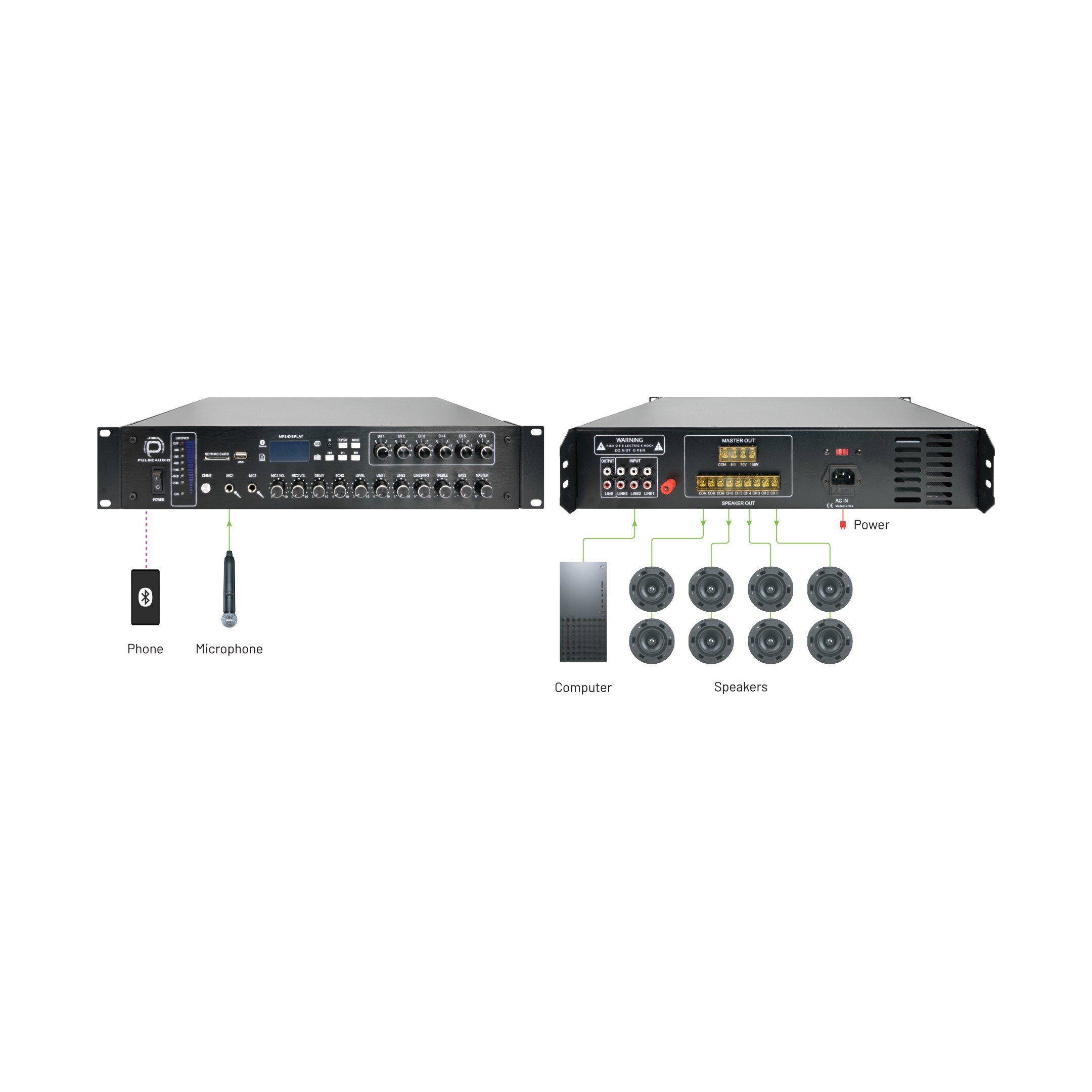

  • Connection diagram for the PA6X 6-channel commercial amplifier.

120/240W, 6-Channel Commercial Amplifier

Coming Soon

6-channel commercial amplifiers with 8ohm and 70/100V outputs, 2 mic inputs, 3 RCA inputs, Bluetooth, USB/SD playback, and an FM tuner, all in a 2U rack mount design.

Description

The PA6X series of 6-channel commercial amplifiers are designed for versatile audio distribution in retail, hospitality, and office environments. Supporting both 8ohm and 70/100V speaker systems, it offers flexible installation options to suit a wide range of projects. With inputs for two microphones, multiple line sources, Bluetooth connectivity, USB flash drives, SD/MMC memory cards, and a FM radio tuner, it delivers convenient playback and seamless mixing capabilities. Available with 120W or 240W total power output, these amplifiers provide reliable performance and a clear, balanced sound for any commercial setting.

Key features:

  • Compatible with 4/8/16ohm and 70/100V speaker systems
  • 120/240W total power or 20/40W per channel
  • Multi-zone control to independently manage audio in 6 distinct zones
  • Front panel dials control for all functions
  • Rack mounting ears and hardware included

Audio inputs:

  • (2) 1/4” microphone inputs
  • (3) Stereo RCA inputs
  • (1) USB flash drive
  • (1) SD/MMC memory card
  • (1) FM radio tuner
  • Bluetooth 5.0 connectivity

PA6X120 measurements:

  • Weight: 18lbs (8.2kg)
  • Dimensions (W x D x H): 19in x 14.75in x 3.5in (480mm x 375mm x 88mm)

PA6X240 measurements:

  • Weight: 21lbs (9.5kg)
  • Dimensions (W x D x H): 19in x 14.75in x 3.5in (480mm x 375mm x 88mm)

Box contents:

  • (1) PA6X120/240 amplifier
  • (1) Set of rack mounting ears and hardware
  • (1) FM tuner antenna
  • (1) Remote control
  • (1) Quick start guide

Additional information

Brands

PulseAudio

Watts

120W, 240W
