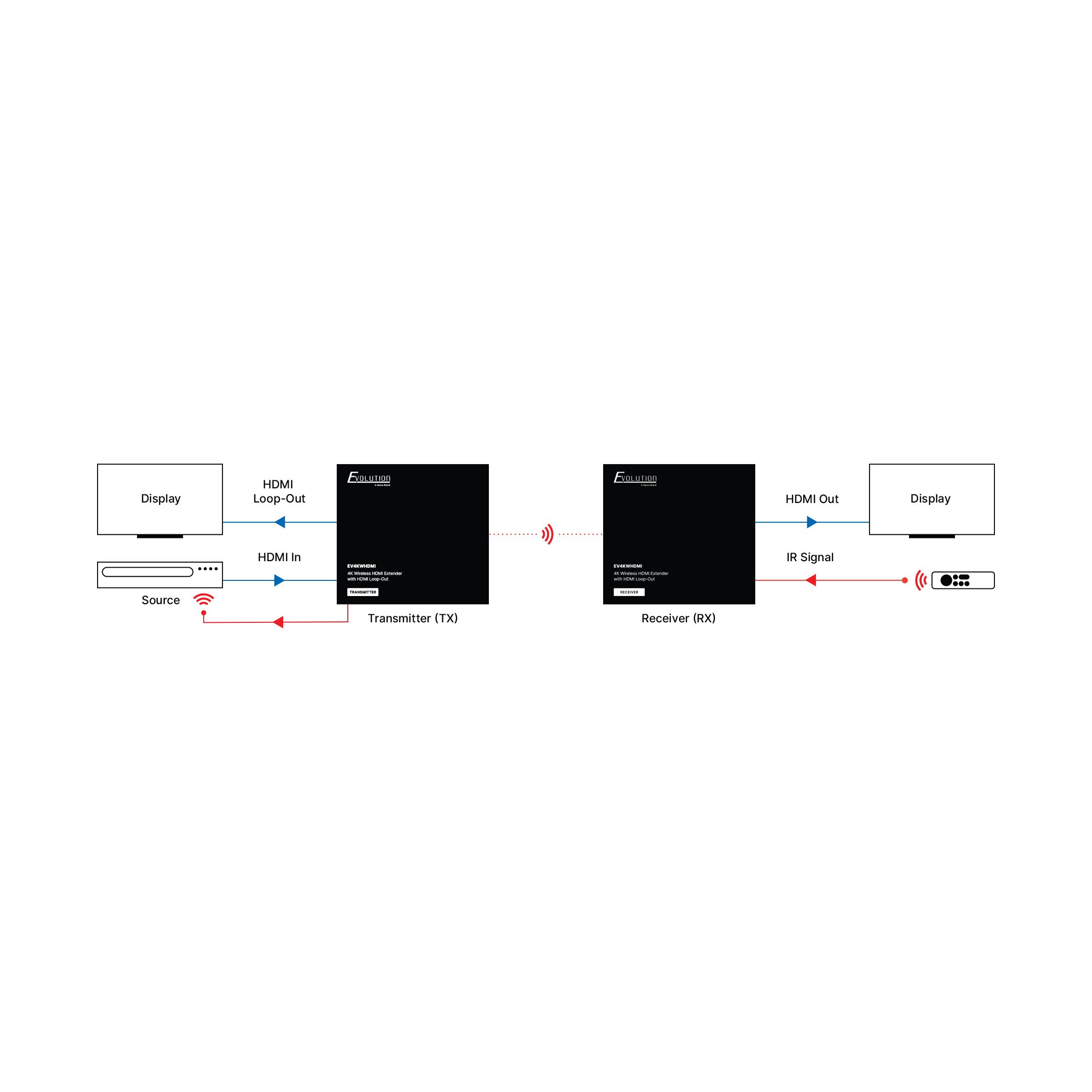

The Evolution by Vanco EV4KWHDMI Wireless HDMI Extender with IR, extends 4K ultra-high definition video and audio signals up to 164ft/50m wirelessly. Directional IR allows for the source to be controlled wirelessly at the display location. Features an HDMI loop-out, where an additional local display can be connected. With no line of sight required, the wireless signal can travel through floors and walls. If a WiFi signal can reach it, the EV4KWHDMI can.
Key features:
- Supports up to 4K@60Hz resolution
- Wireless transmission up to 164ft/50m (line of sight) of low-latency UHD signals
- HDMI loop-out to connect an additional local display
- HDCP 2.2/1.4 compliant
- Supports LPCM 2.0ch 32KHz/44.1KHz/48KHz Audio Formats
- SSID pairing and channel switching to avoid interference
- IR pass-through to control the source at the display location wirelessly
Measurements:
- TX weight: 0.78lbs (353g)
- TX dimensions 4.5in x 4.9in x 0.8in (115mm x 125mm x 20.6mm)
- RX weight: 0.77lbs (346g)
- RX dimensions: 4.5in x 4.9in x 0.8in (115mm x 125mm x 20.6mm)
Package contents:
- (1) Transmitter unit (TX)
- (1) Receiver unit (RX)
- (2) 5V/2A power adapter
- (1) IR receiver extension cable
- (1) IR blaster extension cable
- (4) Antennas
- (4) Mounting ears
- (10) Screws
- (2) Grounding screws
- (1) Quick start guide
