100 Watt Single Channel Amplifier

SKU: PAV1100 Categories: ,


  • Mono audio output at 100W
  • Switchable between 70V and 100V
  • Sixteen ID codes for controlling multiple PAV1100 amplifiers in a system
  • 3-level MIC input, supports condenser microphone, dynamic microphone and wireless microphone, with ducking or mixing function
  • MIC input supports balanced/unbalanced signal, and suppresses external noise effectively
  • One 2-channel analog audio inputs and one digital audio input, switchable by button, IR remote & RS232

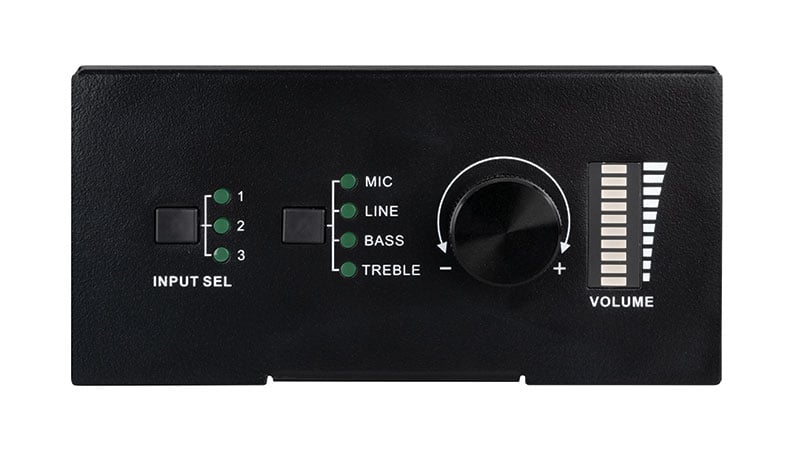

  • Manual volume control
  • Bass/Treble controllable via front panel, IR remote & RS232
  • Convection cooled, no external fan needed
  • LED indicator, for power and working status
  • Anti-static case design provides good protection for long-term and stable performance

Package Contents:
PAV1100 Amplifier
(2) Mounting ears with included screws
(4) Plastic feet
(2) Pluggable terminal blocks
(1) RS-232 cable
(1) DC 24V 5A power adapter
Product Manual

Additional information



PAV1100 Product Manual


PAV1100 Sales Sheet
