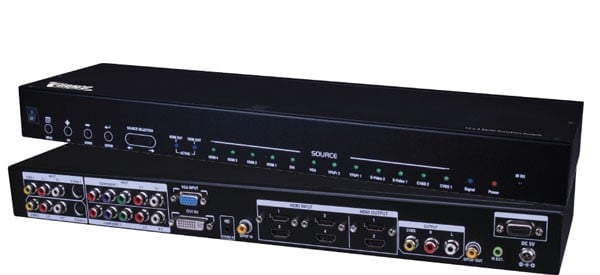

12×3 Multi-Function Switch/Scaler

SKU: 280595 Categories: ,

Description



View Our HDMI Cable Comparison Guide

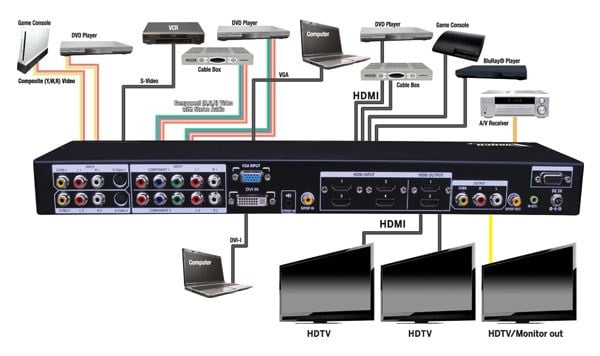

  • Allows the conversion of up to 12 multi-format inputs to 2 mirroring HDMI outputs and 1 Composite output
  • Upscales standard definition/high definition sources to resolutions up to 720p or 1080p- with both HDMI outputs working simultaneously along choice of composite output – some VESA formats can be bypassed by using VGA and DVI-I ports
  • Buffers- amplifies and equalizes the signal to ensure optimum transmission and reception over the length of the cable run without any loss in video/audio quality

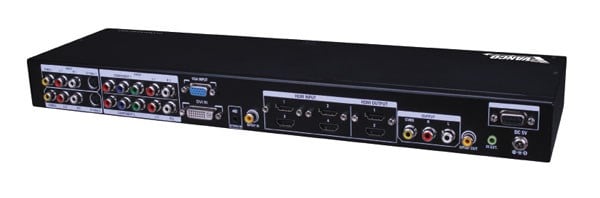

  • Inputs supported include:
    • 1 x VGA source
    • 2 x S-Video source
    • 2 x Composite AV sources with LR audio
    • 2 x Component sources with LR audio
    • 4 x HDMI sources
    • 1 x DVI-I source
    • Stereo input for audio
    • S/PDIF input for digital audio
  • HDMI Outputs feature bypass from either stereo input or S/PDIF input
  • Features noise reduction and video enhancements when upscaling to 720p/1080p
  • DVI-I supports both analog and digital formats with L/R and/or S/PDIF audio input
  • Detached audio output by L/R and optical
  • Delivers uncompressed digital video with zero signal loss
  • Supports high definition resolutions up to 1080p

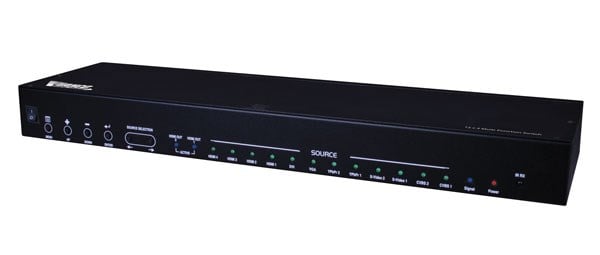

  • Dual switching option: IR control with included remote and manual front panel control
  • IR receiver included for IR extension
  • Serial port for firmware update
  • Power Supply: 5V 4A DC- UL Listed
  • Dimensions: 17.25” (438.15mm) W x 1.75” (44.45mm) H x 4.75” (120.65mm) D

Package Contents:

280595
IR Receiver (RX)
(1) IR remote, 28 Key
(1) DC 5V, 2A power supply
(1) Installation software CD
Product Manual

Additional information

Weight 5.1 lbs
Dimensions 20 × 9 × 3 in
Type

Inputs/Outputs

3×1

Brands

Vanco

Resolution

Full HD 1080p

280595 Product Manual

Download

280595 Software

Download

280595 RS232 Serial Commands

Download
