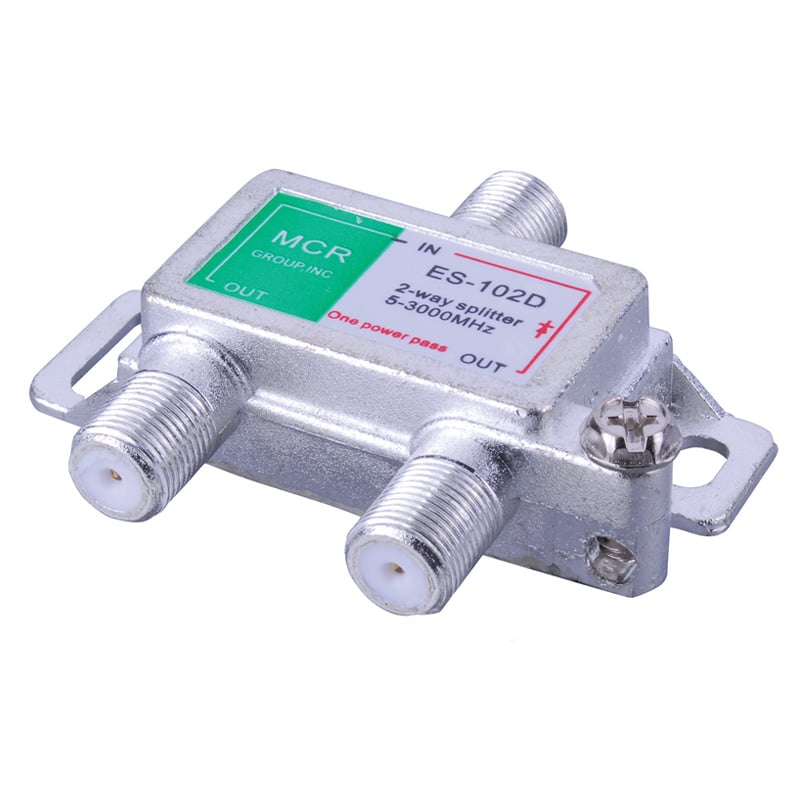

2-Way 3 GHz Digital Satellite Splitter

Clear

Description

  • Ideal for Use with Digital Satellite Systems or Amplified Outdoor Antenna
  • 2-Way- 3 GHz- -130 dB- 5-3000 MHz
  • Diode Steered
  • Power Passive to One (1) Port
  • Grounding Block Built-In
  • -130 dB Min RFI Shielding
  • High Performance Printed-Board Circuitry
  • Anti-Corrosion Chromate Zinc-Alloy
    Die-Cast Housing
  • Solder Sealed Back Cover
  • Terminals are Standard “F” 75 Ohm Connectors
  • Mounting Tabs and Screws Included



  • Specifications:
  • Frequency Range: 5 – 3000 MHz
  • Insertion Loss: 4.0 – 7.8 dB Maximum
  • Input Return Loss: 12.5 – 25.5dB Minimum
  • Port-Port Isolation: 16 – 21 dB Minimum
