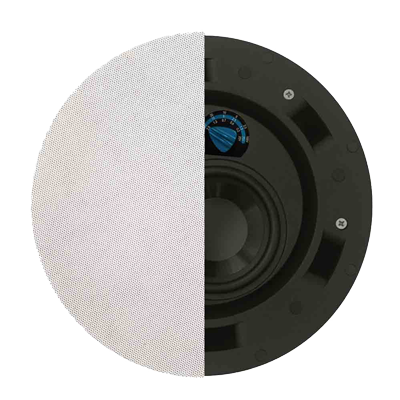

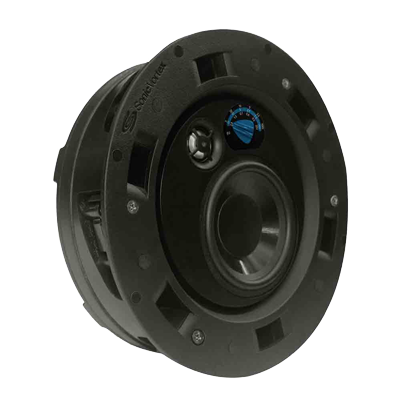

4″ 70/100V Speaker

SKU: TU401 Categories: , ,

Description

  • Speaker Type – In Ceiling/In Wall 2-Way
  • Woofer – 4″ Fluted Injected Poly
  • Tweeter – 3/4″ Aluminum Dome
  • Frequency – 62 Hz – 24 kHz
  • Sensitivity – 88db
  • Butyl Rubber Surround
  • Sonic Vortex® Ported Transmission Line
  • Magnetic Bezelless Grille – White; paintable
  • Low Impedance – 8Ω
  • 25V Taps – 0.2, 0.3, 0.5, 0.9, 1.8 Watts
  • 70V Taps – 1, 1.9, 3.8, 7.5, 15 Watts
  • 100V Taps – 1.9, 3.8, 7.5, 15 Watts
  • Connector Type – Four position plug-in screw terminal
  • Power Handling – In 8Ω Mode 5-80W
  • Speaker Weight – 2.93 lbs (1.33kg)
  • Cutout – 8.4″ (162mm)
  • Diameter – 9.5″ (241.4mm)
  • Depth – 2.76″ (70.2m)
  • EZBracket Size – F
  • Highlights – 25/70/100 Volt Switchable – Ultra Shallow Depth Pancake Less Than 3” (70mm)
  • B = Better
  • MB = More Better
  • BB = Better than their Best
  • We have a Good, Better Best formula in our model hierarchy. However, the “B” in our model number designates “Better” since we believe that our “Good” is better than the competitions “Good”. So, we start with Better and have some fun with the other suffixes.

Additional information

Type

Size

TU401 Product Manual

Download

This Attachment Never Expires.

TU401 Sales Sheet

Download

This Attachment Never Expires.
