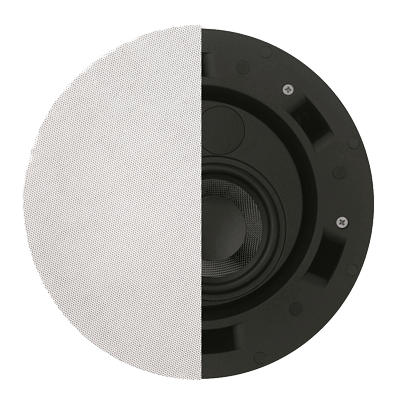

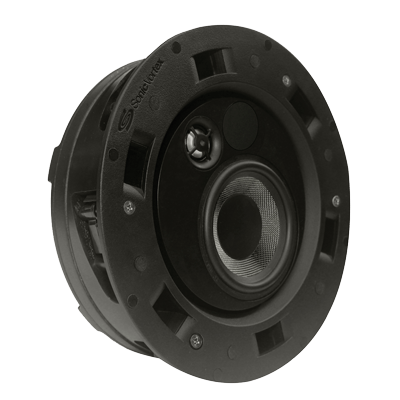

4″ Pancake Speaker: P4-BB

Description

  • Speaker Type – In Ceiling/In Wall 2-Way
  • Woofer – 4″ Carbon Fiber
  • Tweeter – 3/4″ Titanium Dome
  • Frequency – 59 Hz – 25 kHz
  • Sensitivity – 88db
  • Butyl Rubber Surround
  • Sonic Vortex® Ported Transmission Line
  • Magnetic Bezelless Grille – White; paintable
  • Impedance – 8Ω
  • Connector Type – Gold Spring Push Terminal
  • Depth – 2.76″ (70.2mm)
  • Speaker Weight – 2.62 lbs (1.19kg)
  • Cutout – 8.4″ (214mm)
  • Diameter – 9.5″ (241.4mm)
  • Frequency/Crossover Setting – Full range only
  • Power Handling – 5-80W
  • EZBracket Size – F
  • Highlights – Ultra Shallow Depth Pancake Less than 3″ Depth (70mm)
  • Includes round and square grills
  • B = Better
  • MB = More Better
  • BB = Better than their Best
  • We have a Good, Better Best formula in our model hierarchy. However, the “B” in our model number designates “Better” since we believe that our “Good” is better than the competitions “Good”. So, we start with Better and have some fun with the other suffixes.





Additional information

Weight 4.8 lbs
Dimensions 11 × 11 × 4.25 in
