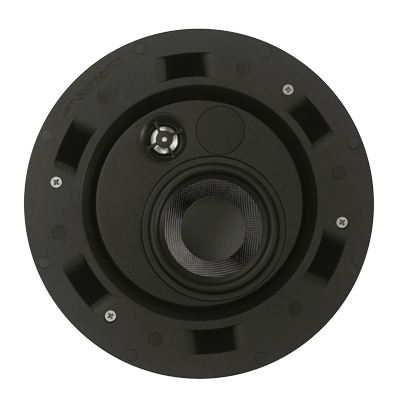

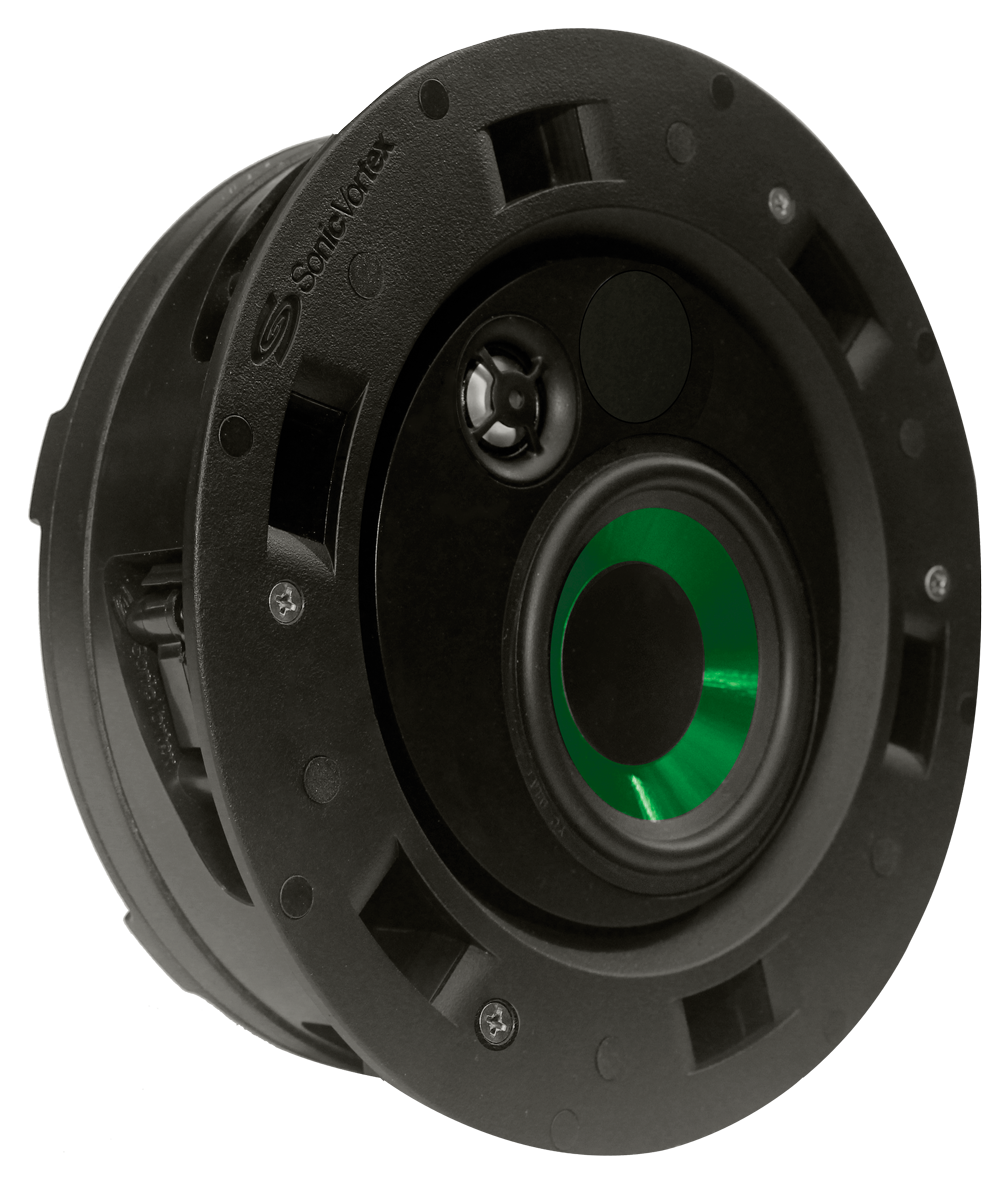

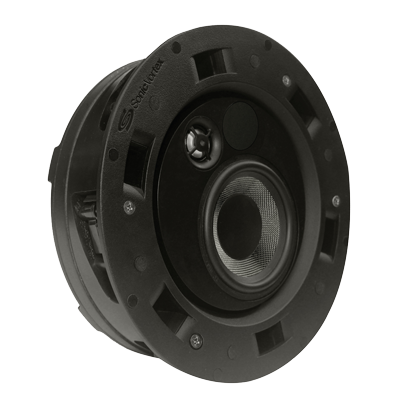

4″ Pancake Speaker: P4-MB

Description

  • Speaker Type – In Ceiling/In Wall 2-Way
  • Woofer – 4″ Fluted Injected Poly
  • Tweeter – 3/4″ Aluminum Dome
  • Frequency – 62 Hz – 24 kHz
  • Sensitivity – 88db
  • Butyl Rubber Surround
  • Sonic Vortex Ported Transmission Line
  • Magnetic Bezelless Grille – White; paintable
  • Impedance – 8
  • Connector Type – Gold Spring Push Terminal
  • Depth – 2.76″ (70.2mm)
  • Speaker Weight – 2.62 lbs (1.19kg)
  • Cutout – 8.4″ (214mm)
  • Diameter – 9.5″ (241.4mm)
  • Frequency/Crossover Setting – Full range only
  • Power Handling – 5-80W
  • EZBracket Size – F
  • Highlights – Ultra Shallow Depth Pancake Less than 3″ Depth (70mm)

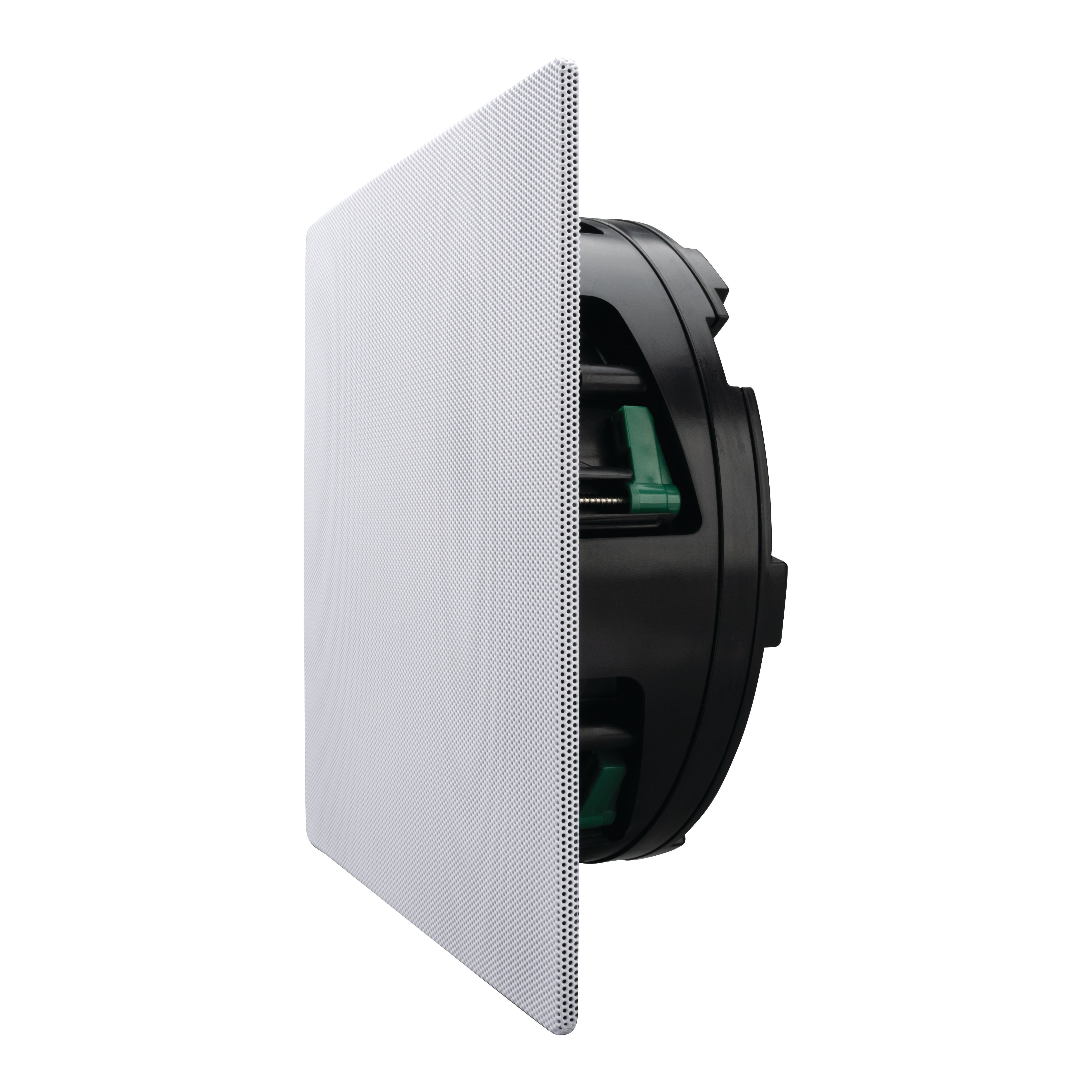

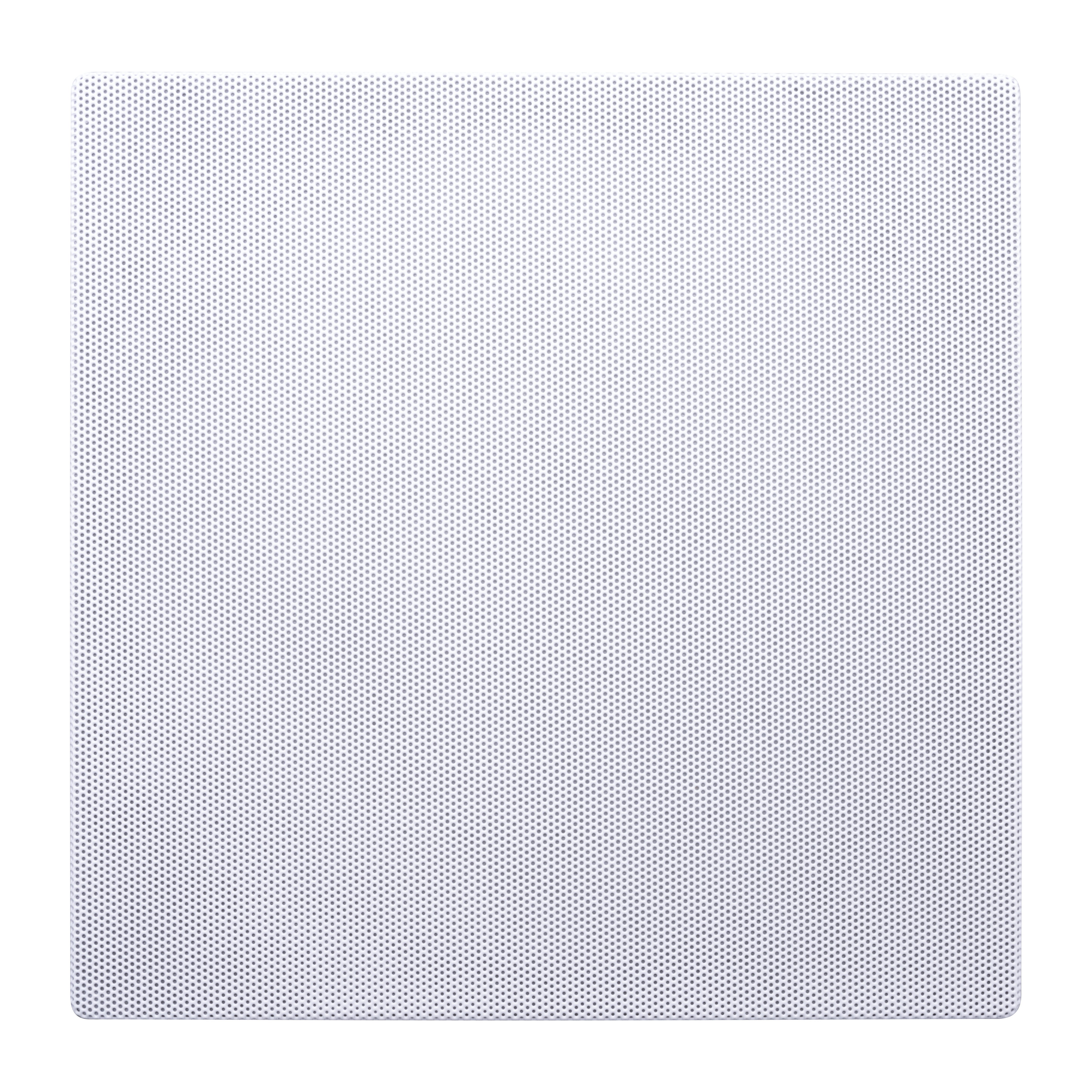

  • Includes round and square grills
  • B = Better
  • MB = More Better
  • BB = Better than their Best
  • We have a Good, Better Best formula in our model hierarchy. However, the “B” in our model number designates “Better” since we believe that our “Good” is better than the competitions “Good”. So, we start with Better and have some fun with the other suffixes.





Additional information

Weight 4.8 lbs
Dimensions 11 × 11 × 4.25 in
Brands

Beale Street

Size

Woofer

Carbon Fiber, Fluted Injected Poly

Tweeter

3/4" Titanium Dome, 3/4" Aluminum Dome

Frequency

59 Hz – 25 kHz, 62 Hz – 24kHz

P4-MB Product Manual

Download

P4-MB Sales Sheet

Download
Find a Distributor
