4 Zone VGA+Audio over Cat5e/Cat6 Distribution System

SKU: 280547 Categories: , ,
Clear

Description



Allows VGA and Audio Signals to be Transmitted from the Distribution Hub to up to 4 receivers over single Cat5e or Cat6 cables

  • Transmission Range up to 1000 ft.
  • 350 MHz signal transmission bandwidth

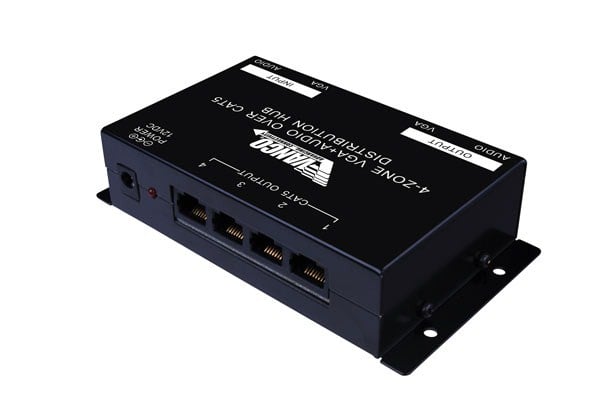

  • Includes distribution hub and one receiver
  • Additional VGA + Audio over Cat5e Receivers can be purchased separately – Vanco Part Number 280548

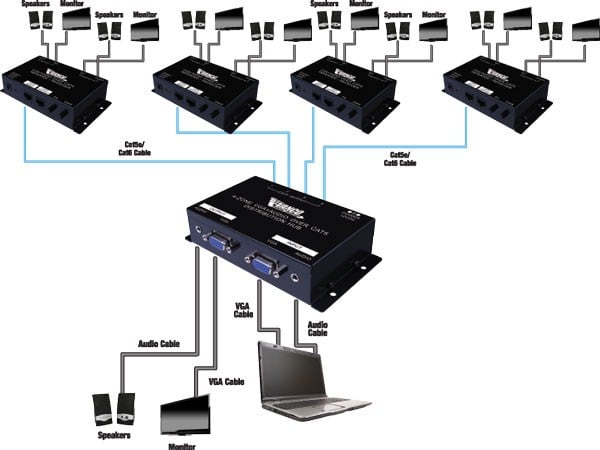

  • Output allows for one display with audio at origin location and up to 4 additional display device with audio in a remote location

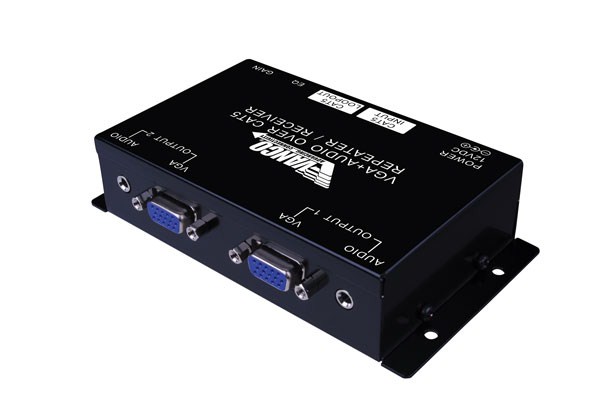

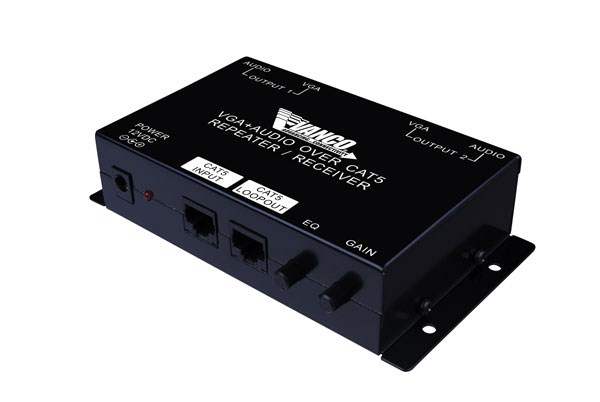

  • Receiver features Dual VGA outputs and a single Cat5e/Cat6 output for cascading to up to 3 additional units
  • Receiver features adjustable EQ and GAIN controls
  • Supports computer resolutions UXGA (1600×1200) SXGA (1280×1024)- XGA (1024×768)- SVGA (800×600) and VGA (640×480)
  • Supports up to 100 meters (330 ft) with resolution 1200×1600
  • Supports up to 120 meters (396 ft) with resolution 1280×1024
  • Supports up to 180 meters (594 ft) with resolution 1024×768
  • Supports up to 200 meters (660 ft) with resolution 800×600
  • Supports up to 300 meters (1000 ft) with resolution 640×480
  • Power Supply: (2) 12V DC- UL Listed
  • Distribution Hub Dimensions: 5.31″ W x 1.25″H x 3.13″D
  • Receiver Dimensions: 5.31″ W x 1.25″H x 3.13″D

Additional information

Type

Resolution

1200 x 1600

Technology

1 CAT

Transmission Distance

> 500 ft
