4K 1×4 HDMI Splitter over Cat6 Cable with HDMI Loop-out

SKU: EV4K7014 Categories: , , ,

Description

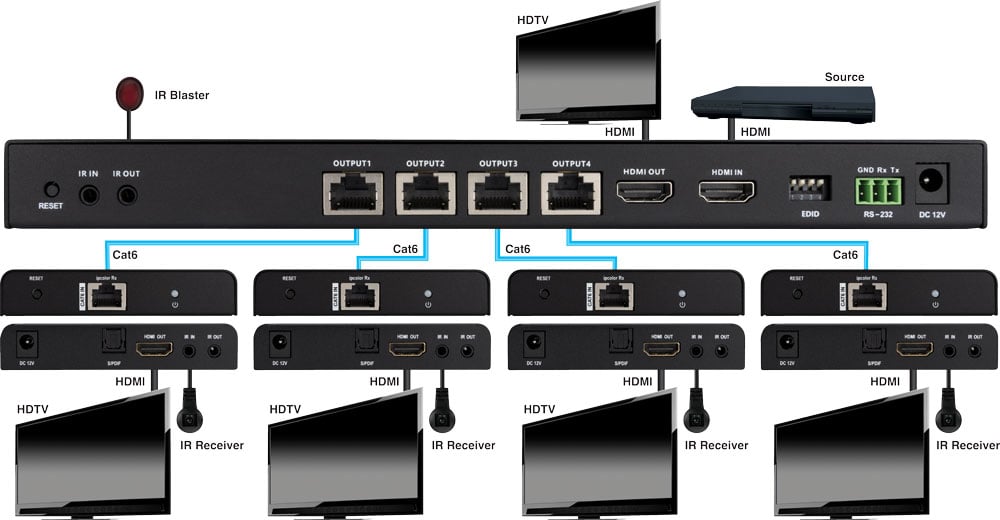

  • Allows a single source to be split and extended to multiple displays
  • Complete kit with (4) PoE Receivers included
  • Features an additional HDMI output which can be used for a local display or to cascade to another splitter for a larger distribution system
  • Transmission Range: Extends [email protected], 4:4:4 Chroma with HDR10 and IR up to 230ft/70m and 1080p up to 330ft/100m over a single Cat6 cable

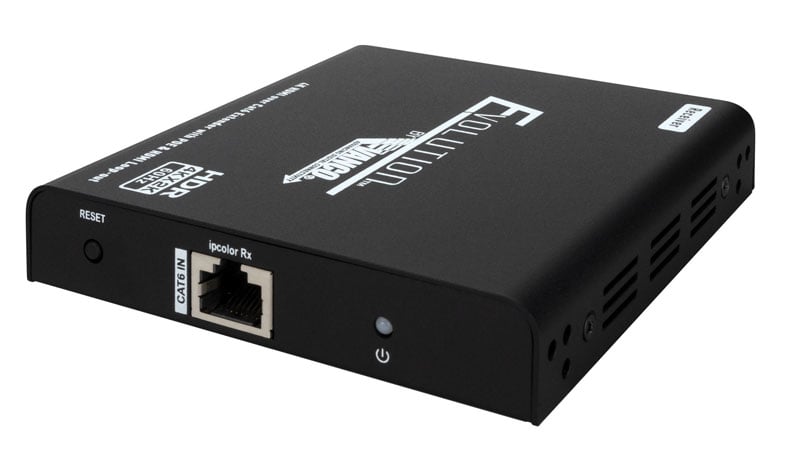

  • Features Power over Ethernet (PoE) Technology which transmits power over Cat6, allowing the receivers to be powered without connecting a power supply
  • Latency under 30ms
  • Supports bi-directional IR (20~60kHz) for source or display control
  • IR accessories included allowing for source control from each UTP display location
  • Features auto and manual EDID options for compatibility with source and displays

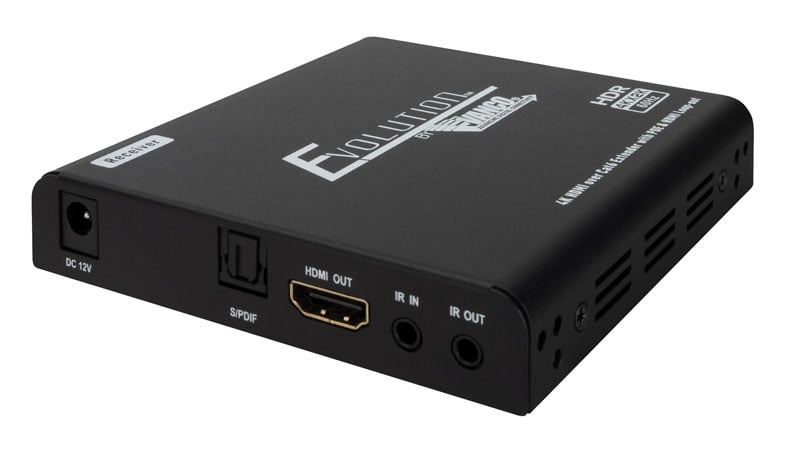

  • Digital audio breakout on the receivers for source audio extraction
  • HDCP 1.4/2.2 compliant
  • Slim and compact design

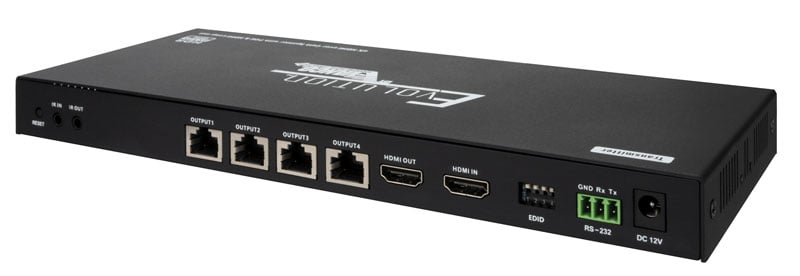

  • RS232 control of splitter
  • Pure uncompressed 7.1 ch digital audio
  • Supports DTS-HD and Dolby TrueHD high bit rate audio

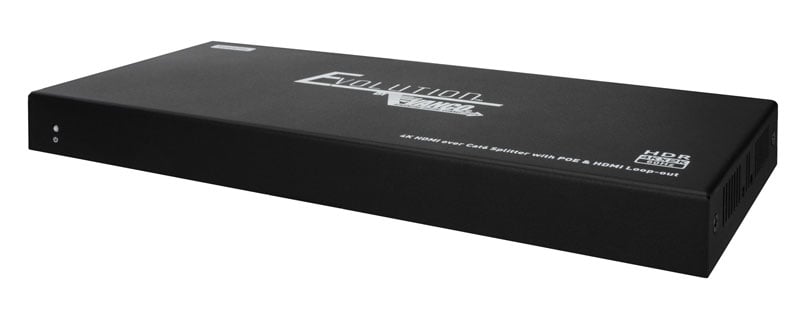

  • Splitter Dimensions: 14.3” L x 4.09 W x 0.9” H (264.40mm L x 104 mm W x 23.85mm H)
  • Receiver Dimensions: 4.17” L x 3.8” W x 0.75” H (106 mm L x 99mm W x 19.20mm H)



Package Contents:
(1) EV4K7014 1×4 Splitter
(4) EV4K7014 PoE Receivers
(1) IR Blaster
(4) IR Receivers (display)
(1) 3-pin terminal block (phoenix connector)
(1) 12V/3A power supply
(1) Set of mounting hardware and screws
(1) Product Manual
