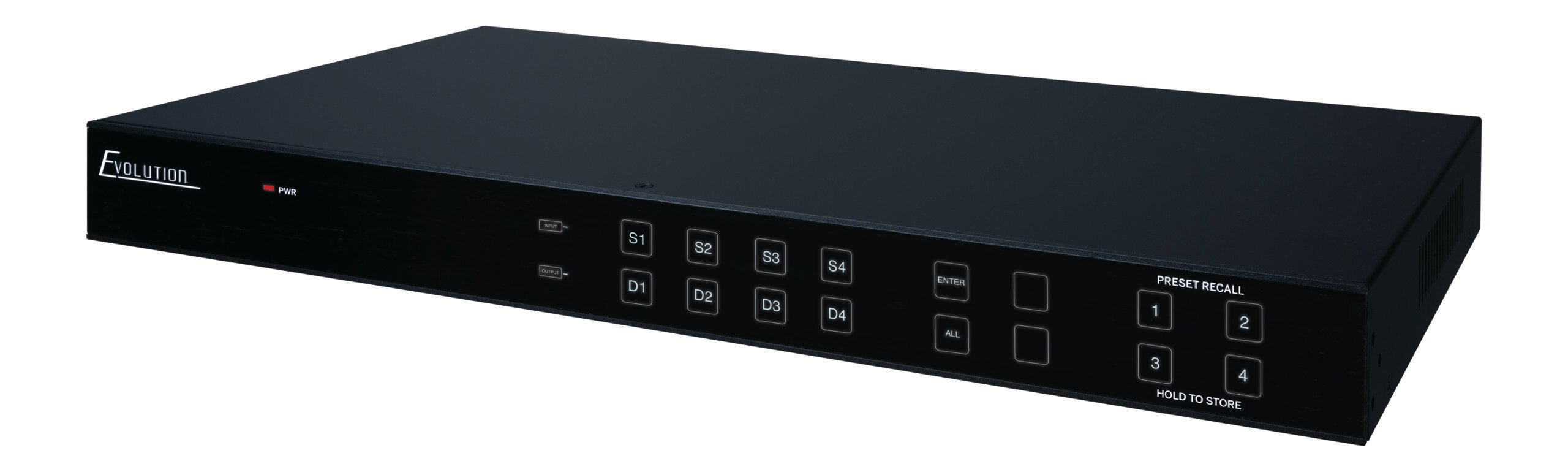

4K HDBaseT 4×3 Matrix with HDMI Output, IR, IP and RS-232

SKU: EVMX4X3 Categories: ,


View Our Comparison Guide

  • 4K 4×3 HDBaseT Matrix that accommodates 3 HDBaseT outputs and 1 HDMI output
  • Extends 4K@60Hz 4:4:4, and HDR10 up to 131ft/40m over a single Cat6 cable
  • Outputs 4K@60Hz 4:4:4, HDR10 and Dolby Vision on the HDMI inputs and output
  • Extends 1080p resolution up to 230ft/70m over a single Cat6 cable
  • PoC receivers sold separate (EVRXHD2 and EVRXDSC)
  • Features POC (Power over Cable) technology – providing power for the receivers resulting in easy installation
  • HDCP 2.2 compliant
  • Digital and analog audio breakouts for the HDMI output
  • Built-in EDID management and advanced HDCP handling
  • Controllable via front panel, IR, RS-232 and third party control systems, as well as a built in GUI via IP connection
  • Features bi-directional IR and RS-232 for source and/or display control
  • Includes EV-IRMST IR integration cable for seamless integration with 3rd Party IR Systems
  • Dimensions: 17.2” W x 1.7” H x 9.3” D

Additional information



EVMX4X3 Product Manual


EVMX4X3 Sales Sheet


EVMX4X3 IP and Serial Commands


EVMX4X3 IR Hex Commands


EVMX4X3 Control 4 Driver


EVMX4X3 Elan Driver


EVMX4X3 RTI Driver


EVMX4X3 Serial Command Routing
