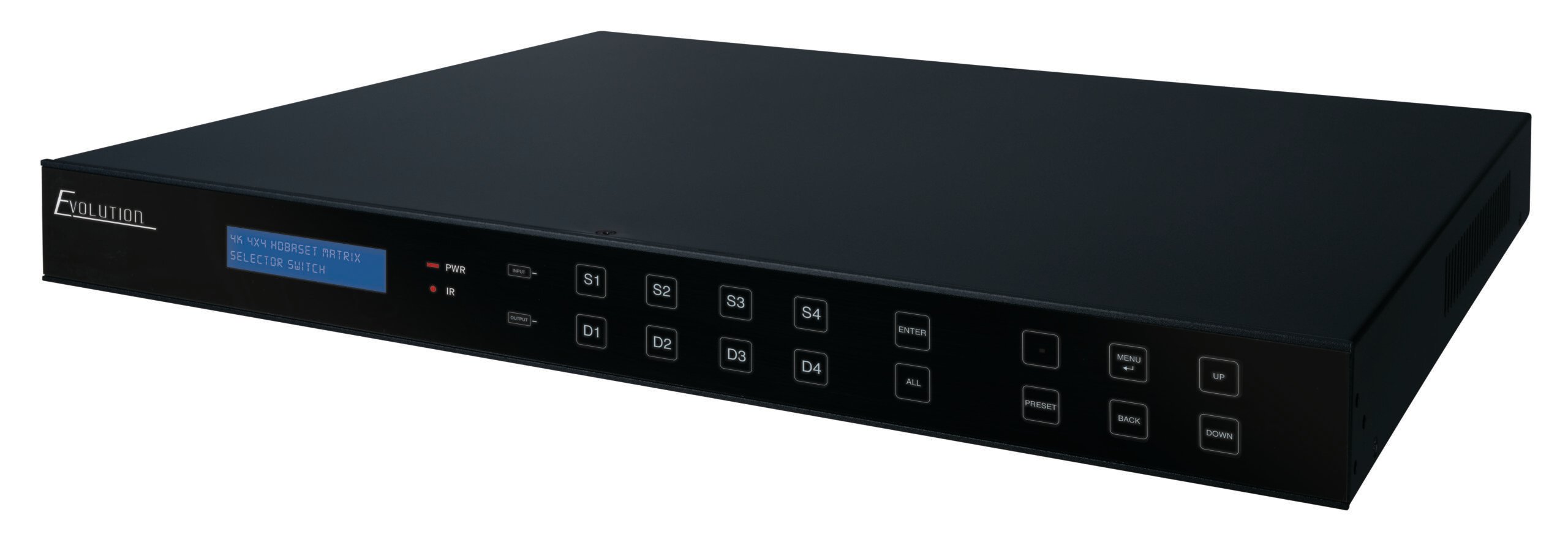

4K HDBaseT 4×4 Matrix with ARC, IR, IP and RS-232


View Our Comparison Guide

  • 4K 4×4 HDBaseT Matrix with mirrored HDMI outputs
  • Extends [email protected] 4:4:4, and HDR10 up to 131ft/40m over a single Cat6 cable
  • Outputs [email protected] 4:4:4, HDR10 and Dolby Vision on the HDMI inputs and HDMI outputs
  • Extends 1080p resolution up to 230ft/70m over a single Cat6 cable
  • HDCP 2.2 compliant
  • Two receiver options that are sold separately (EVRXHD2 and EVRXDSC) based on features required
  • Features POC (Power over Cable) technology – providing power for either receiver option
  • Downscales 4K to 1080p on all HDMI outputs as well as HDBaseT outputs using EVRXDSC receiver
  • ARC (Audio Return Channel) capable with EVRXDSC receiver
  • Includes built-in audio matrix with digital and analog audio outputs for up to 4 zones
  • Built-in EDID management and advanced HDCP handling
  • Controllable via front panel, IR, RS-232 and third party control systems, as well as a built in GUI via IP connection
  • Features IR, IP and RS-232 for control
  • Includes EV-IRMST IR integration cable for seamless integration with 3rd Party IR Systems
  • Dimensions: 17.2” W x 1.7” H x 14” D

Additional information



EVMX44PRO Product Manual


EVMX44PRO Sales Sheet


EVMX44PRO IP and Serial Commands


EVMX44PRO IR Hex Commands


EVMX44PRO Control 4 Driver


EVMX44PRO Elan Driver
