4K HDBaseT 8×6 Matrix with 2 HDMI Outputs, IR, IP and RS-232

SKU: EVMX8X6 Category:

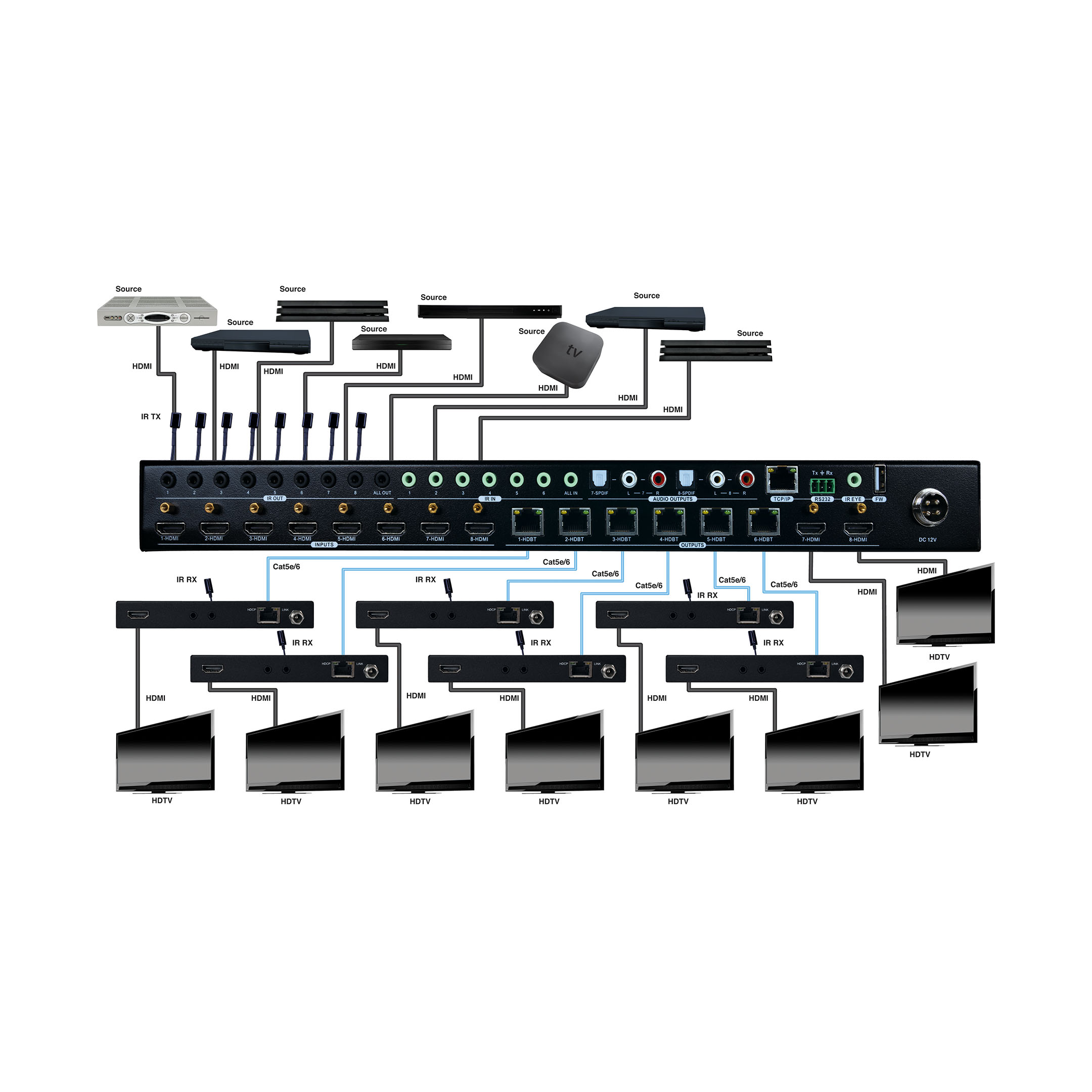

  • 4K 8×6 HDBaseT Matrix that accommodates 6 HDBaseT outputs and 2 HDMI outputs
  • Extends [email protected] 4:4:4, and HDR10 up to 131ft/40m over a single Cat6 cable
  • Outputs [email protected] 4:4:4, HDR10 and Dolby Vision on the HDMI inputs and outputs
  • Extends 1080p resolution up to 230ft/70m over a single Cat6 cable
  • PoC receivers sold separate (EVRXHD2 and EVRXDSC)
  • Features POC (Power over Cable) technology – providing power for the receivers resulting in easy installation
  • HDCP 2.2 compliant
  • Digital and analog audio breakouts for the HDMI outputs
  • Built-in EDID management and advanced HDCP handling
  • Controllable via front panel, IR, RS-232 and third party control systems, as well as a built in GUI via IP connection
  • Features bi-directional IR and RS-232 for source and/or display control
  • Includes EV-IRMST IR integration cable for seamless integration with 3rd Party IR Systems
  • Dimensions: 17.2” W x 1.7” H x 15” D
