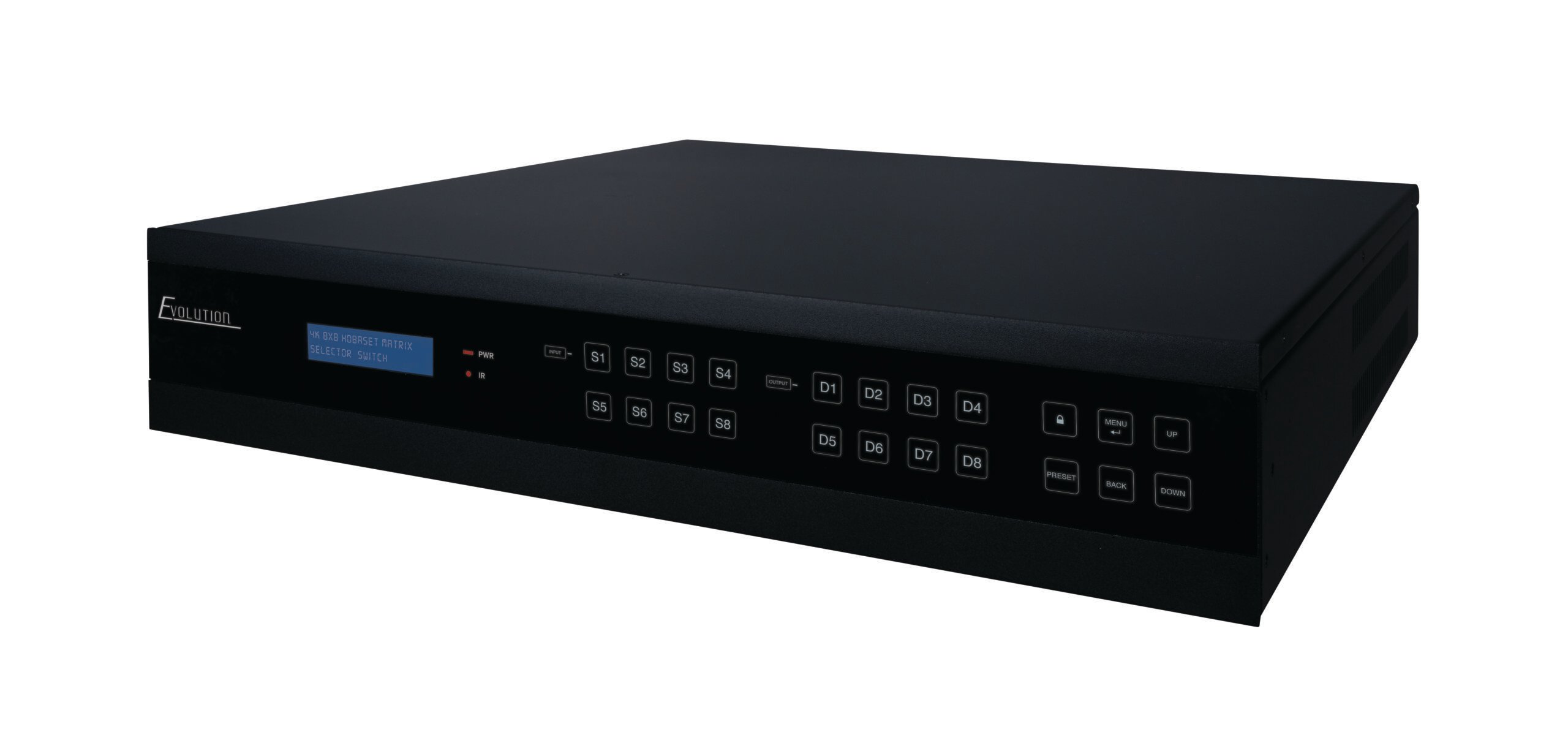

4K HDBaseT 8×8 Matrix with ARC, IR, IP and RS-232

Description

View Our Comparison Guide

  • 4K 8×8 HDBaseT Matrix with mirrored HDMI outputs
  • Extends [email protected] 4:4:4, and HDR10 up to 131ft/40m over a single Cat6 cable
  • Outputs [email protected] 4:4:4, HDR10 and Dolby Vision on the HDMI inputs and HDMI outputs
  • Extends 1080p resolution up to 230ft/70m over a single Cat6 cable
  • HDCP 2.2 compliant
  • Two receiver options that are sold separately (EVRXHD2 and EVRXDSC) based on features required
  • Features POC (Power over Cable) technology – providing power for either receiver option
  • Downscales 4K to 1080p on all HDMI outputs as well as HDBaseT outputs using EVRXDSC receiver
  • ARC (Audio Return Channel) capable with EVRXDSC receiver
  • Includes built-in audio matrix with digital and analog audio outputs for up to 8 zones
  • Built-in EDID management and advanced HDCP handling
  • Controllable via front panel, IR, RS-232 and third party control systems, as well as a built in GUI via IP connection
  • Features IR, IP and RS-232 for control
  • Includes EV-IRMST IR integration cable for seamless integration with 3rd Party IR Systems
  • Dimensions: 17.2” W x 3.5” H x 17.3” D

Additional information

Brands

Evolution

EVMX88PRO Product Manual

Download

EXMX88PRO Sales Sheet

Download

EVMX88PRO IP and Serial Commands

Download

EVMX88PRO IR Hex Commands

Download

EVMX88PRO Beta RTI Driver

Download

EVMX88PRO Beta Control 4 Driver

Download

EVMX88PRO Beta Elan Driver

Download
