Description
- Transmits audio and video via HDMI as well as complete KVM (Keyboard, Video, Mouse) functionality via USB 2.0 ports over a single Cat5e/6 up to 230ft/70m with PoC

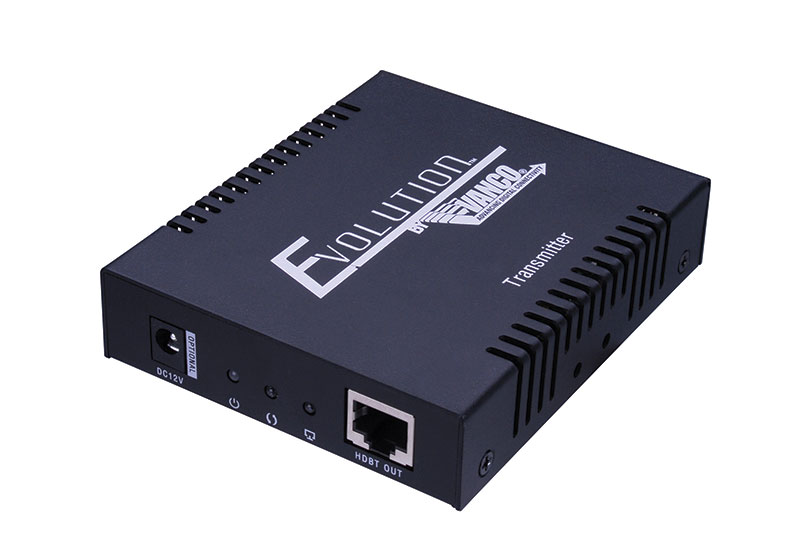

- Power Over Cable (PoC), integrates power into the Cat5e/6 cable, requiring no power supply for either the Transmitting unit or Receiving unit (opposite of unit that is plugged in to power)
- Auto EDID management automatically adjusts to overcome compatibility issues
- Auto EQ distance for perfect transmission and reception of HDMI signals
- Supports up to 3840 x 2160 @ 60Hz resolutions
- HDR10 Compatible
- Supports LPCM, DTS and Dolby Digital Audio Formats
- Transmission Range: Extends 4K HDMI signals up to 230ft/70m over a single Cat5e or Cat6 cable
- Extends USB 2.0 high speed at 480Mbps to 230ft/70m

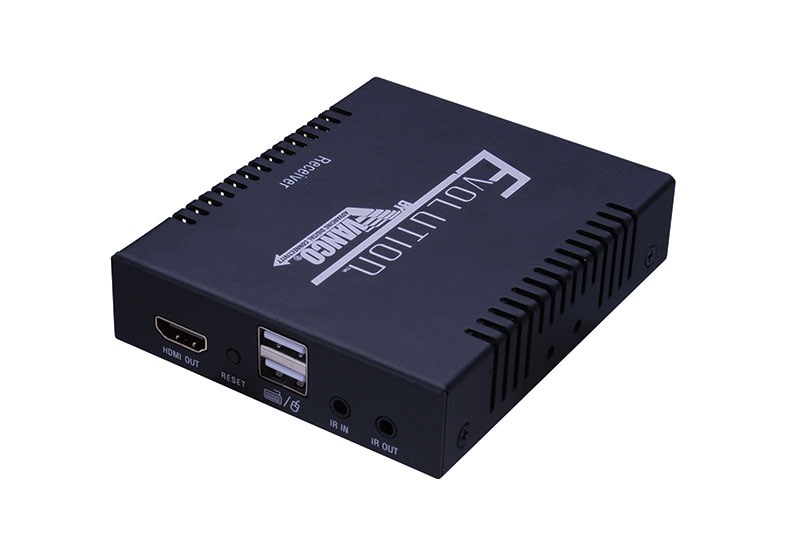

- RX unit provides 2 USB 2.0 high speed ports at display end

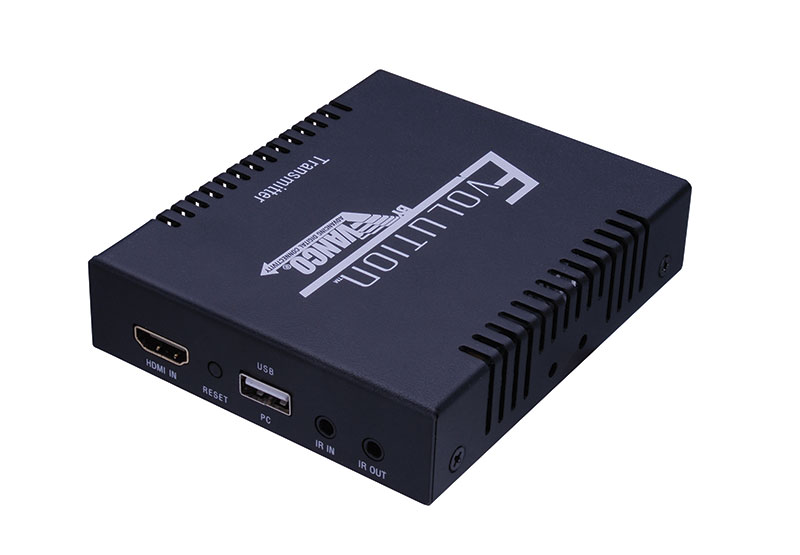

- TX unit provides a single USB port for connection to computers and other devices
- USB ports allow for charging of connected USB devices (please use properly certified and licensed cabling with utilizing the charging feature)
- Bi-Directional Wide Band IR 20-60kHz
- HDBaseT 2.0 with CEC Support
- Compatible HDMI 2.0*/DVI 1.0
- HDCP 2.2/1.4
- Dimensions: 4.1” W x .8” H x 3.4” D
Package Contents:
EVEXKVM2 (TX & RX)
(2) IR Transmitters (IR TX)
(2) IR Receivers (IR RX)
USB Cable (Type A)
(1) DC 12V/2A power supply
Product Manual
