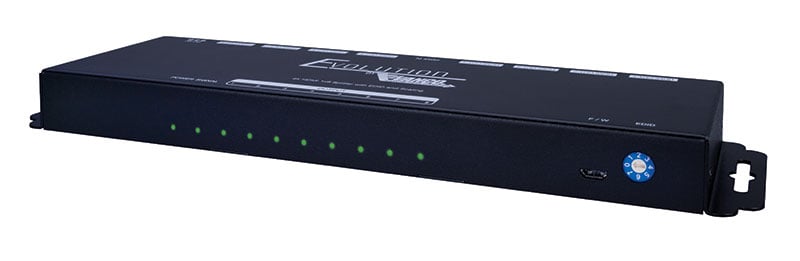

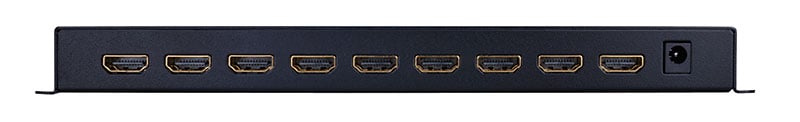

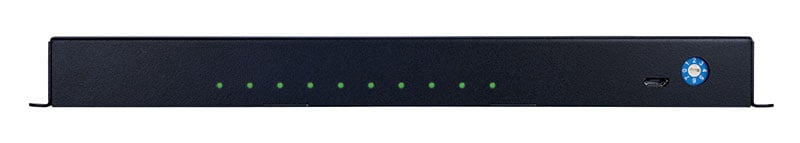

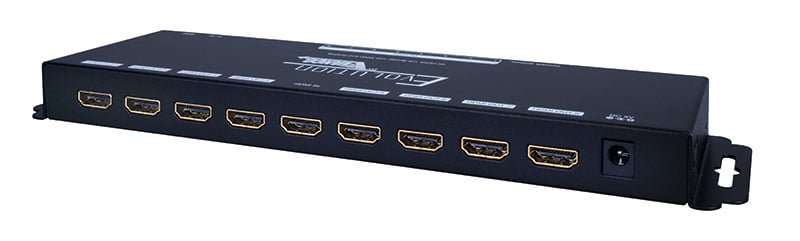

4K HDMI® 1×8 Spiltter with EDID and Scaling

SKU: EVSP18SC Categories: , ,

Description

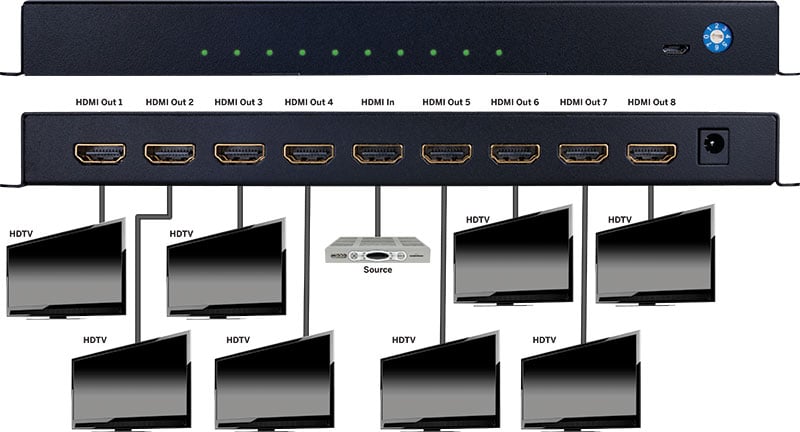

  • Transmits audio and video from a single source to 8 HDMI outputs up to 4K2K (2160p) Ultra High Definition resolution without any loss of quality or resolution
  • Supports 4K and 1080p resolutions simultaneously; downscales to 1080p for lower resolution displays while maintaining 4K on other outputs
  • Supports up to [email protected] with 8 bit color, and 4:4:4 color sampling
  • Supports up to [email protected] with 10 bit color, and 4:2:0 color sampling and HDR
  • HDCP 2.2 and 1.4 compliant
  • Wide frequency range: 25MHz~600MHz
  • High bandwidth:18Gbps
  • Features EDID management
  • Micro-USB firmware update for expanding compatibility
  • Dimensions: 9.1” W x 2.7” H x .9” D

Package Contents:
EVSP18SC 1×8 Splitter
DC 5V Power Supply
Product Manual

Additional information

Brands

Evolution

EVSP18SC Product Manual

Download

EVSP18SC Sales Sheet

Download
