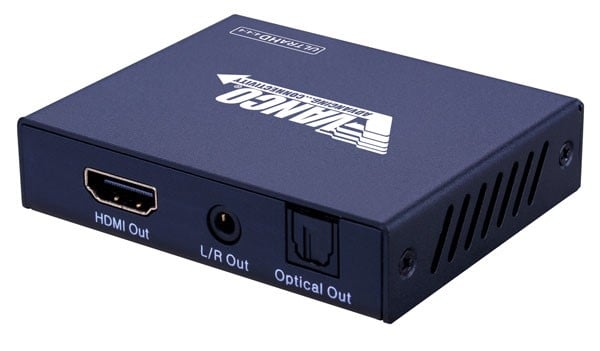

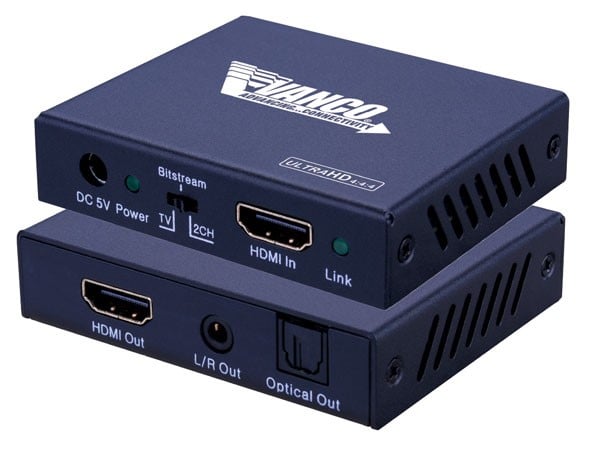

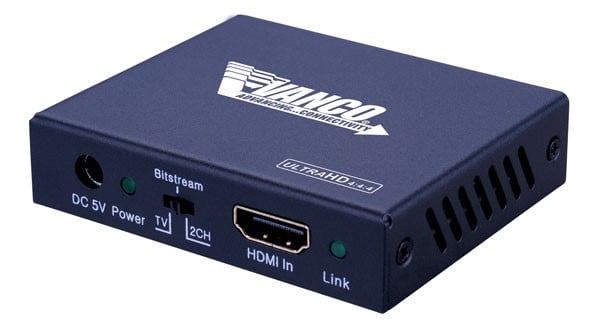

4K HDMI® Audio Extractor

SKU: HD4KAE Categories: ,


  • Extracts audio signals from an HDMI source
  • Passes 4K @ 60Hz and 4:4:4 chroma subsampling
  • Supports HDR (High Dynamic Range)
  • Supports Full 18 Gpbs Bandwidth
  • HDCP 2.2 compliant

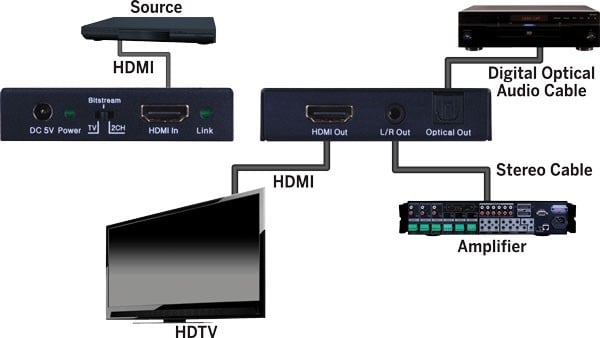

  • Allows simultaneous output of HDMI audio- multi-channel optical (SPDIF)- and L/R analog audio in 2CH mode
  • Optical audio supports LPCM 2CH- Dolby Digital 2/5.1CH- DTS 2/5.1CH
  • Supports uncompressed audio LPCM (Linear Pulse Code Modulation)
  • Supports compressed audio DTS Digital- Dolby Digital (DTS-HD and Dolby True HD)
  • Power Supply: 5V DC- UL Listed

Package Contents:

Main unit (4K HDMI Audio Extractor)
5V DC Power Supply
User’s Manual

Additional information

Weight 0.55 lbs
Dimensions 4.5 × 3.5 × 2.25 in
Source Type




HD4KAE Product Manual


HD4KAE Sales Sheet
