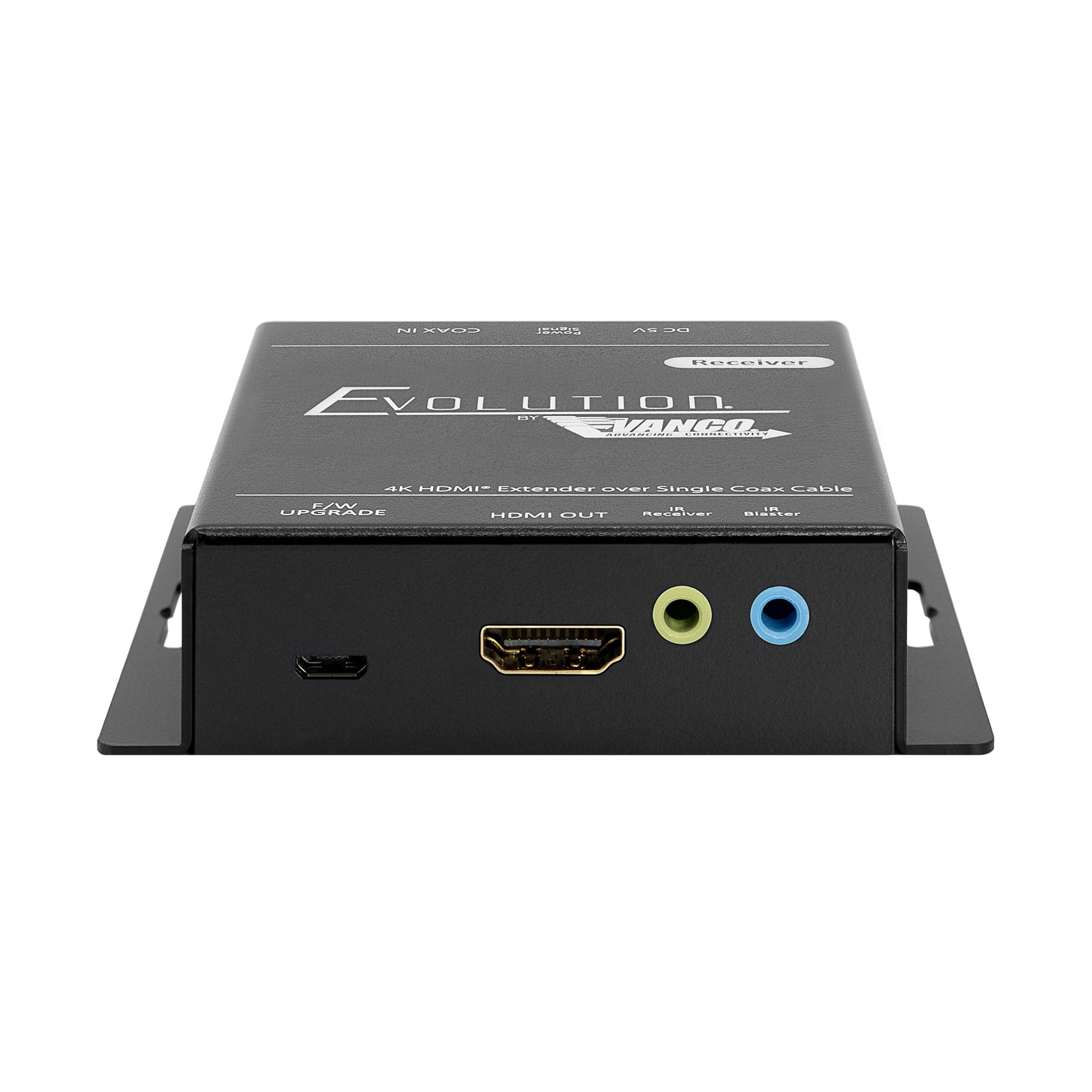

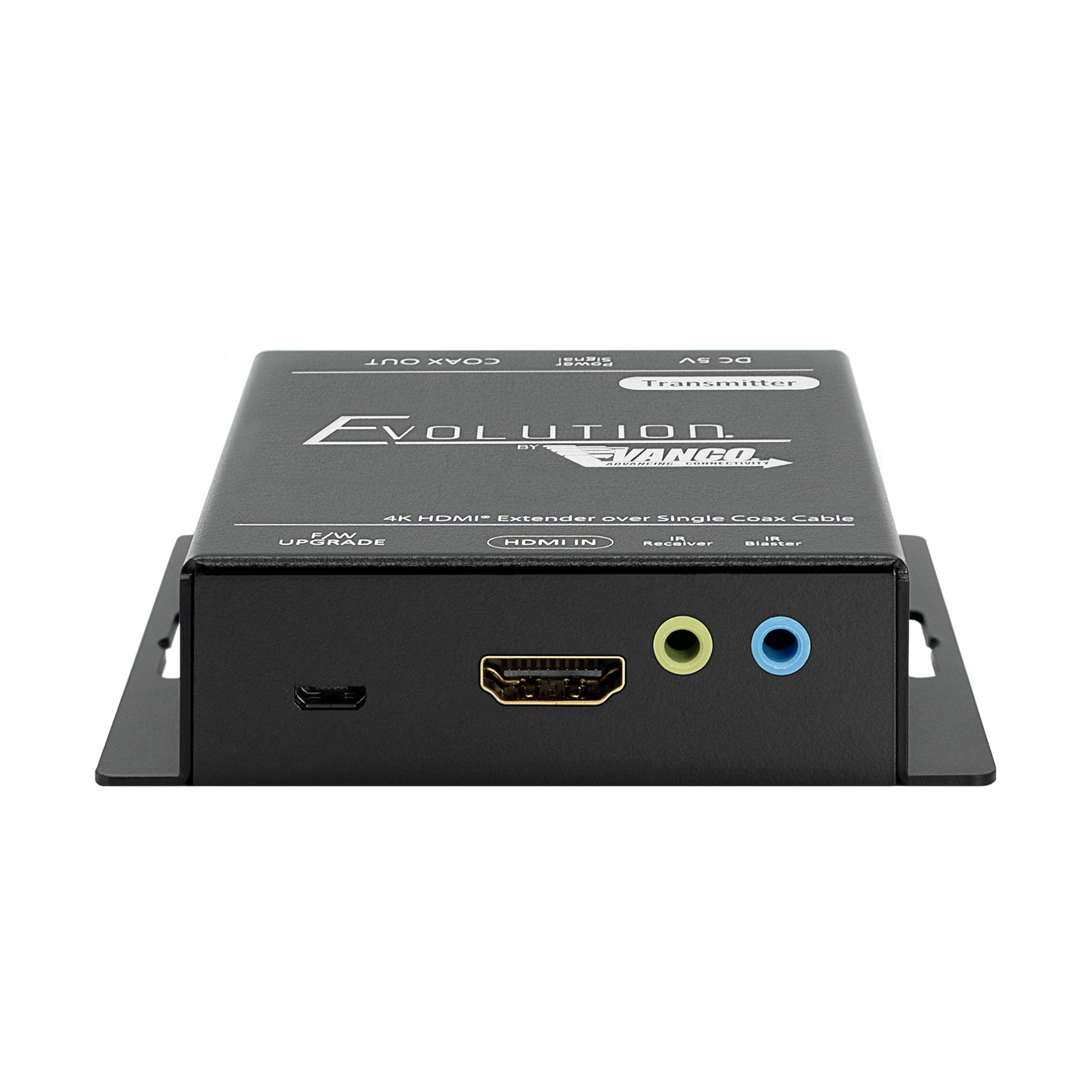

4K HDMI Extender over Single Coax Cable with Bi-directional IR

SKU: EV4K2004 Categories: , ,

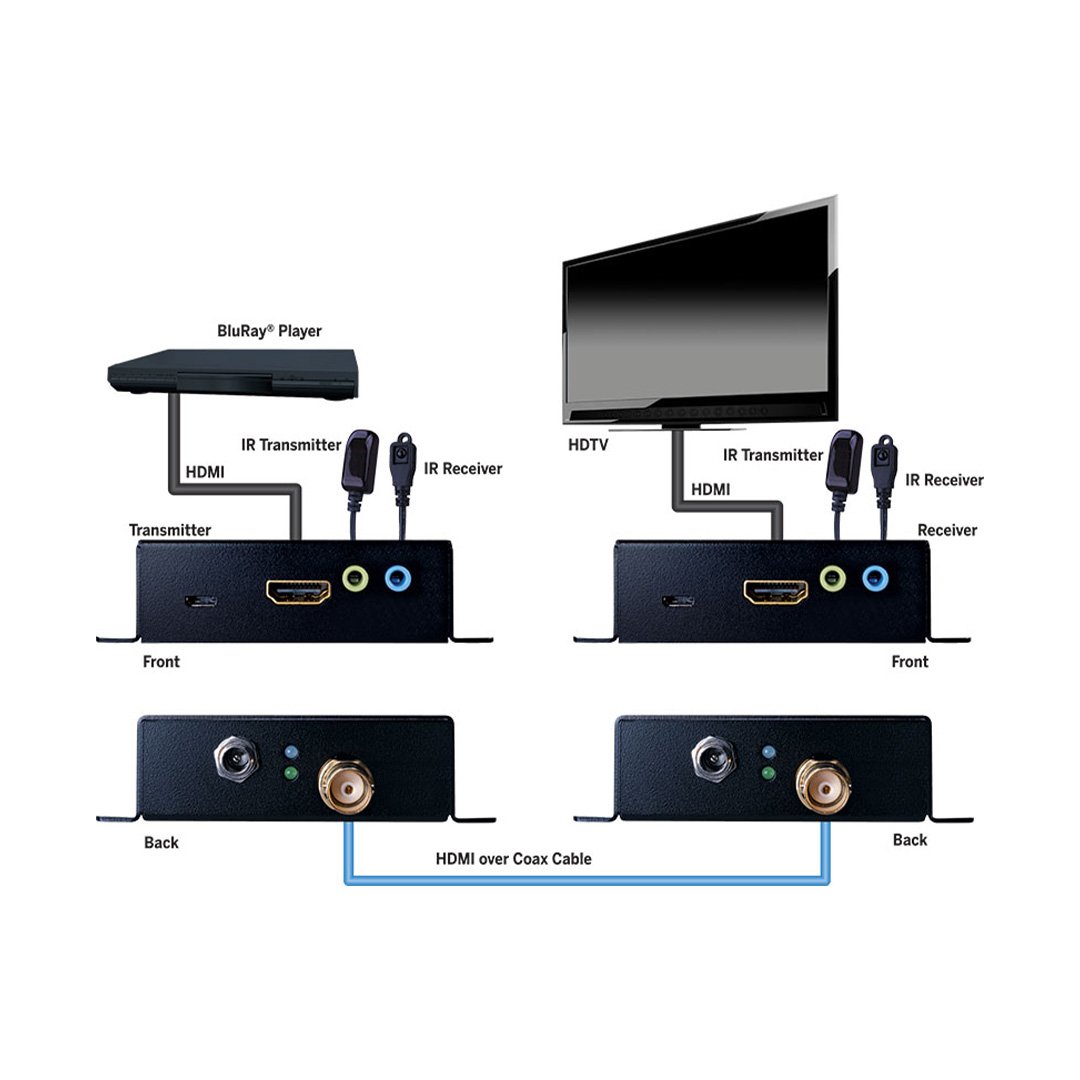

Extend HDMI and IR signals over coaxial cable.


View Our Extender Comparison Guide

  • Allows HDMI audio/video signals to be transmitted using a single coaxial cable
  • Supports up to 4K@60Hz, 4:4:4 chroma subsampling, 8bits and HDR10
  • Transmission range: Extends 4K@60Hz up to 330ft (100m); 4K@60Hz and HDR10 up to 230ft (70m) over a single RG6 coaxial cable
  • HDMI 2.0 and HDCP 2.2/1.4 compliant
  • Uncompressed 2CH digital HDMI over coaxial cable transmission
  • Audio sample rate supports 32KHz, 44.1KHz, 48KHz
  • Auto signal equalization and dynamic EDID
  • Supports full frequency IR signal from 20KHz to 60KHz
  • Bi-directional IR pass-through for source and/or display control
  • Compact and wall mounting housing design for easy and robust installation
  • Dimensions: 3.5” x 3.7” x 1”

Tech Support Tips:

    • RG6 coaxial cable highly recommended with home-run installation for best results, with no splicing, coupling, etc., mini coax cable will not function with this unit

Package Contents:
EV4K2004 (TX & RX)
(1) IR Blasters (TX)
(1) IR Receivers (RX)
Mounting Hardware
(2) DC 5V, 2A Power Supplies
Product Manual
