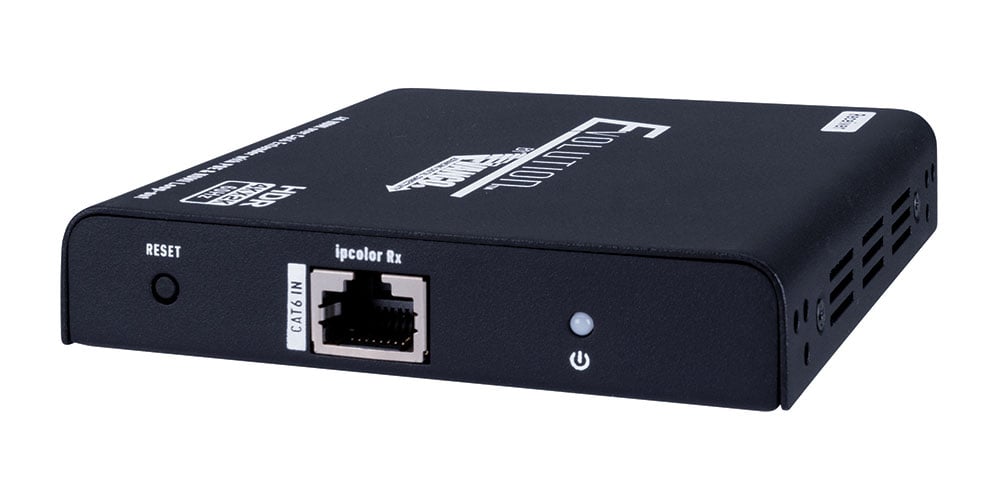

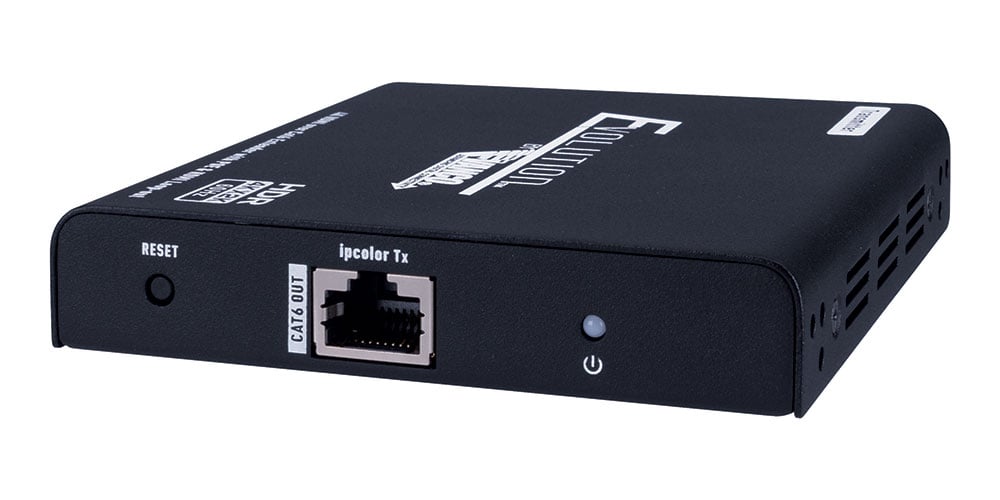

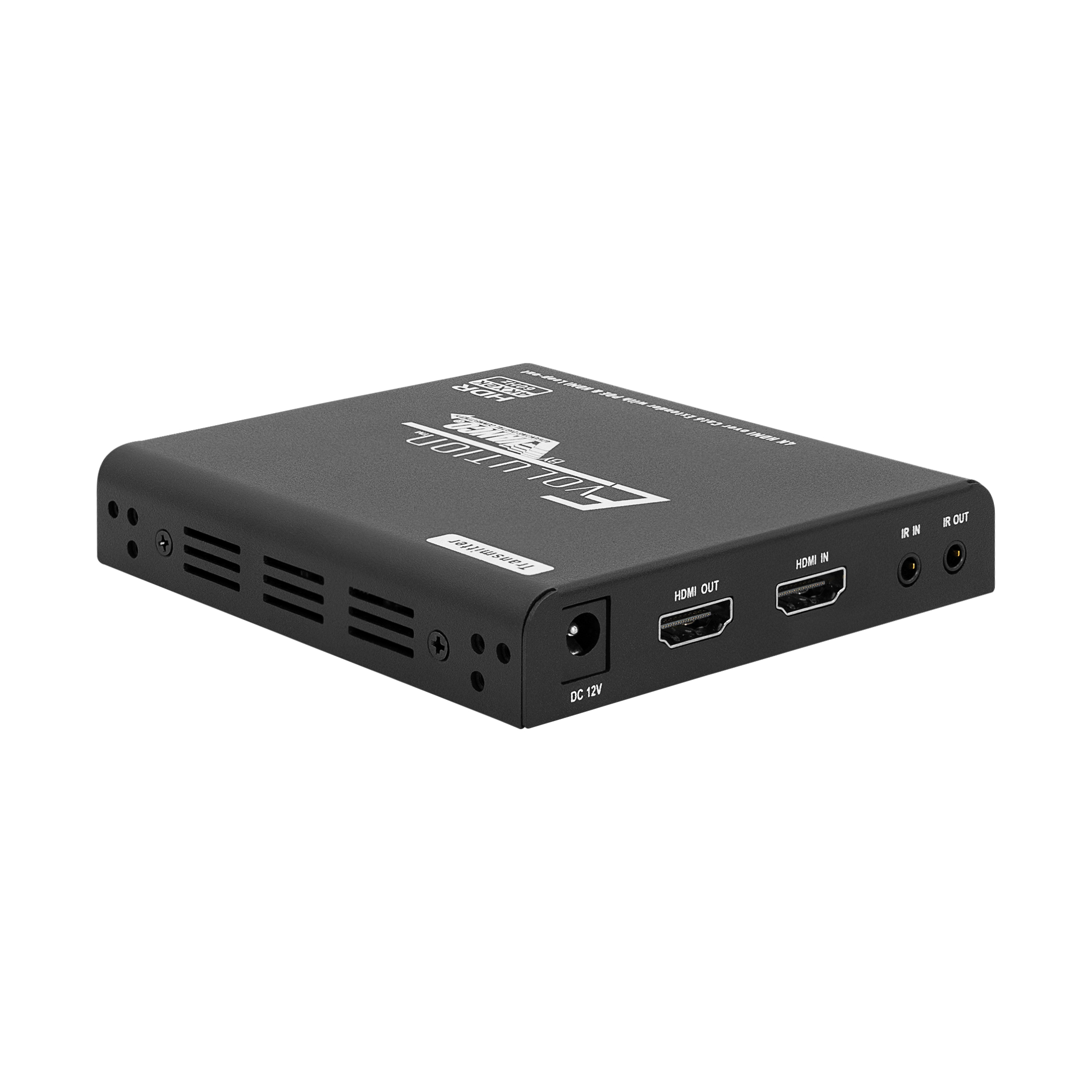

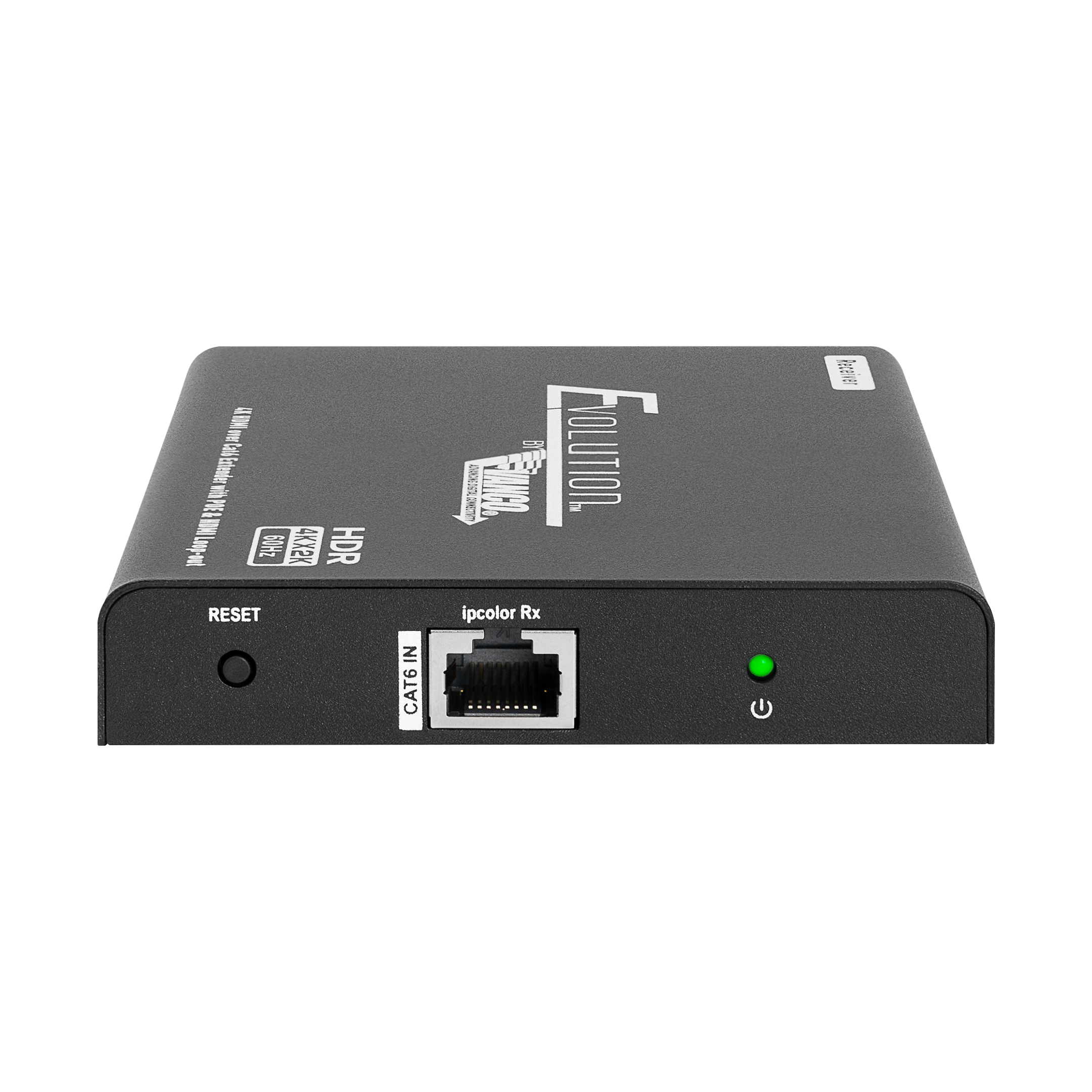

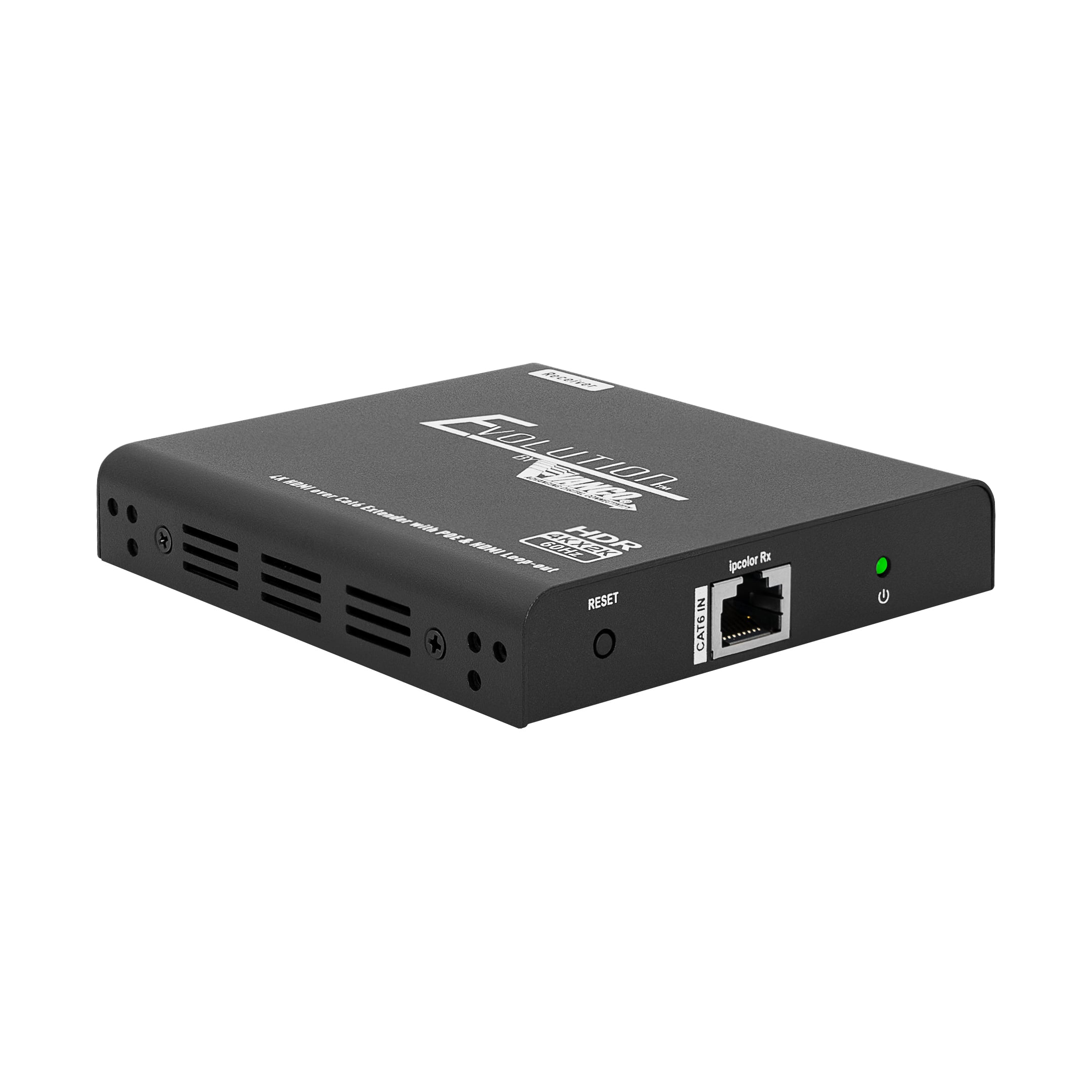

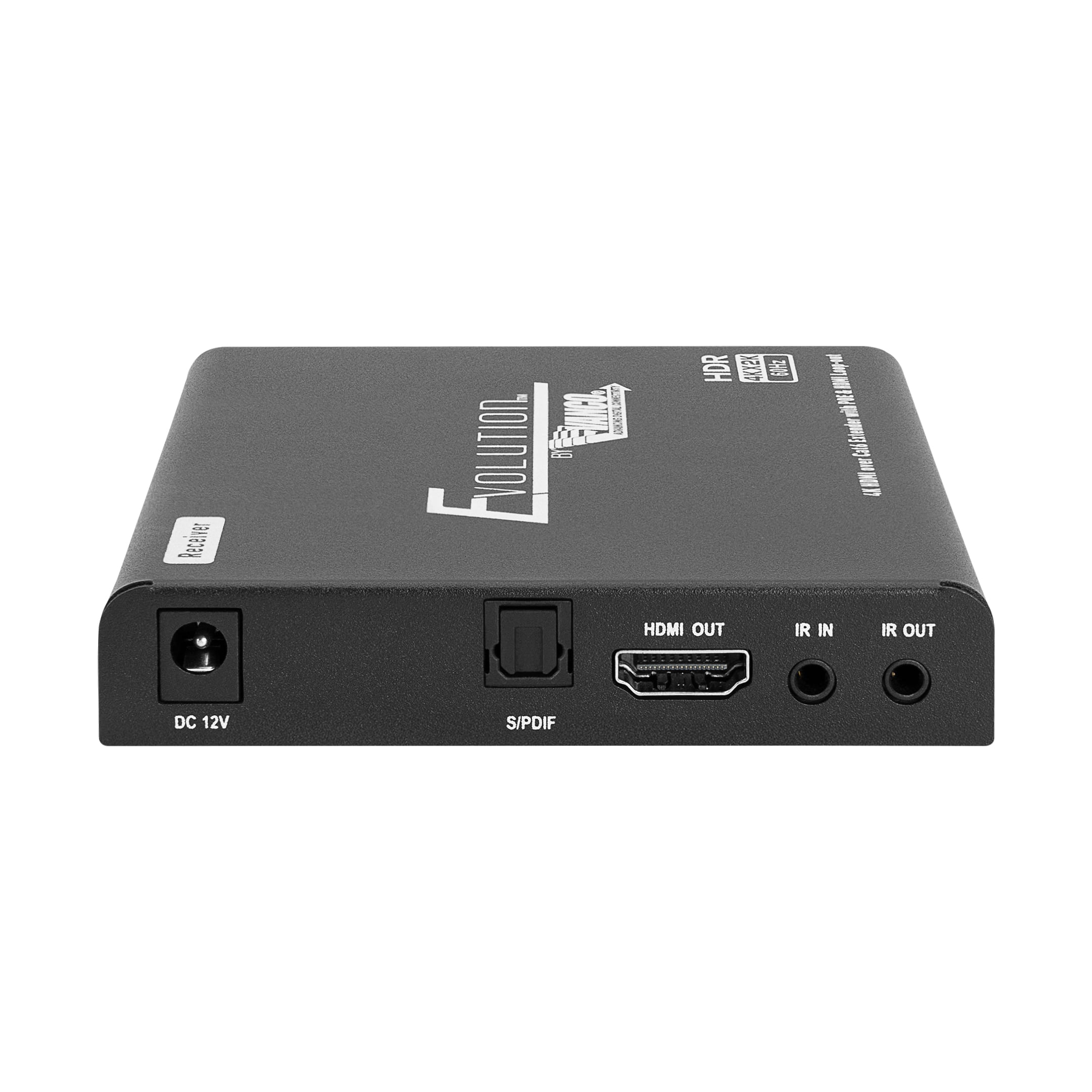

4K HDMI Extender with Digital Audio Breakout, HDMI Loop-out, IR and PoE

SKU: EVEX4K70 Categories: , , ,

Description

View Our Extender Comparison Guide

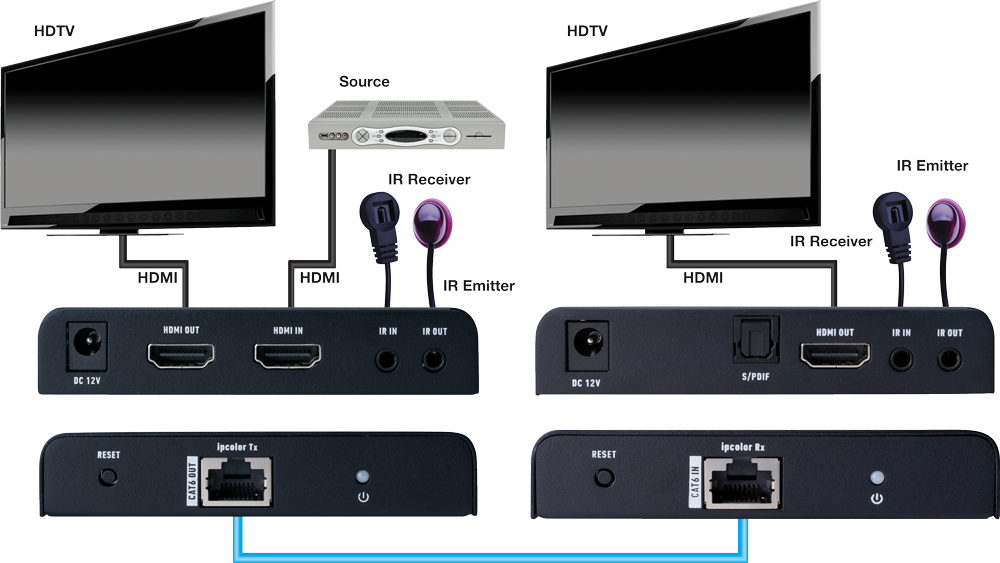

  • Allows HDMI audio/video signals to be transmitted using a single Cat6/6A/7 Cable
  • Extends [email protected], 4:4:4, and HDR10 up to 230ft/70m and 1080p up to 330ft/100m
  • Features bi-directional Power over Ethernet (PoE) technology which transmits power over Cat6, allowing the transmitter and receiver to be powered off of a single power supply
  • Supports multiple audio formats such as (Dolby TrueHD 7.1CH/Dolby Digital 5.1CH)
  • Dynamic EDID for compatibility and plug and play operation

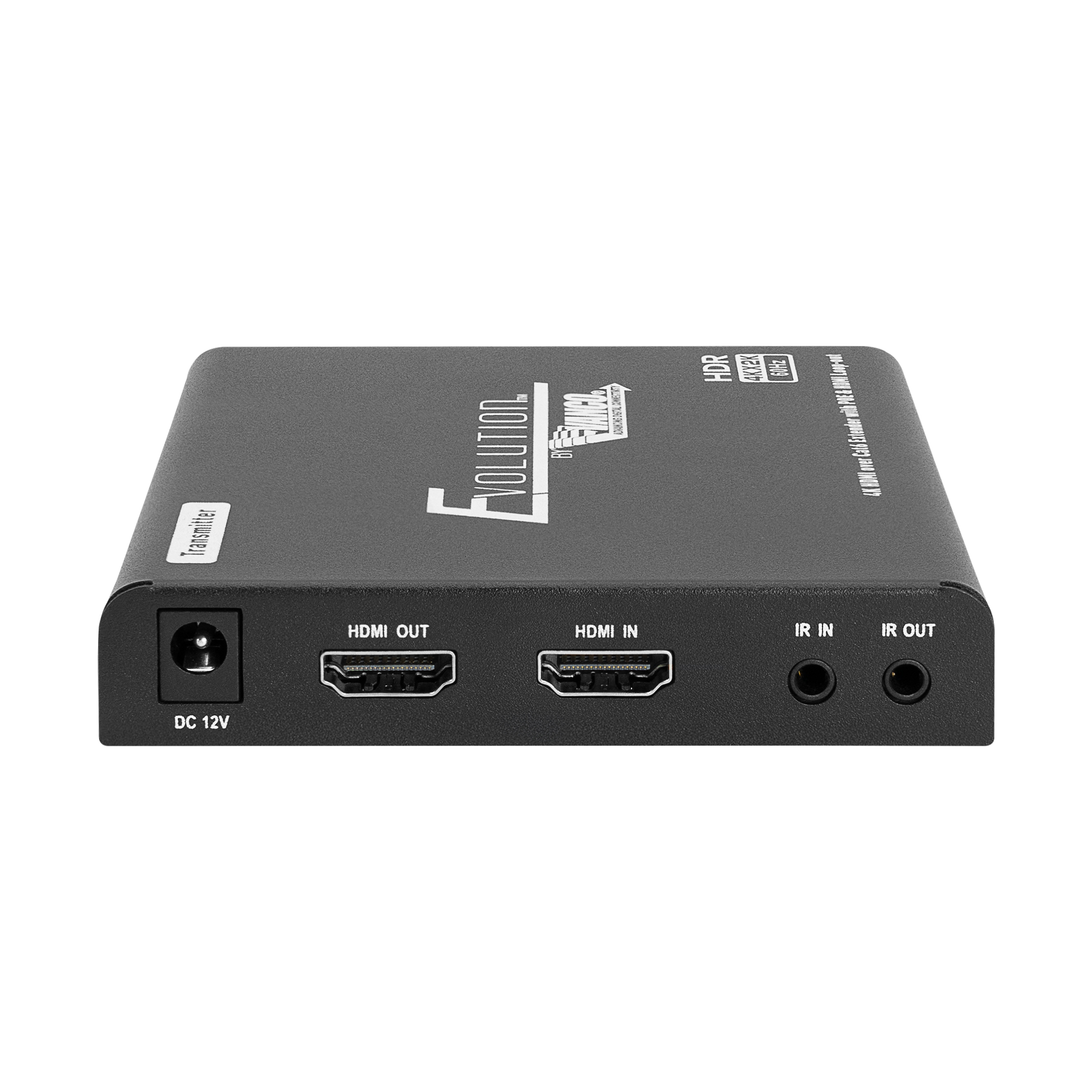

  • HDMI loop-out for local monitoring or use with other HDMI distribution products
  • Digital optical audio breakout for audio extraction
  • Supports bi-directional IR (20~60KHz) for source or display control
  • Slim and compact design
  • Dimensions: 4.2” x 3.9” x 1” (106.0 x 99.0 x 26.2mm)
  • Patent No. 9,710,038 B1

Tech Support Tips:

    • All specifications and ratings for the EVEX4K70 have been tested and confirmed using Cat6 cabling. Cat6 or better is strongly recommended for optimum performance, achieve rated distance, and to maximize resolution capabilities of this product. Cat5e is not recommended and may not achieve distance and/or resolution expectations.

Package Contents:

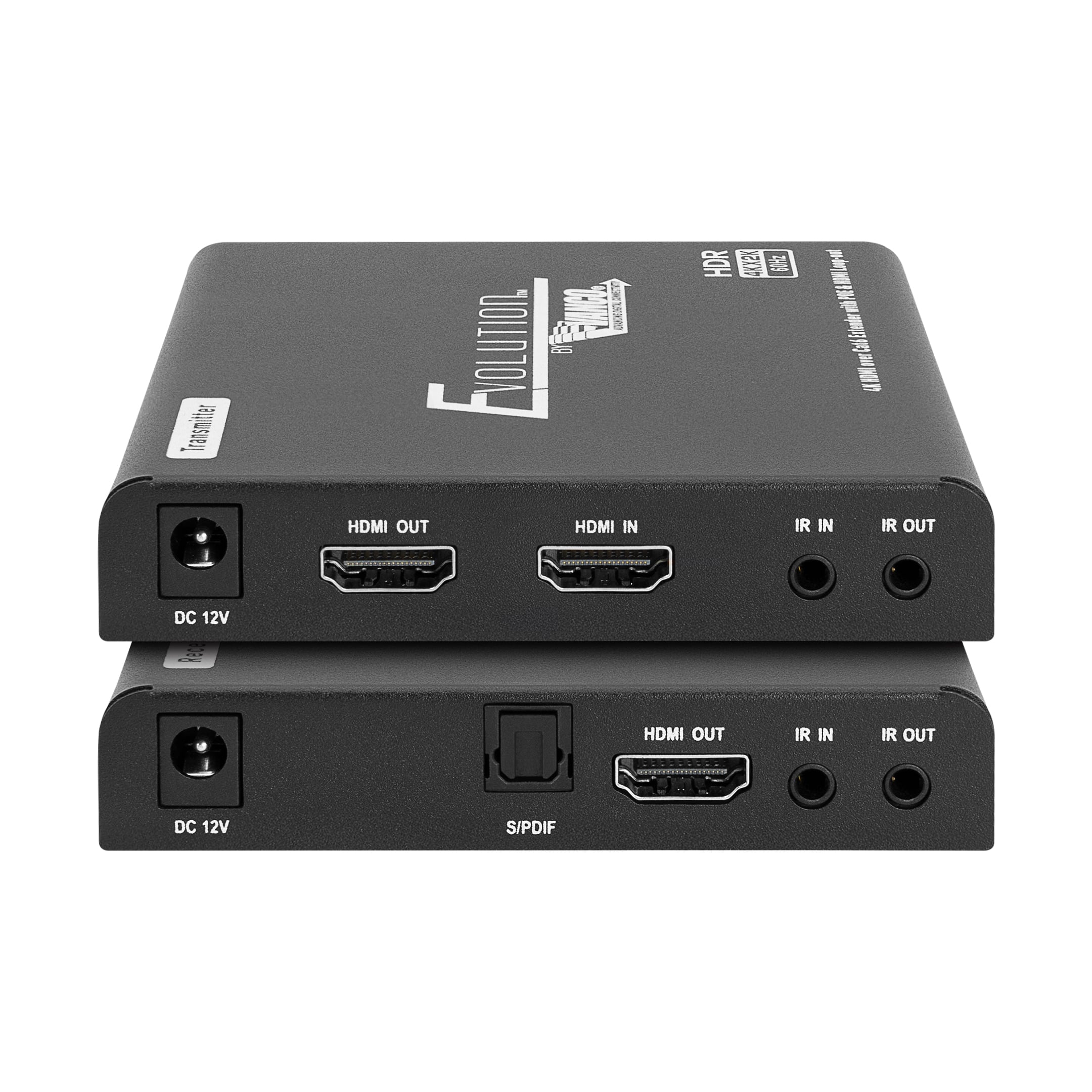

EVEX4K70 (TX & RX)
(1) IR Receiver
(1) IR Emitter
(1) Set of Mounting Hardware
(1) DC 12V, 1A Power Suppy
(1) Product Manual
