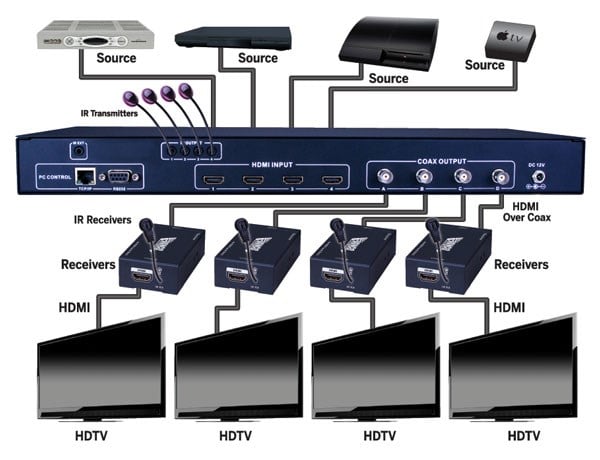

  • HDMI wiring diagram

4×4 HDMI® Coaxial Matrix

SKU: 280568 Categories: ,


  • Allows up to 4 HDMI sources to be distributed simultaneously to up to 4 displays
  • Simple plug and play solution allows each output the ability to extend the HDMI signal up to 328ft/100m over a single BNC terminated coaxial cable (RG6)
  • Features HDSDI technology- full 1080P HD video and audio
  • Additional EDID management can be achieved using the RS232 connection and the interface to encourage device communication and compatibility for a seamless installation
  • Supports wideband IR- 30–60KHz (IR accessories included)
  • Control via RS-232- TCP/IP- IR- and manual on-panel control
  • Supports smart EDID management
  • Quick Install Kit includes Matrix Unit and 4 Receivers
  • 12V DC- UL Listed Power supply for 4×4 matrix
  • 5V DC- UL Listed Power Supplies for Receivers (4 total)
  • 4×4 Matrix Dimensions: 17.31″ (440mm) W x 1.75″ (44.45mm) H x 7.875 (200mm) D
  • Receiver Dimensions: 2″ (50mm) W x 1″ (25mm) H x 3.125″ (80mm) D

Package Contents:

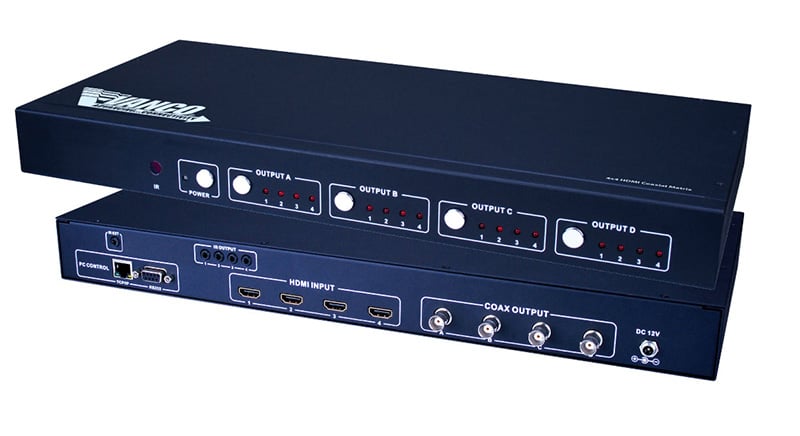

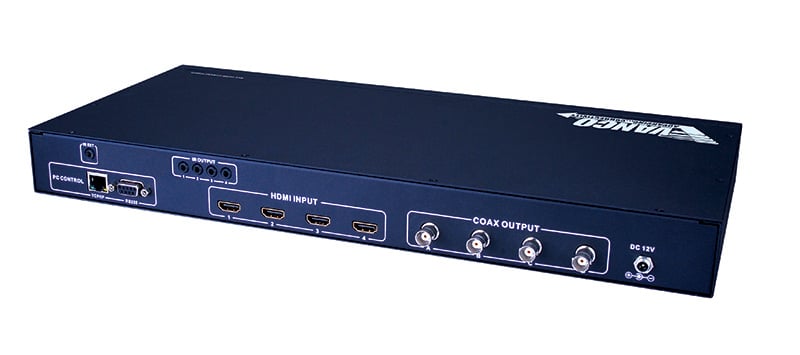

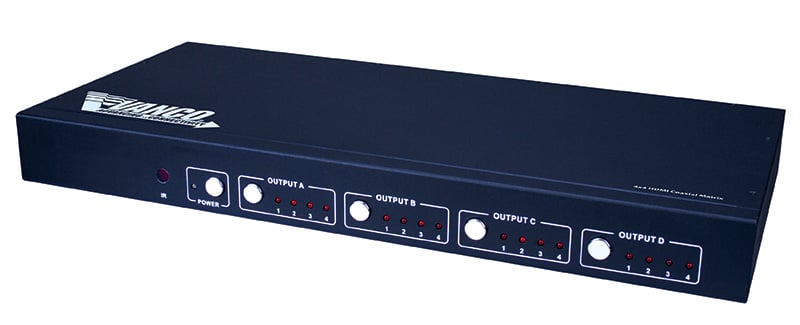

4×4 HDMI to Coaxial Matrix Switcher

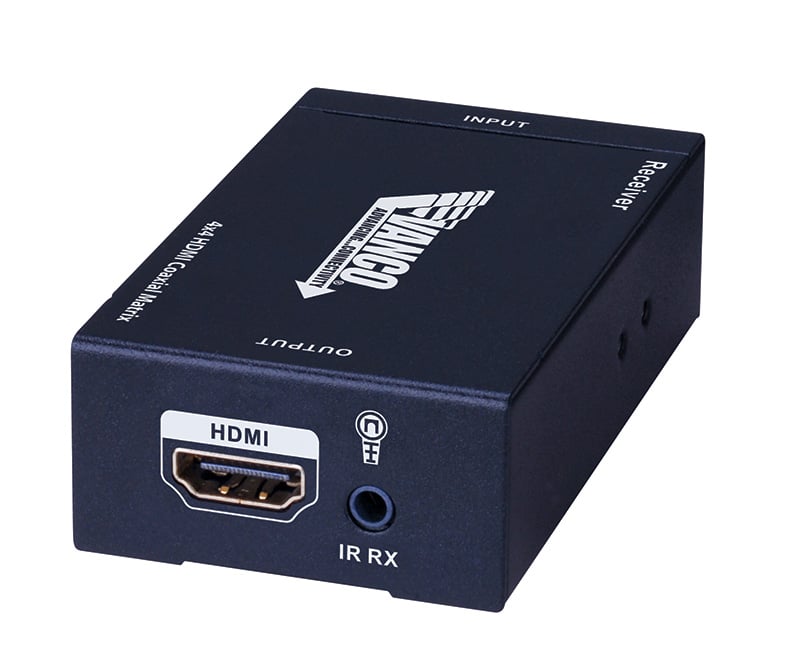

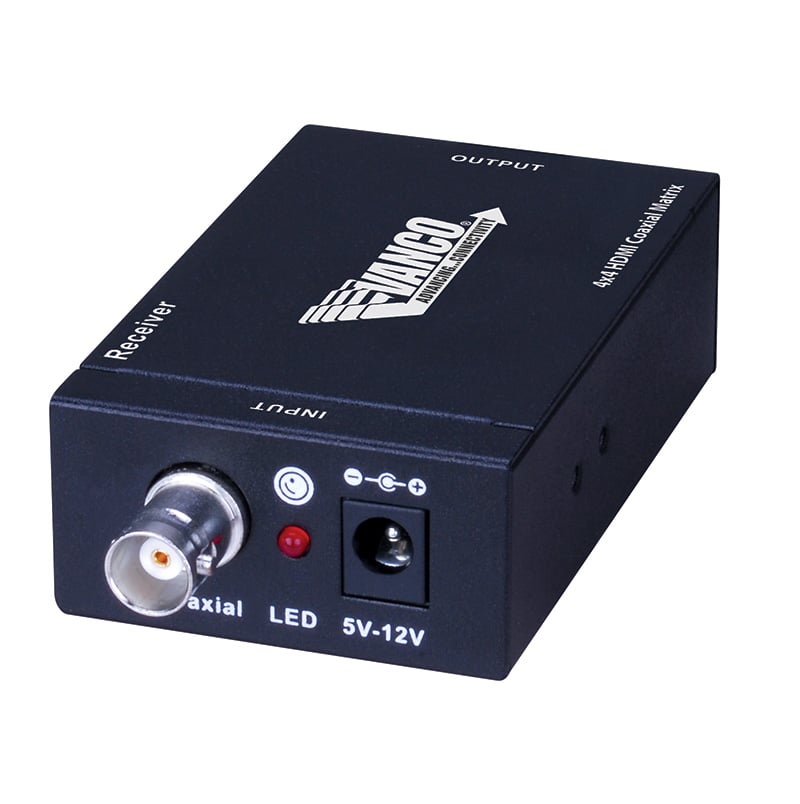

(4) HDMI Coaxial Receiver
(4) Wideband IR TX cable
(5) Wideband IR RX cable
HDMI Matrix IR Remote
RS232 cable
(1) 12V/2.5A DC power adaptor
(4) 5V/1A DC power adaptor
(2) Mounting ears
(1) User Manual

Additional information

Weight 10.3 lbs
Dimensions 20.5 × 12.5 × 4.5 in



Full HD 1080p





Transmission Distance

>300 ft

280568 Product Manual


280568 Software


280568 IR Hex Codes


280568 Serial Hex Commands
