PulseAudio 6X6 Audio Distribution Amplifier

Description

  • 6 x 6 Audio Matrix with 6 Bridgeable zones to accommodate 1 or 2 speakers per zone
  • Provides a Whole House Audio Control System – expandable up to 3 units for 18 Zones of distributed audio

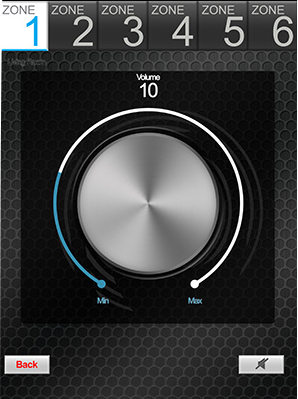

  • Integrated Wifi Adapter with available Android and IOS app that allows for control via smartphone or tablet

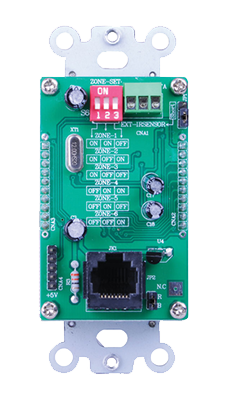

  • Optional keypads with modern design fit seamlessly into any room. Keypads are POE with Built-in IR Receivers (Keypads and 1 Cat5e/Cat6 Connection Hub included with Part # PA66KIT)
  • High efficiency Class D amplification
  • Stereo/Bridge mono output
  • Stereo/Bridge mode adjustable
  • IR remote controller for source select/volume/treble/bass
  • RS-232 port allows 2-way communication with the Home Automation
  • Power 230V and 115V adjustable
  • Ext. Mute & System on 3.5mm Mono Mini Phone Jacks
  • 6 IR Emitter 3.5 mm Mono Mini Phone Jacks + 1 IR Emitter 3.5mm Mono for All Output Jack
  • 1 PA Input Jack to set all Zone to Source 1
  • 3 Zone Pre-AMP Outputs to connect external Power amplify
  • Integrate and control your streaming services with PulseAudio’s PASTREAM integrated audio source streamer or CasaTunes multi-room, multi-mode music services (sold separately)

Package Contents:

6×6 Amplifier
Remote Control
Expansion Ribbon Cable
Rack Mounting Ears – 2 (Installed on Amp)
Speaker Terminal Blocks – 6 (Installed on Amp)
Keypad Connection Hub and Decora Wall-plate (only PA66KIT)
POE Keypads with built-in IR RX and Decora Wall-plates – 6 (only PA66KIT)
AC Power Cable
Product Manual

PA66AMP Product Manual

Download

This Attachment Never Expires.

PA66AMP Sales Sheet

Download

This Attachment Never Expires.

PA66AMP/PA66KIT Control4 Driver

Download

This Attachment Never Expires.

PA66AMP/PA66KIT Crestron Driver

Download

This Attachment Never Expires.

PA66AMP/PA66KIT ELAN Driver

Download

This Attachment Never Expires.

PA66AMP/PA66KIT RTI Driver

Download

This Attachment Never Expires.

PA66AMP/PA66KIT URC Driver

Download

This Attachment Never Expires.
