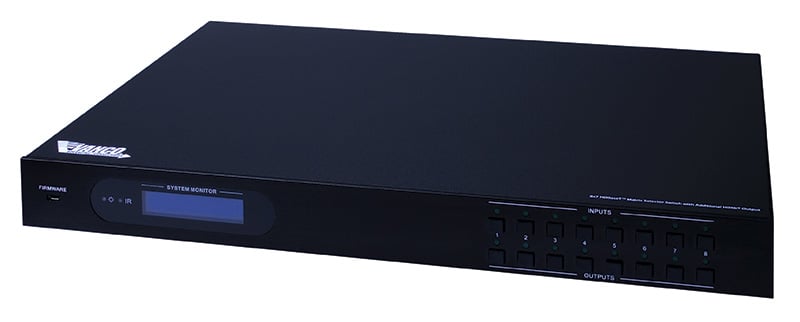

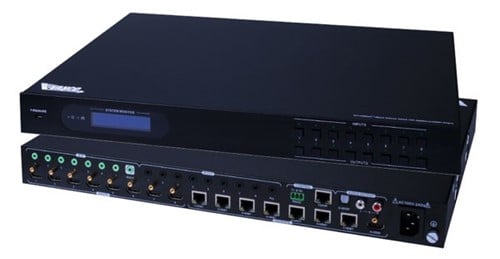

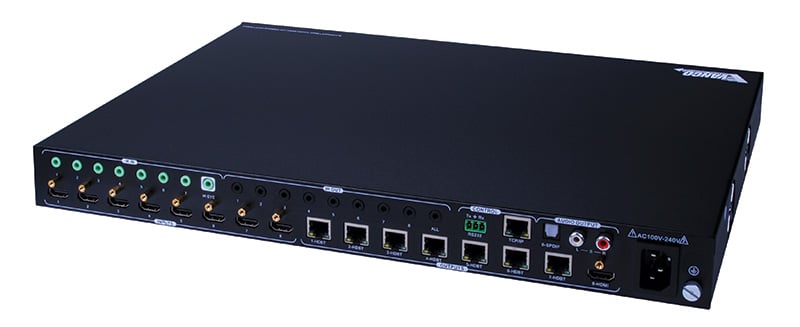

8×7 HDBaseT™ Matrix Selector Switch with Additional HDMI® Output

SKU: HDBT8X7 Categories: ,

This product has been discontinued.

Description



View Our Extender Comparison Guide



  • HDBaseT Matrix that features 7 HDBaseT outputs and 1 HDMI output
  • Quick install kit includes 7 HDBaseT PoC receivers, 8 IR Emitter and Receiver sets and IR remote
    control
  • Supports HDCP 2.2, and is backward compatible with the previous version of HDCP and HDMI
  • Transmits [email protected] 60Hz 4:2:0 up to 26 ft (8m) via HDMI port and 131 ft (40m) via HDBaseT port
  • 7 HDBaseT outputs with distances up to 230 ft (70m) at 1080p and 131 ft (40m) at 4Kx2K on a single Cat5e/6 cable
  • HDBaseT Receivers are powered by the matrix using PoC technology
  • LED indicators show real-time switching status
  • Controllable via front panel, RS232, IR and TCP/IP
  • Supports bi-directional IR & RS232 control
  • Built-in GUI for TCP/IP control and setup
  • Powerful EDID management
  • Features Micro USB port for firmware upgrades
  • Easy installation with rack-mounting design, mounting hardware included
  • Power Supply: Matrix Unit, AC100-240V; Receivers, PoC
  • Matrix Dimensions: 17.2” W x 1.7” H x 11.8” D
  • Receiver Dimensions: 2.4” W x .9” H x 4.7” D

Package Contents:

HDBT8X7 HDBaseT Matrix Switcher
(7) HDBaseT Receivers
Power Supply

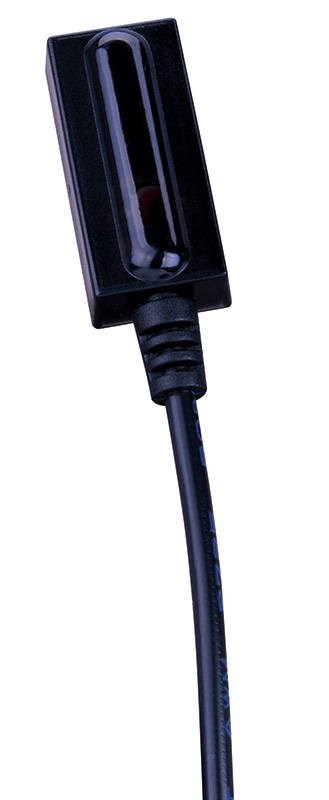

(8) IR Receivers
(8) IR Emitters
RS-232 cable (phoenix to DB9)
Mounting ears, hardware and pads for main unit and receivers
Optical adapter (for SPDIF audio output)

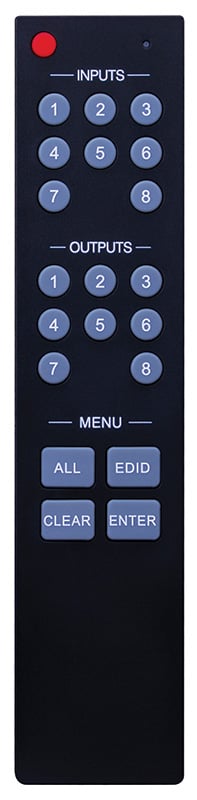

IR Remote
Product Manual

Additional information

Weight 12.95 lbs
Dimensions 5.25 × 15.25 × 22.25 in
Inputs/Outputs

8×7

Resolution

[email protected]

Brands

Vanco

Technology

HDBaseT

Transmission Distance

51 – 230 ft
