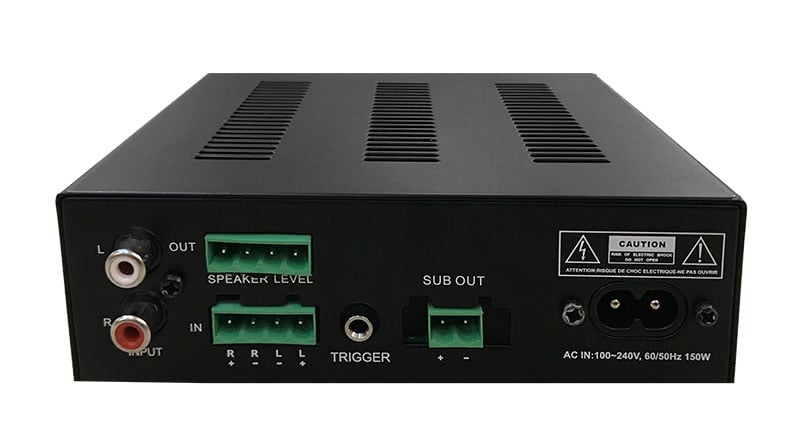

A120 Amplifier

SKU: A120 Categories: ,

Description

  • Amp Type – High Efficiency Class D
  • Power – 1×120 watt Subwoofer Amplifier – 4 Ohm stable
  • Variable Crossover – 40-160 Hz
  • Highlights – Compact Chassis
  • Maximum Output Power – 80W/8Ω; 120W/4Ω
  • THD – <1%
  • Frequency Response – 20Hz-160Hz +/-1dB
  • Signal to Noise – 95dB
  • Input Sensitivity – 200mV
  • THD – <1%
  • Phase – 0-180°
  • Signal to Noise – 95dB
  • Input – RCA
  • Speaker Level Input/Output
  • Trigger Input – +12VDC to +24VDC
  • Line Voltage Power – 110-120/220-240 VAC
  • Standby Power – 1.8W
  • Maximum Power Consumption – 150W
  • Dimensions – 5.7”W x 1.8”H x 5” D (143mm W x 45mm H x 125mm D)
  • Overall Length – 5.9” (150mm) (including knobs/connectors)
  • Weight – 1.75lbs (0.79kg)

Additional information

Channels

2 – Channel

Watts Per Channel

51-120W

A120 Product Manual

Download

This Attachment Never Expires.

A120 Sales Sheet

Download

This Attachment Never Expires.
