Digital to Analog Converter with Dolby Downmixing

SKU: PADAC-DD Categories: ,

Converts digital audio to analog audio without having to downgrade Dolby/DTS source audio with downmixing capability.

Description

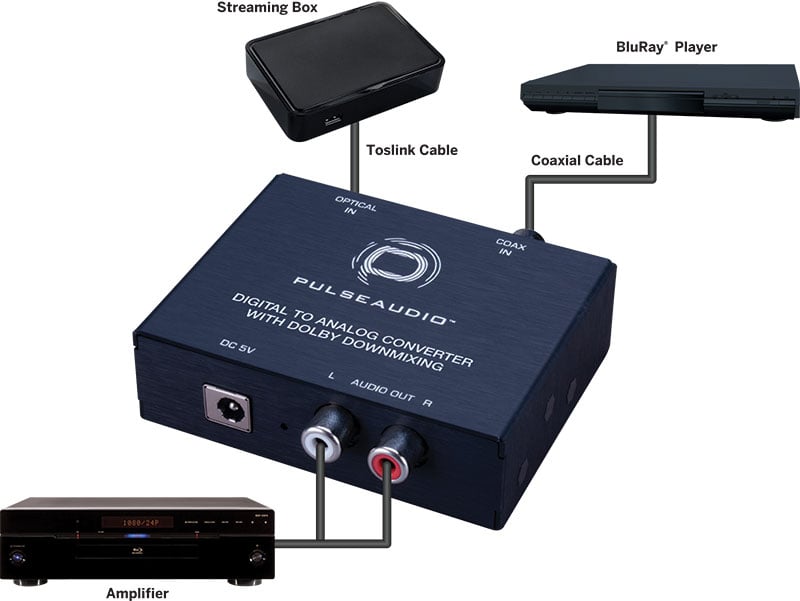

The PulseAudio DAC-DD Digital to Analog Converter with Dolby Downmixing converts either digital coaxial or optical to analog audio via dual RCA stereo output. Stereo output signals can then be fed to external devices such as an audio system, recording device, or powered speakers via standard phono style (RCA) jacks. Features Dolby Digital downmixing that assures full compatibility with any playback system without having to downgrade the source, especially helpful when sending the audio source signal to multiple zones with different formats. With both inputs and outputs for coaxial and optical connections, it provides the perfect solution for audio conversion applications.

  • Converts digital audio to analog audio with Dolby Digital downmixing
  • Decodes connected S/PDIF coaxial or TOSLINK optical digital audio sources to analog stereo (L/R) audio
  • Dolby Digital downmixing assures full compatibility with any stereo playback system
  • Downmixes Dolby 5.1 to PCM

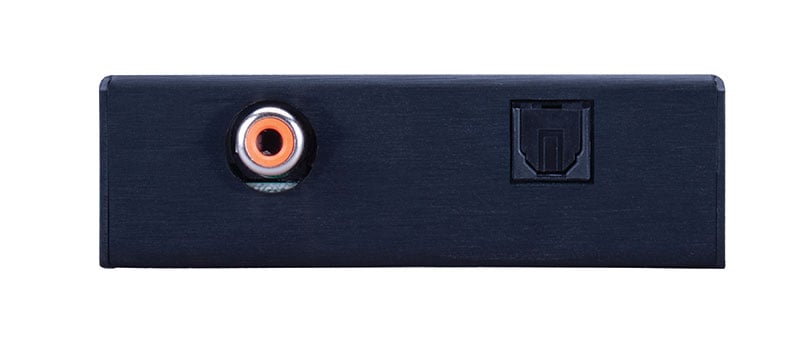

  • Ability to switch between coaxial and optical audio input connections
  • 24-bit S/PDIF incoming bitstream on left and right channels
  • 2-channel LPCM at 32, 44.1, 48, 96 & 192 KHz
  • Accepts uncompressed digital audio input source signals
  • TAA Compliant

What’s included:
(1) Digital to analog converter
(1) Power supply
(1) Product Manual

Additional information

Weight 0.8 lbs
Dimensions 3.5 × 5.5 × 7.5 in
Brands

PulseAudio

PADAC-DD Product Manual

Download

PADAC-DD Sales Sheet

Download
