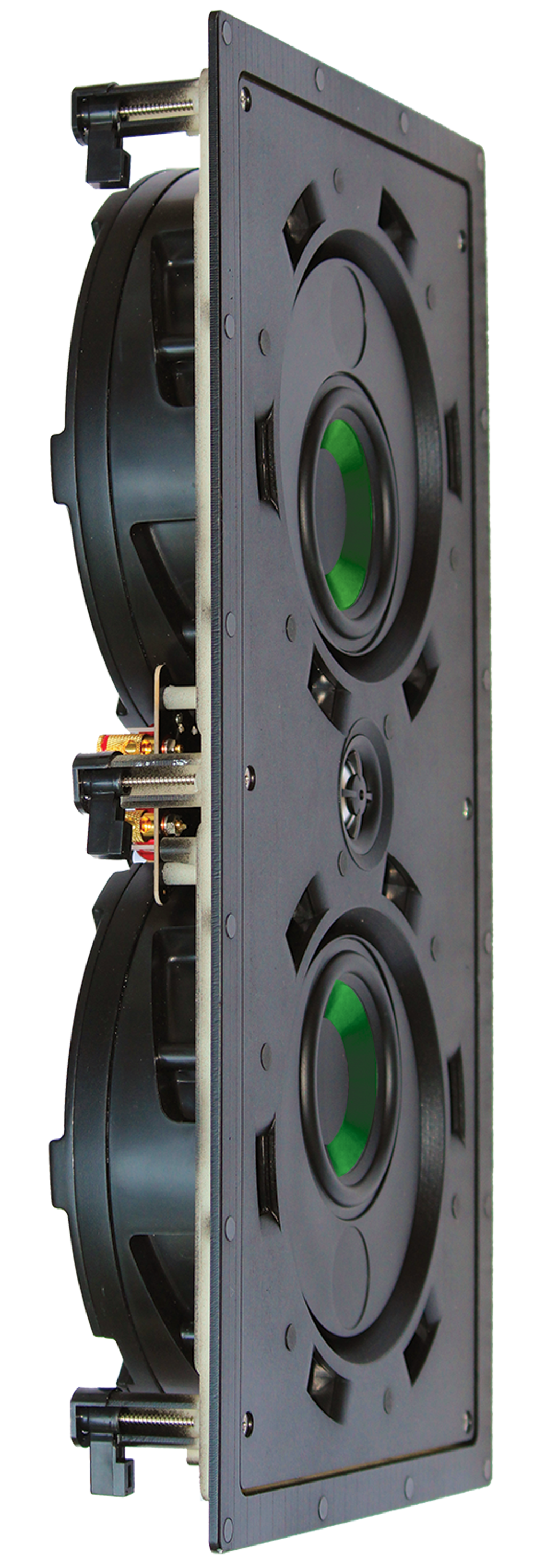

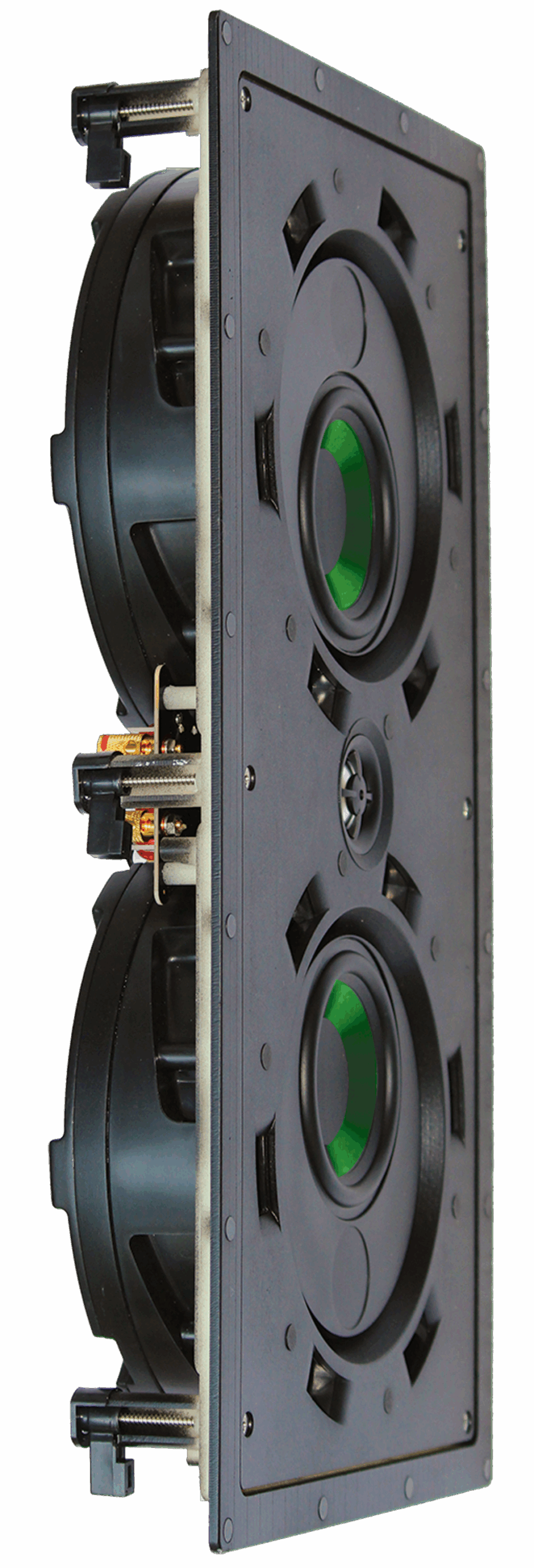

Dual 4″ Pancake Speaker: IPLCR4-MB

Description

  • Speaker Type – In Wall 2-Way
  • Woofer – Dual 4″ Fluted Injected Poly
  • Tweeter – 1″ Aluminum Dome
  • Frequency – 62 Hz – 24 kHz
  • Sensitivity – 92db
  • Butyl Rubber Surround
  • Sonic Vortex® Ported Transmission Line
  • Magnetic Bezelless Grille – White; paintable
  • Impedance – 6Ω
  • Connector Type – Gold Spring Push Terminal
  • Depth – 2.82″ (71.5mm)
  • Speaker Weight – 6 lbs (2.72kg)
  • Cutout – 18.31″ H x 8.74″ (465mm x 222mm)
  • Grille Dimensions – 19.62″ H x 10.06″ W (498mm x 255.4mm)
  • Frequency/Crossover Setting – Full range only
  • Power Handling – 5-120W
  • EZBracket Size – Does not apply
  • Highlights – Ultra Shallow Depth Pancake Less than 3″ Depth (71.5mm)
  • B = Better
  • MB = More Better
  • BB = Better than their Best
  • We have a Good, Better Best formula in our model hierarchy. However, the “B” in our model number designates “Better” since we believe that our “Good” is better than the competitions “Good”. So, we start with Better and have some fun with the other suffixes.
