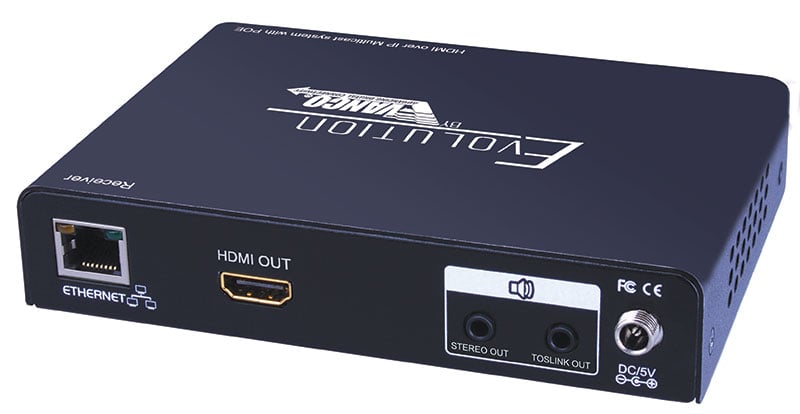

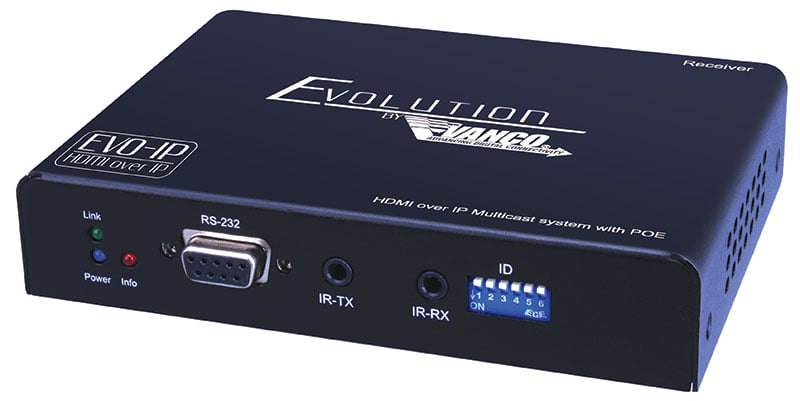

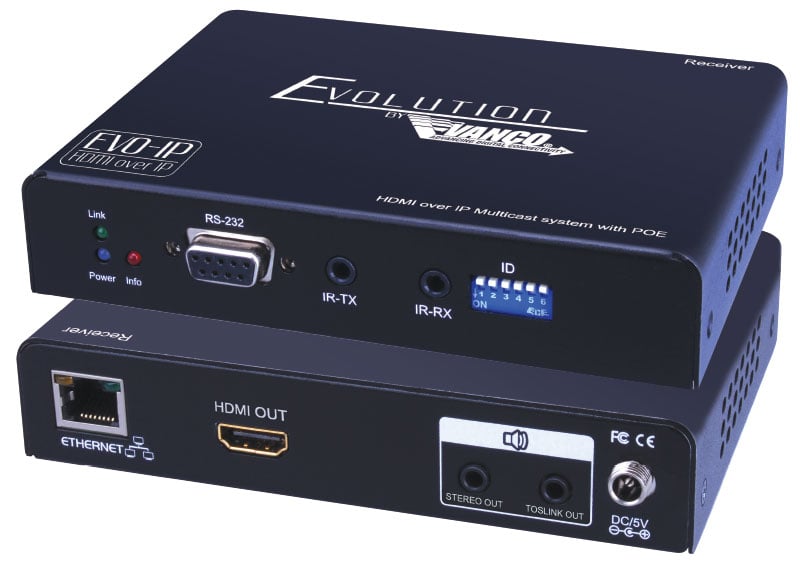

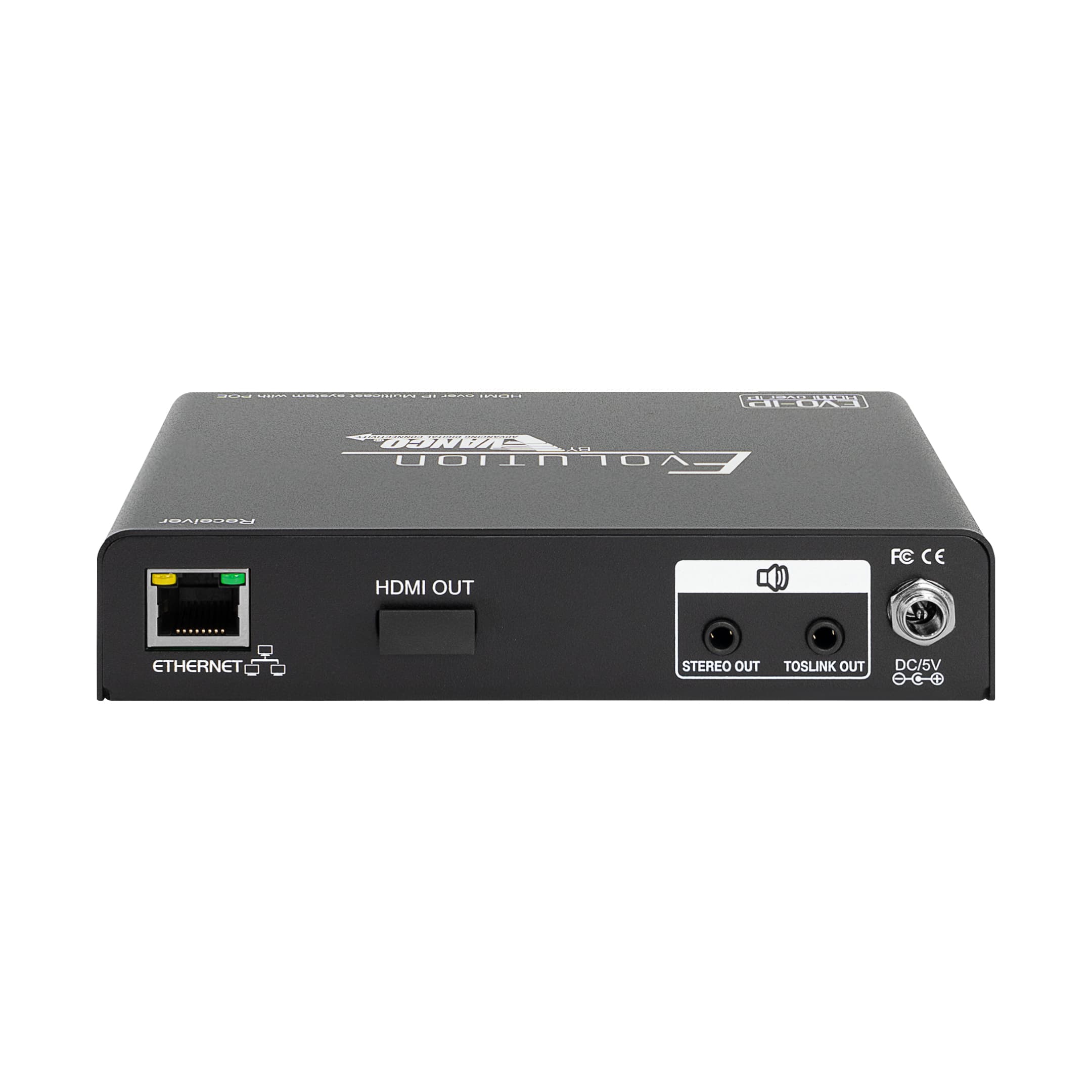

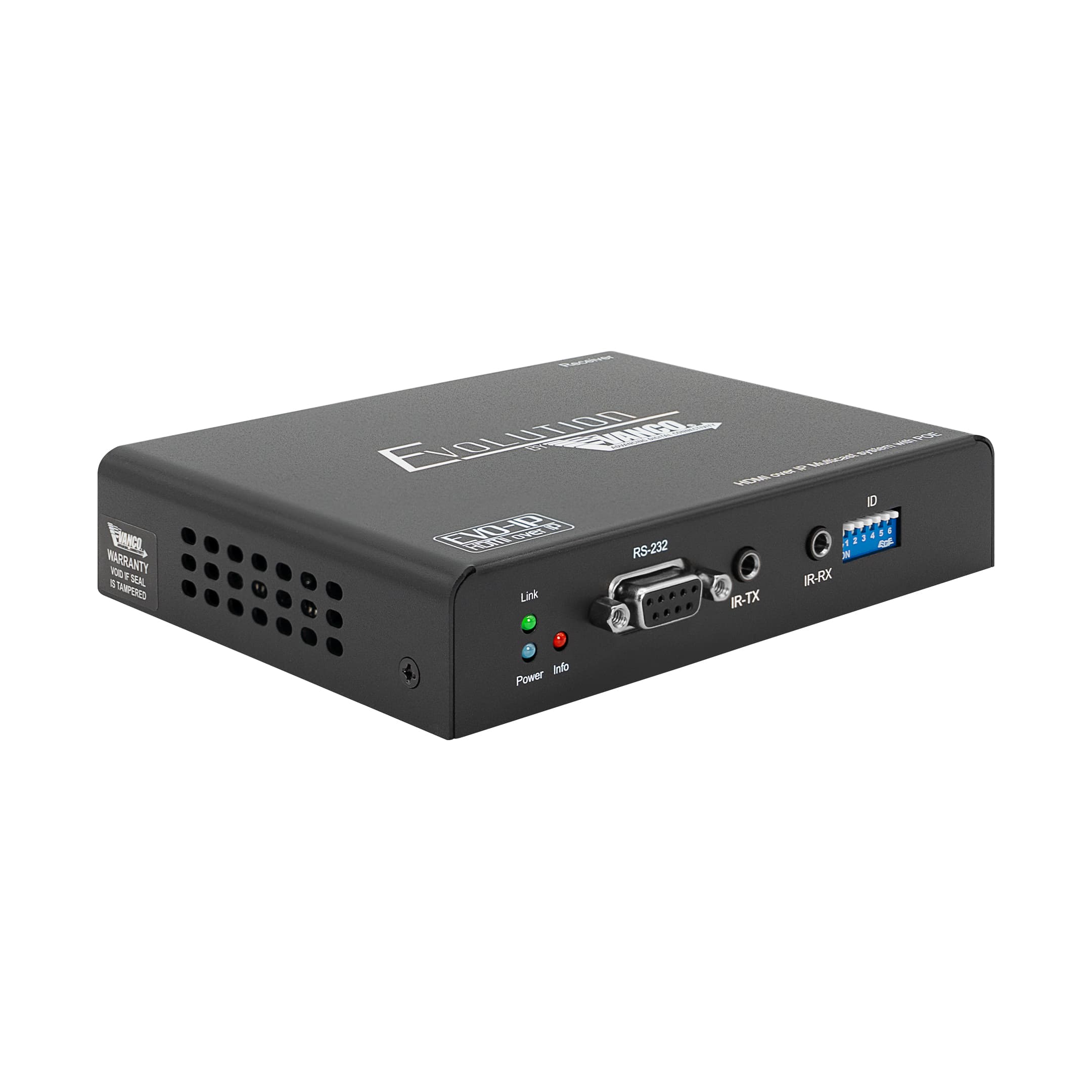

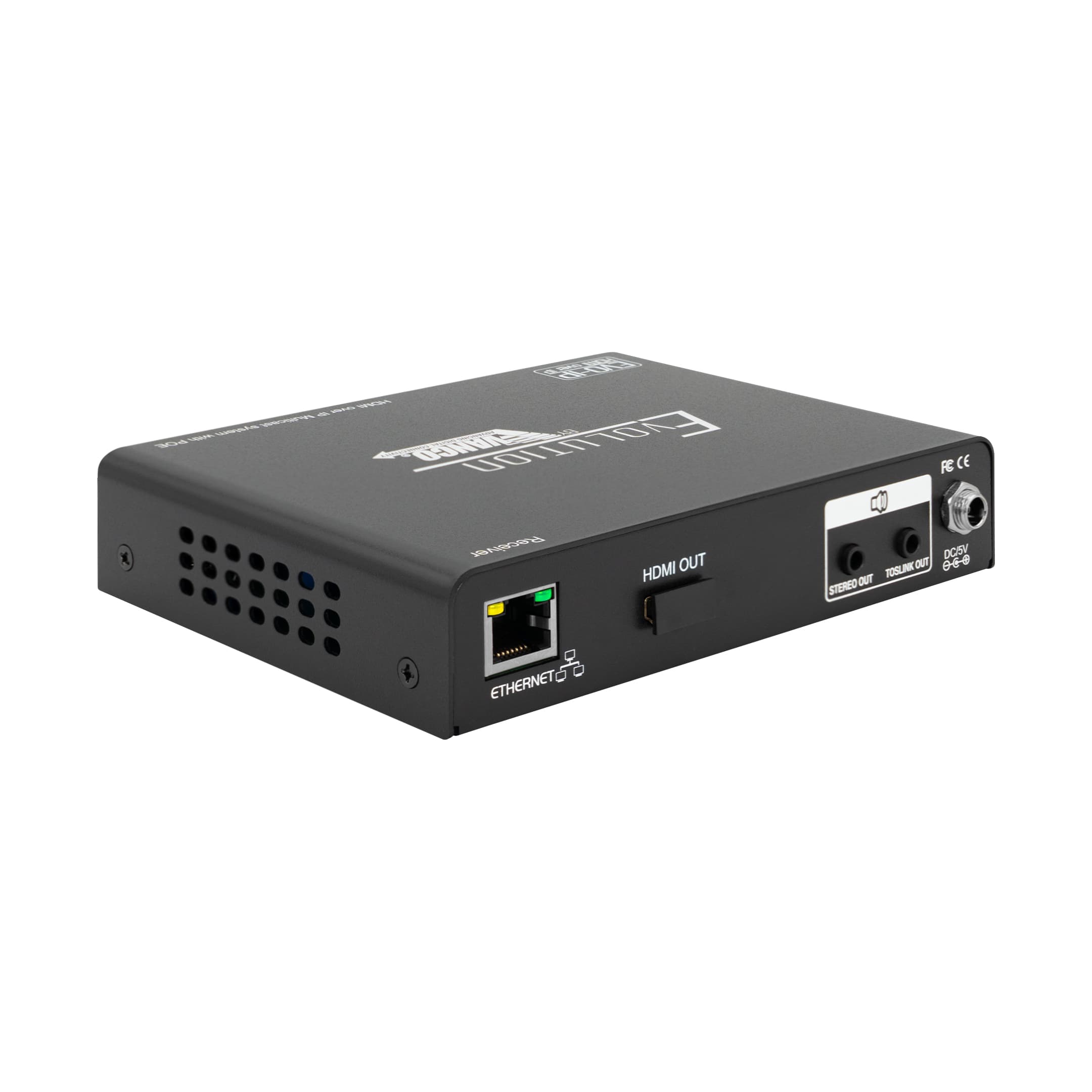

EVO-IP Receiver

SKU: EVOIPRX1 Categories: ,
View EVO-IP API Documentation

Description

  • Supports [email protected], 4:4:4 chroma
  • System can support over 1000 transmitters and receivers
  • HDR10 and Dolby Vision compatible
  • Dolby/DTS/PCM audio formats supported
  • HDCP 2.2/1.4
  • POE or can be powered using provided power supply
  • Manual dip switch configurable for a truly IP-Less installation
  • Easy GUI automatically detects new devices in the system
  • Customizable labels and names of sources and displays
  • Setup through the GUI can be done without a computer even being on site
  • Analog and Digital audio breakouts on TX and RX
  • Upscale to [email protected] or downscale to 720p
  • EDID preset/learning
  • Video Wall mode supports configurations up to 25 displays
  • OSD mode to display text, pictures, or logos on the screen
  • Great for digital signage!
  • Connects to the cloud to schedule events or to troubleshoot a situation remotely
  • Able to be controlled with Alexa enabled products

Tech Support:

Package Contents:

EVOIPTX1, EVOIPRX1, OR EVOIPCTL1 unit (each sold separately)
IR Transmitter (with EVOIPTX1 and EVOIPRX1)
IR Receiver (with EVOIPTX1 and EVOIPRX1)
5V Power Supply (optional, can be used as a redundant power with use of a POE switch)
Set of mounting ears/screws
Product Manual

View EVO-IP API Documentation
View EVO-IP API Documentation

Additional information

Brands

Evolution

View EVO-IP API Documentation
View EVO-IP API Documentation
View EVO-IP API Documentation
