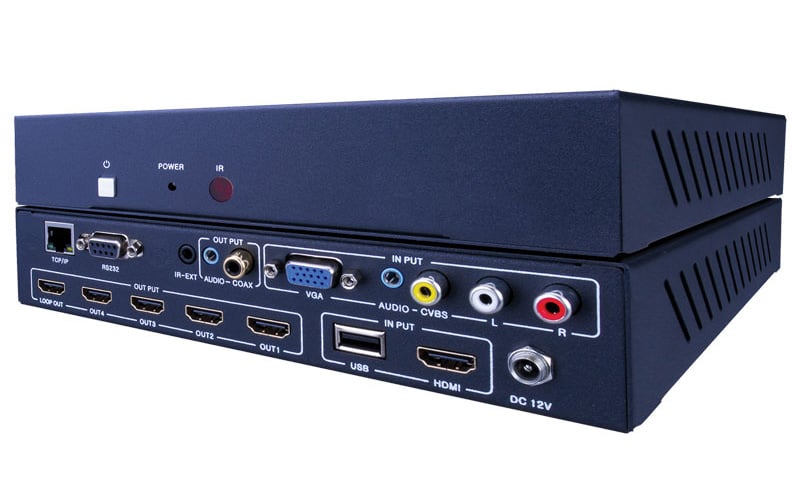

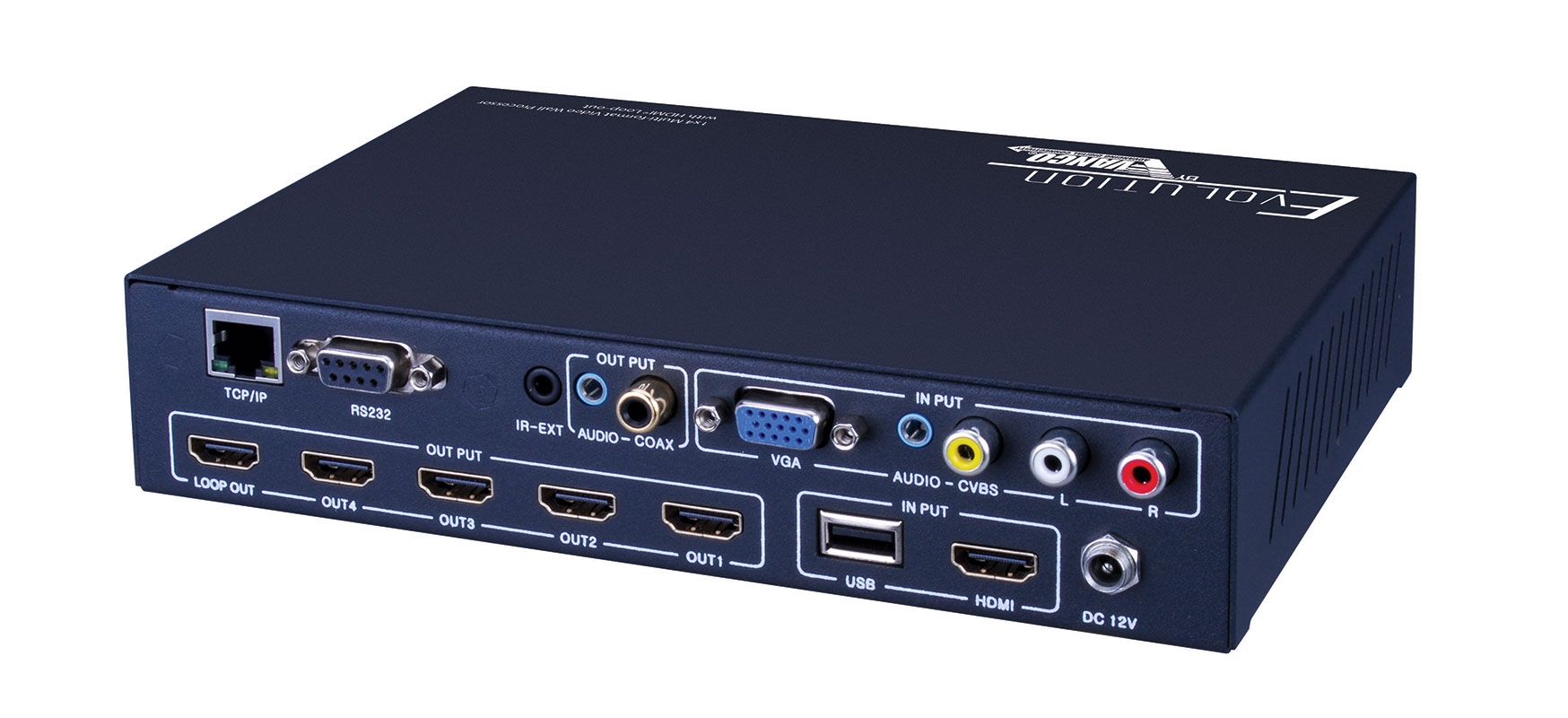

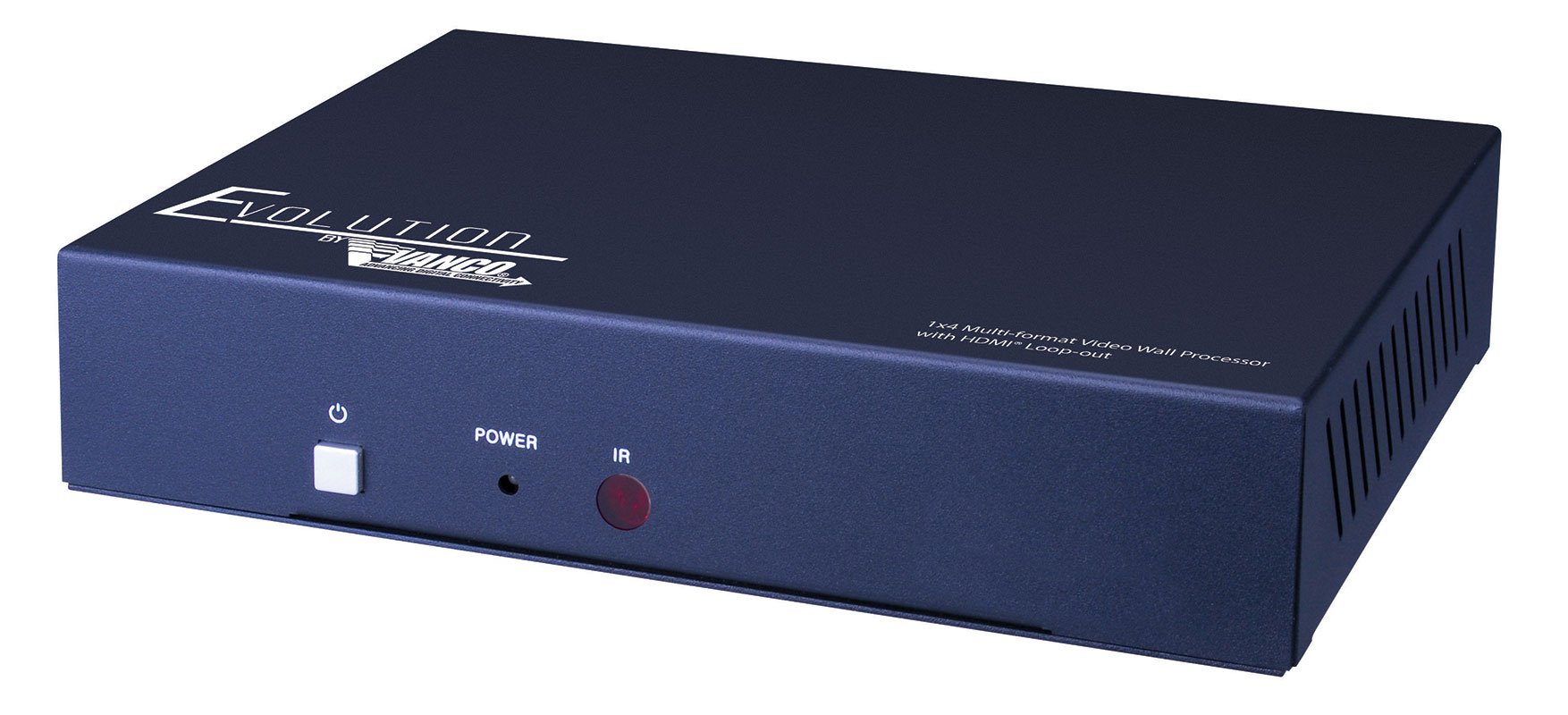

Evolution 1×4 Multi-Format Video Wall Processor with HDMI® Loop-out

SKU: EVSP14VW Categories: ,

Description

  • HDMI 1×4 Video Wall Processor with Additional HDMI Loop-out for creating larger video wall solutions
  • Multi-format functionality supports CVBS/VGA/HDMI inputs and USB for video- picture and music playback

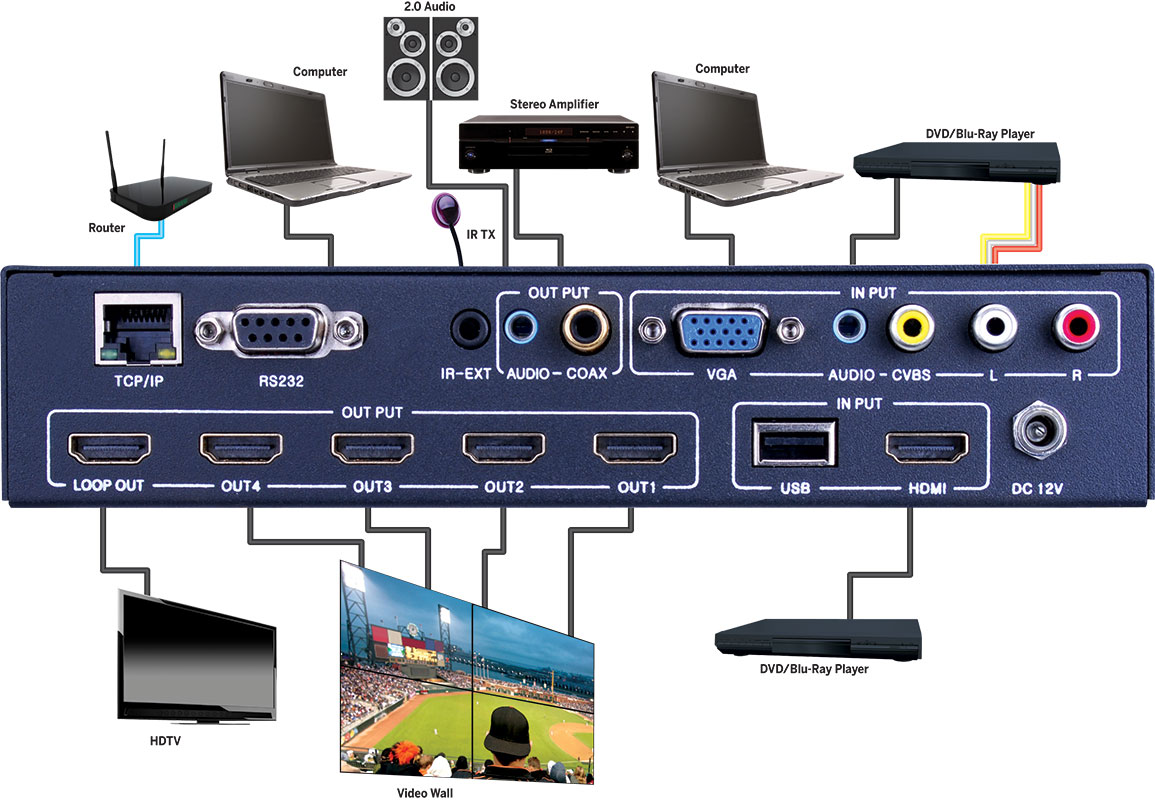

  • A single unit is capable of creating vertical and horizontal video walls in a number of different configurations and is able to be cascaded into additional units for even larger video wall systems
  • Horizontal and vertical bezel correction
  • Supports output resolutions up to 1080p@60Hz
  • Supports IR- TCP/IP- and RS232 controls
  • Compliant with HDMI1.3a- DVI1.0
  • HDCP 1.4
  • VGA/USB/CVBS support PCM audio; HDMI supports LPCM- Dolby- and DTS audio formats
  • Automatic EDID with outputs able to be scaled to: 1024×768- 1360×768- 1080p- and 720p
  • De-interlaced video for improved standard definition content
  • Dimensions: 9.8” W x 1.25” H x 4.6” D

Package Contents:

1×4 Video Wall Processor
IR Receiver (RX)
RS-232 Cable

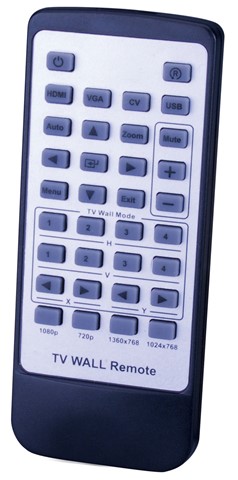

IR Remote
DC 12V/2.5A Power Supply
Product Manual





EVSP14VW Product Manual

Download

EVSP14VW Sales Sheet

Download

EVSP14VW IR Hex Codes

Download

EVSP14VW Multiple Video Wall Configurations

Download

EVSP14VW RS232 and IP Commands

Download

EVSP14VW Software v1.12

Download

EVSP14VW Firmware v1.19 (RS232 only)

Download

EVSP14VW Control4 Drivers

Download

EVSP14VW AMX Drivers

Download

EVSP14VW RTI Drivers

Download

Vanco Crestron V1.02

Download
