Evolution 4K HDBaseT™ 2.0 Extender with ARC and Digital/Analog Audio Breakouts

Evolution 4K HDBaseT™ 2.0 Extender with ARC and Digital/Analog Audio Breakouts

SKU: EVEXHDARC Categories: ,

Description

  • Features HDBaseT™ 2.0 technology- optimized for whole-home or commercial distribution of uncompressed high-definition signals at more than twice the distance of HDMI cables without degradation
  • Capable of sending and receiving resolutions of up to 4K2K@60Hz with YCbCr 4:2:0 up to 330ft/100m using shielded Cat6 Cable or 230ft/70m using unshielded Cat5e Cable
  • Allows audio- video- power- control and Ethernet to be sent over a single category cable up to 100m/328ft
  • Supports PoC (Power Over Cable) function allowing either the TX or RX to power the opposite side when using the provided 24v power supply
  • Supports resolutions up to 4K/60Hz with 4:2:0 color sampling
  • Supports HDBaseT Long Reach (LR) mode to allow 1080p to be transmitted and received up to 492ft/150m

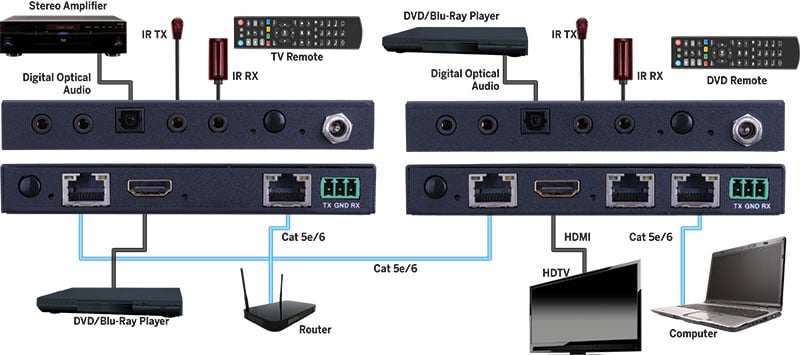

  • ARC functionality allows audio to be received from the HDMI port on the receiver unit to be sent to an amplifier via the optical audio breakout on the transmitter unit
  • Features Digital or Analog audio breakouts for audio extraction
  • Supports pass-through of HD audio formats: LPCM2/5.1/7.1 CH- Dolby Digital- DTS- Dolby TrueHD- DTS-HD Master Audio and more
  • RS-232 pass through with phoenix connector included
  • HDCP 2.2 and DVI 1.0 compatible
  • Wideband bi-directional IR with 38KHz-56KHz frequency range
  • Dimensions: 5” W x .7” H x 4.1” D

Package Contents:

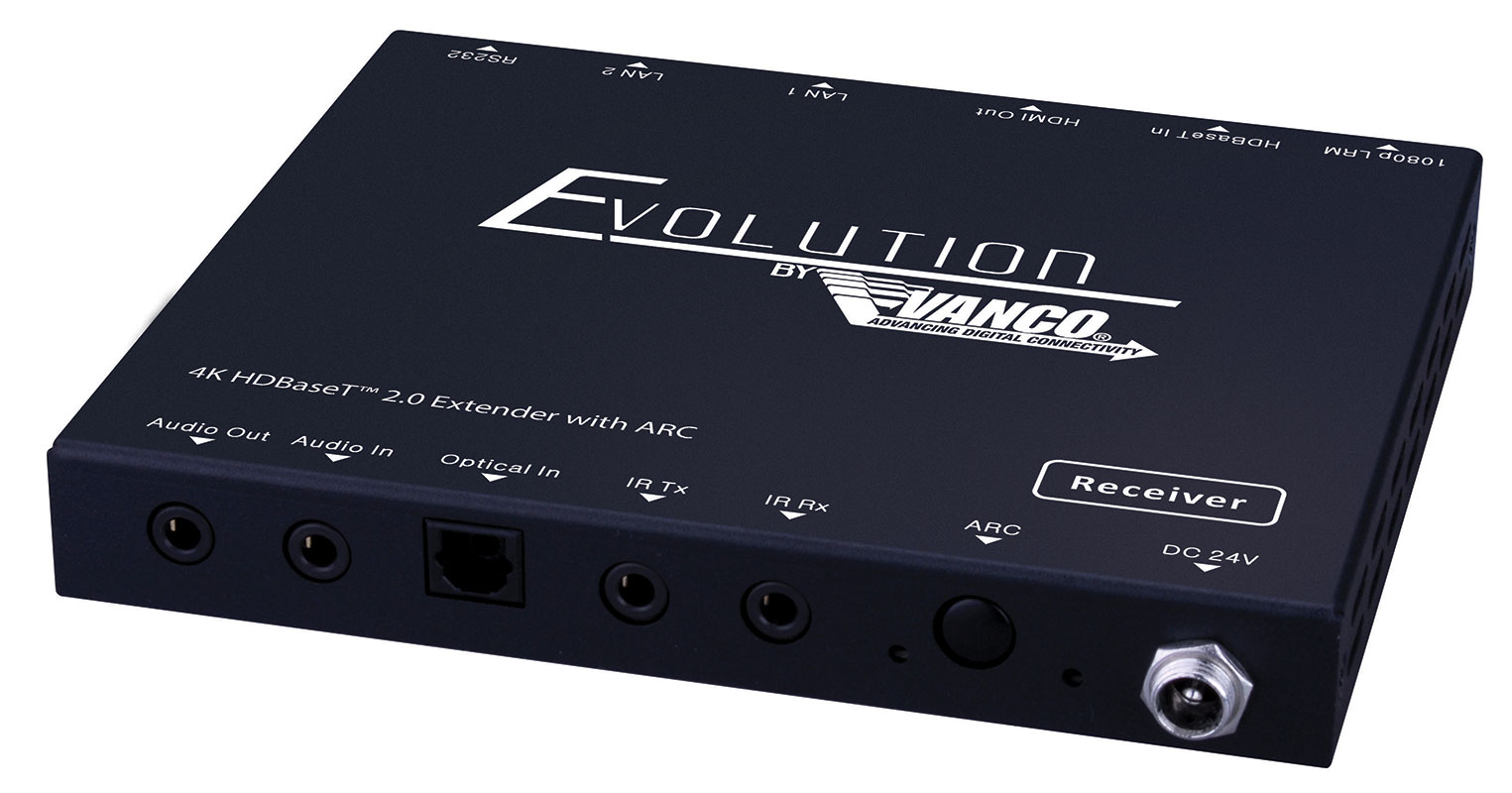

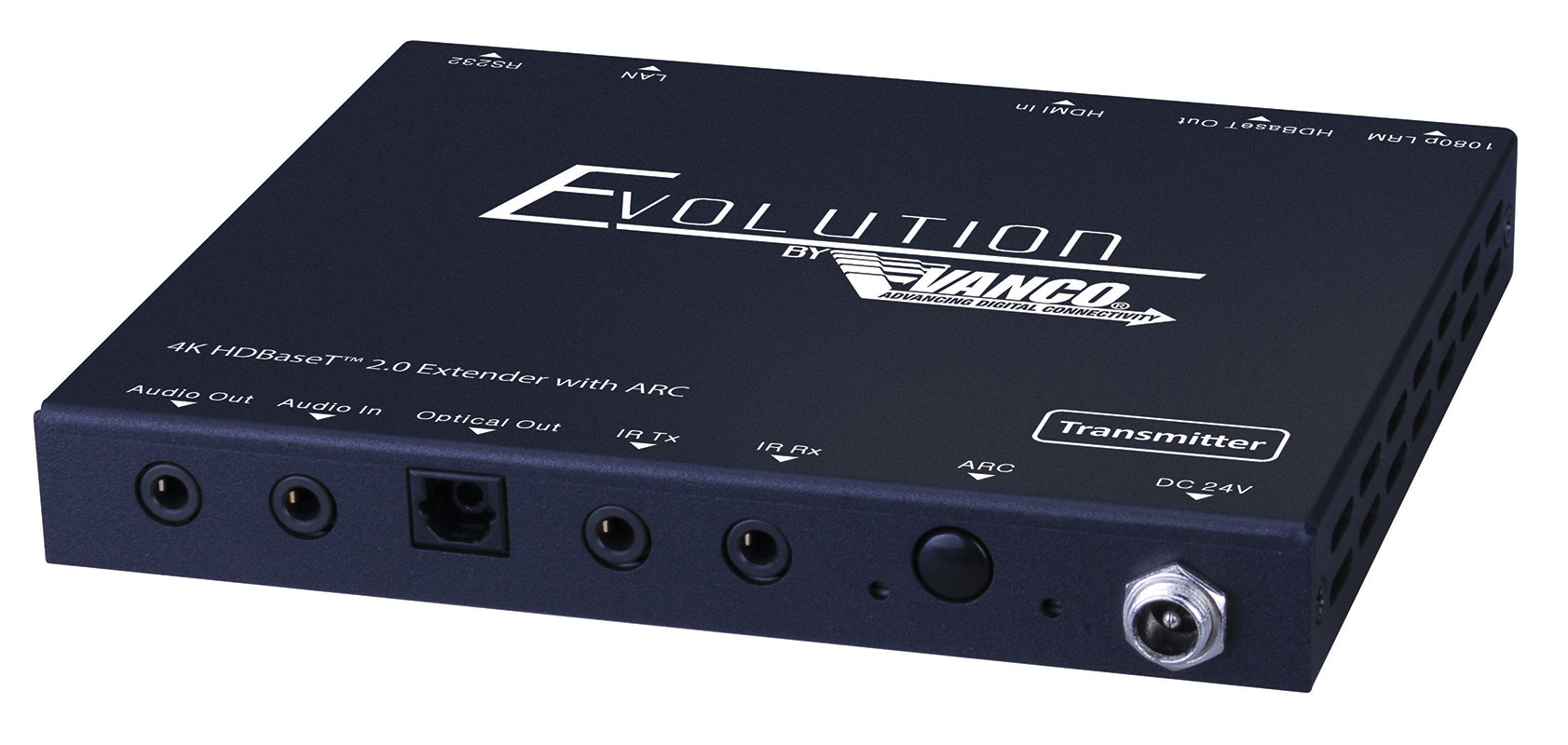

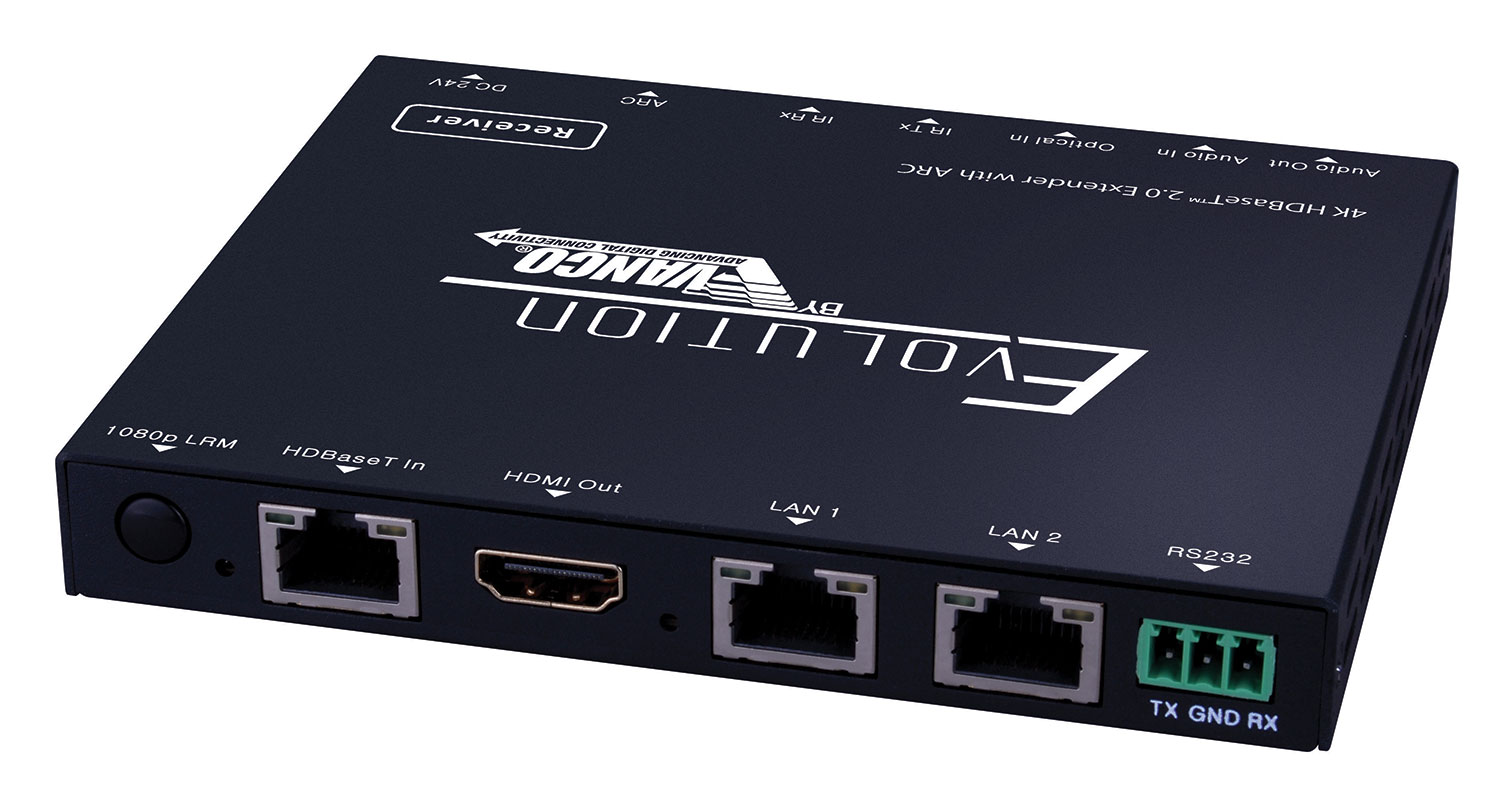

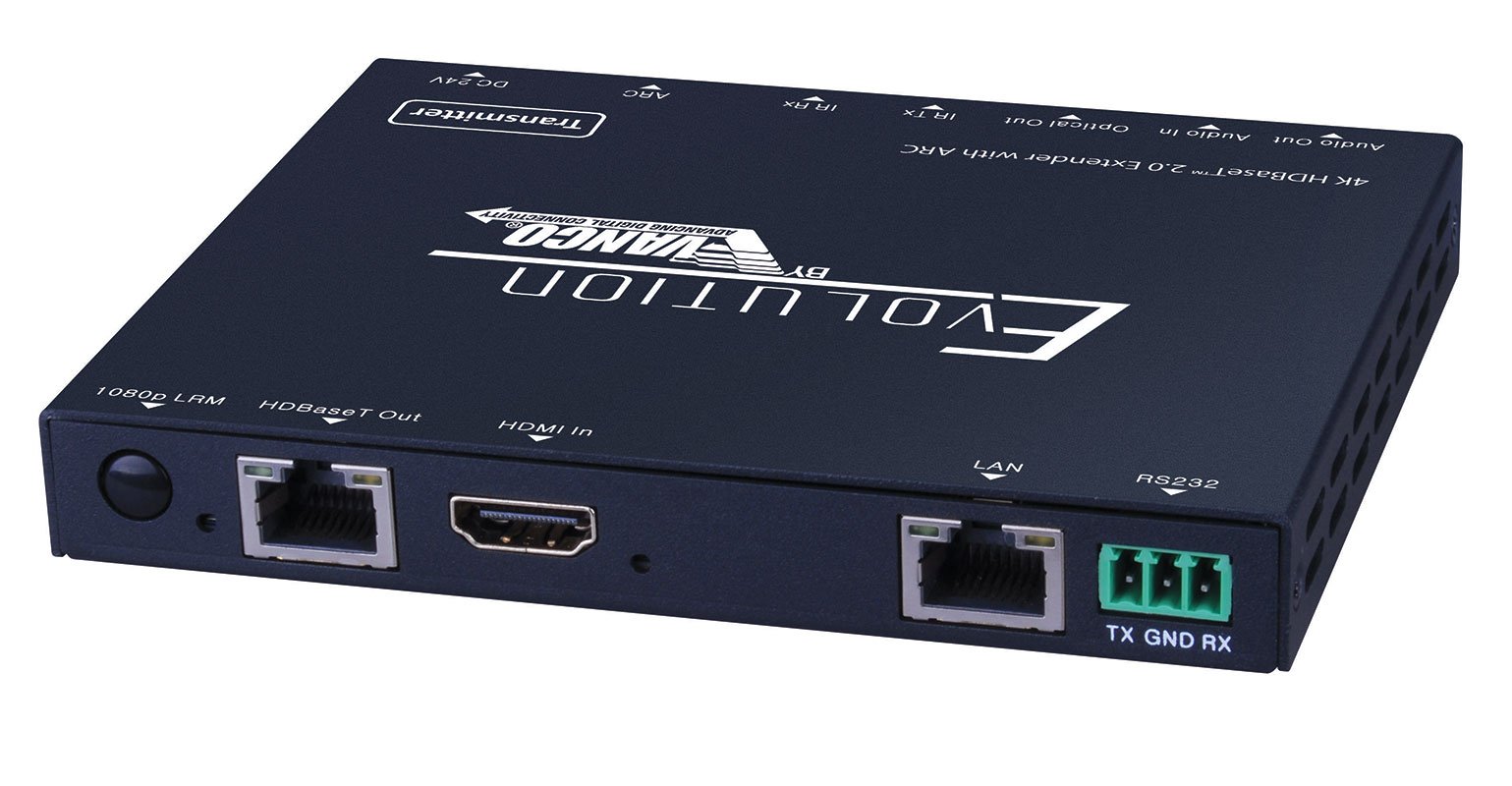

EVEXHDARC (TX & RX)
IR Blaster (TX)
IR Receiver (RX)
(1) DC 24V/1A power supply
Phoenix Connector (for RS-232 pass-through)
Product Manual



Additional information

Type

Technology

HDBaseT

Resolution

4K@60Hz

Transmission Distance

331 – 500 ft
