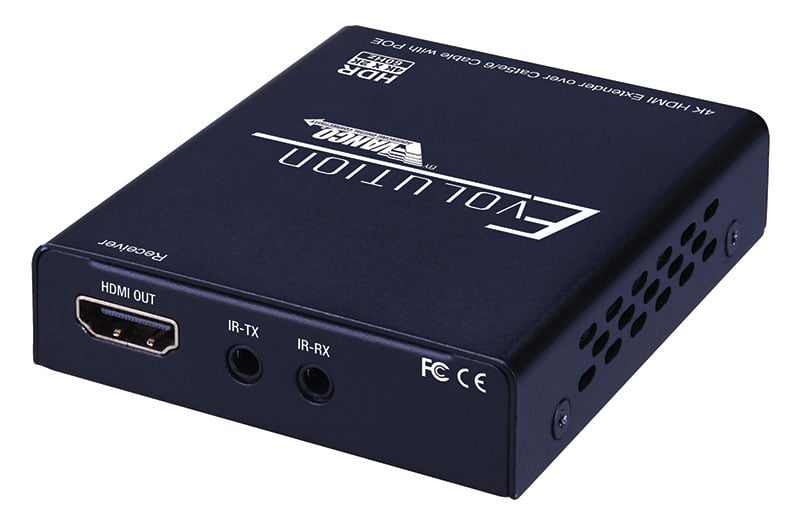

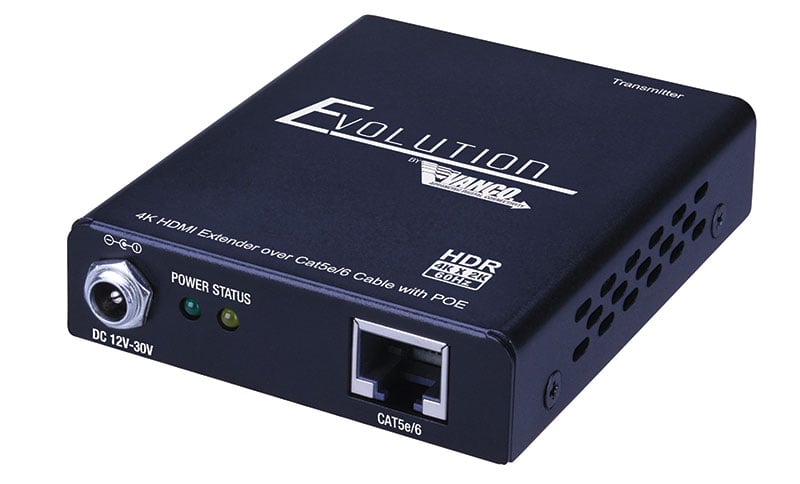

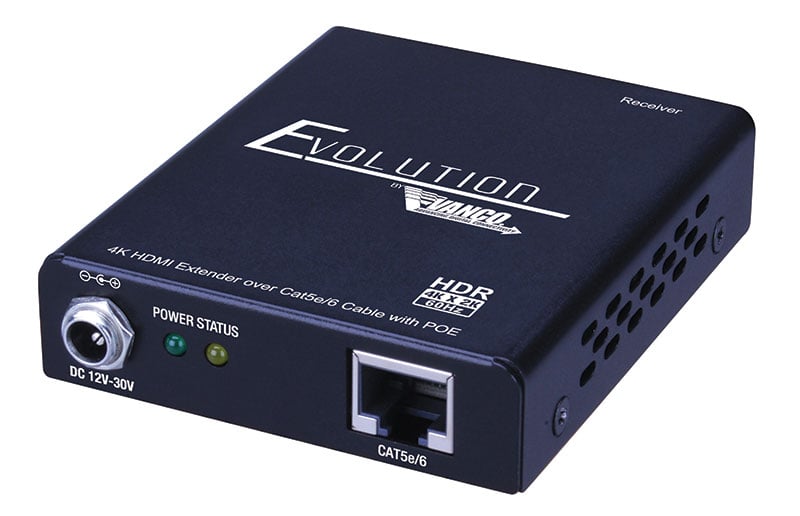

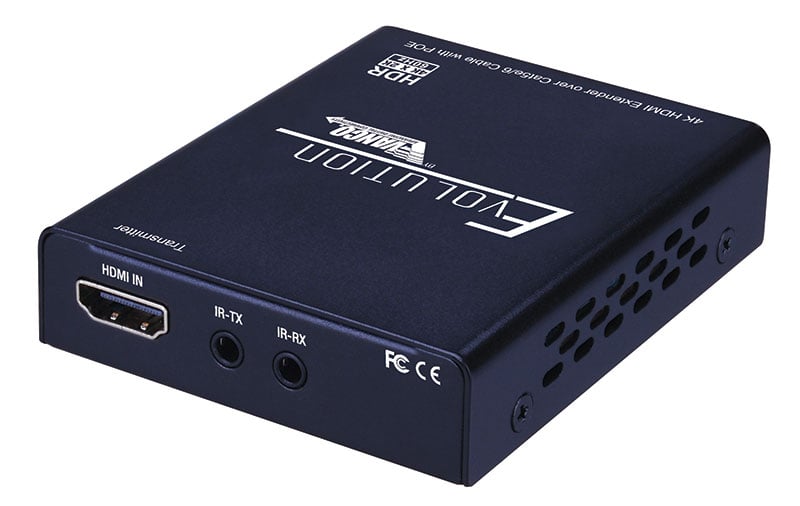

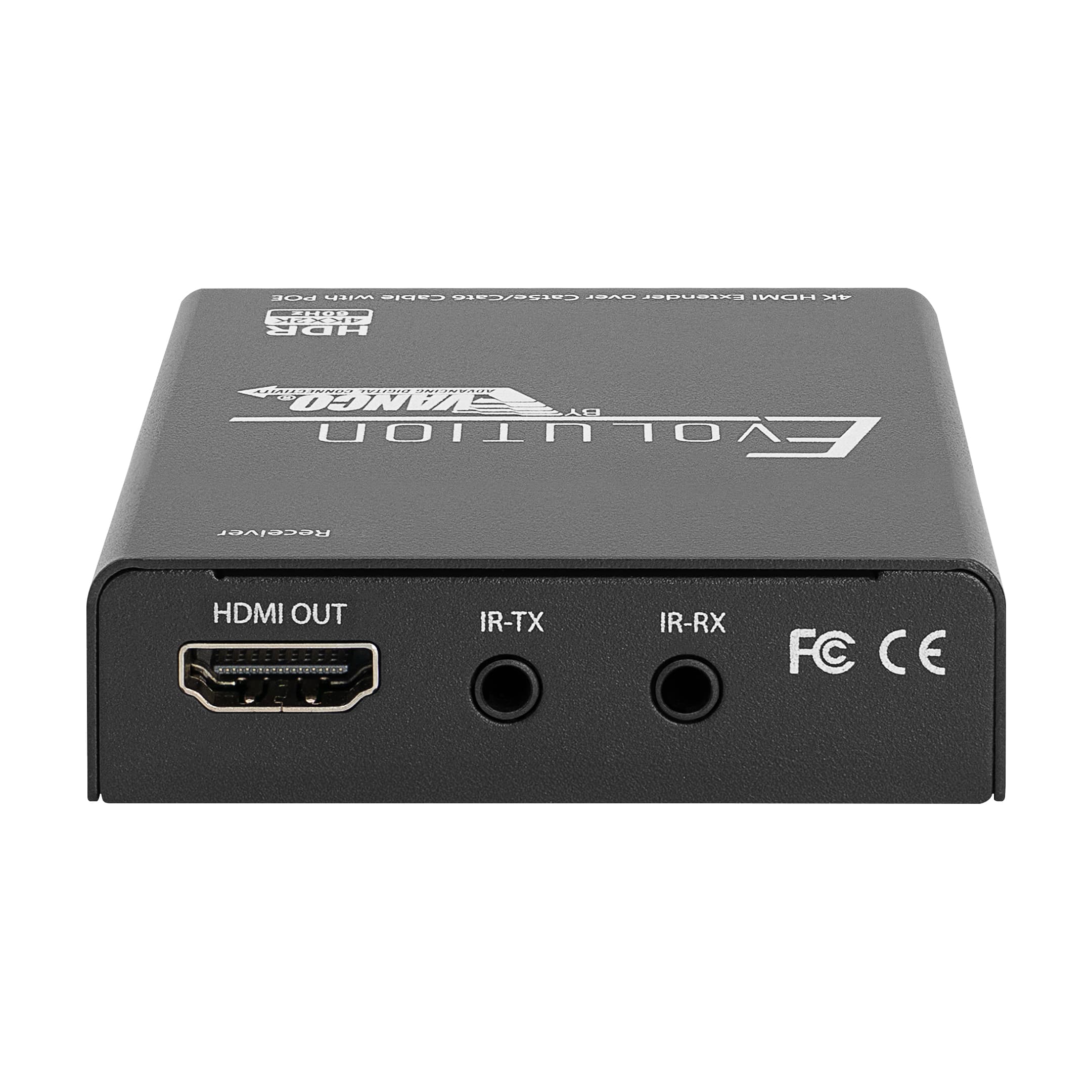

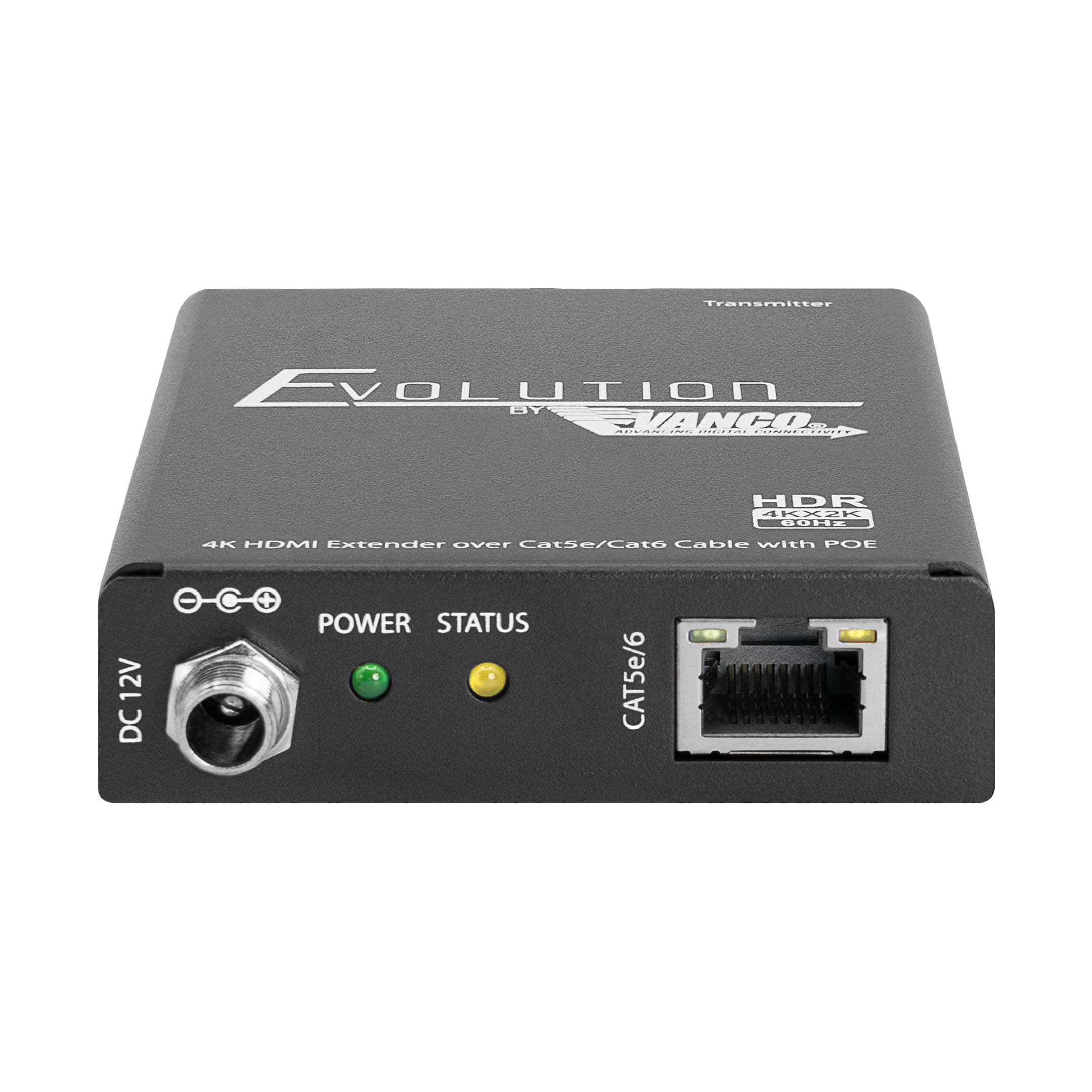

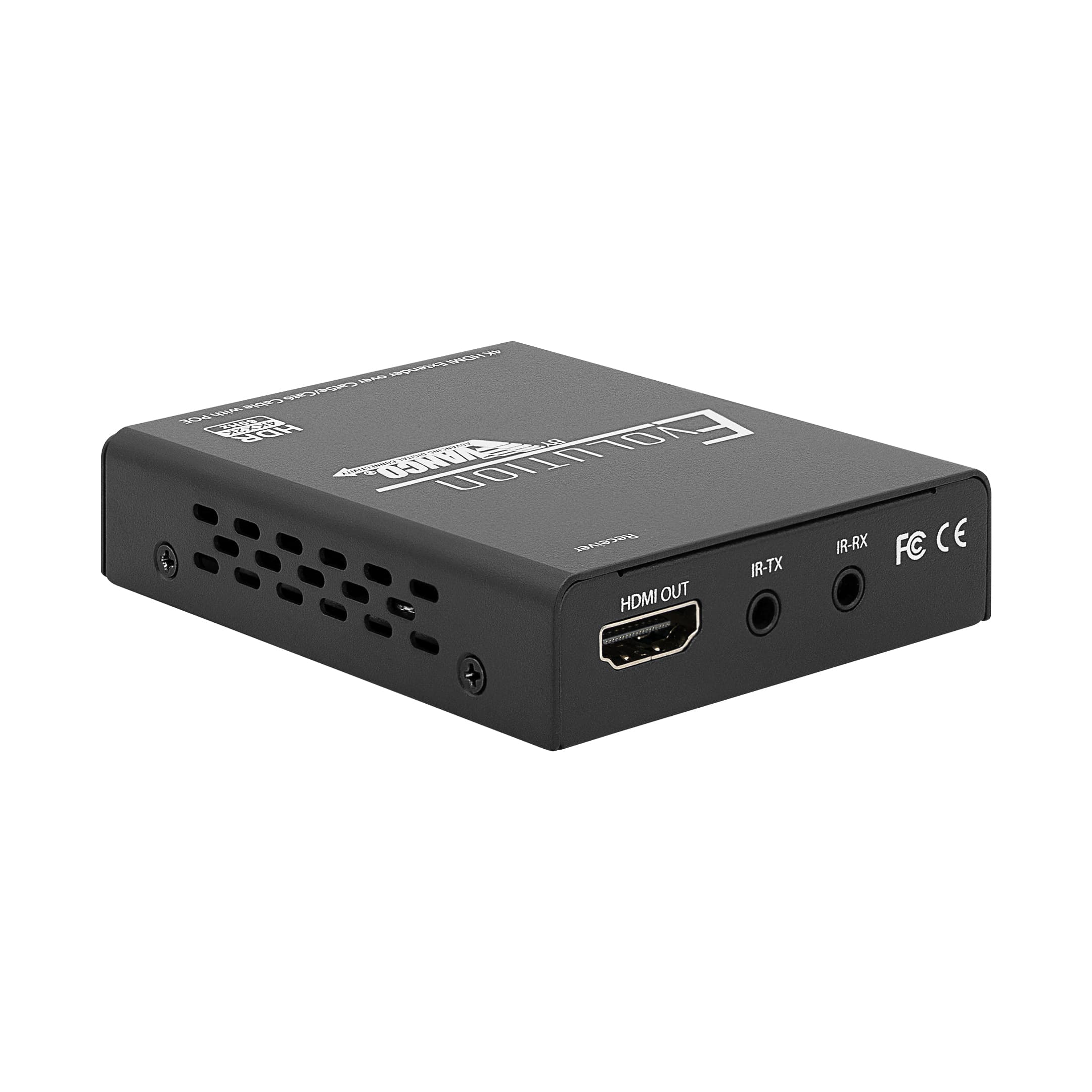

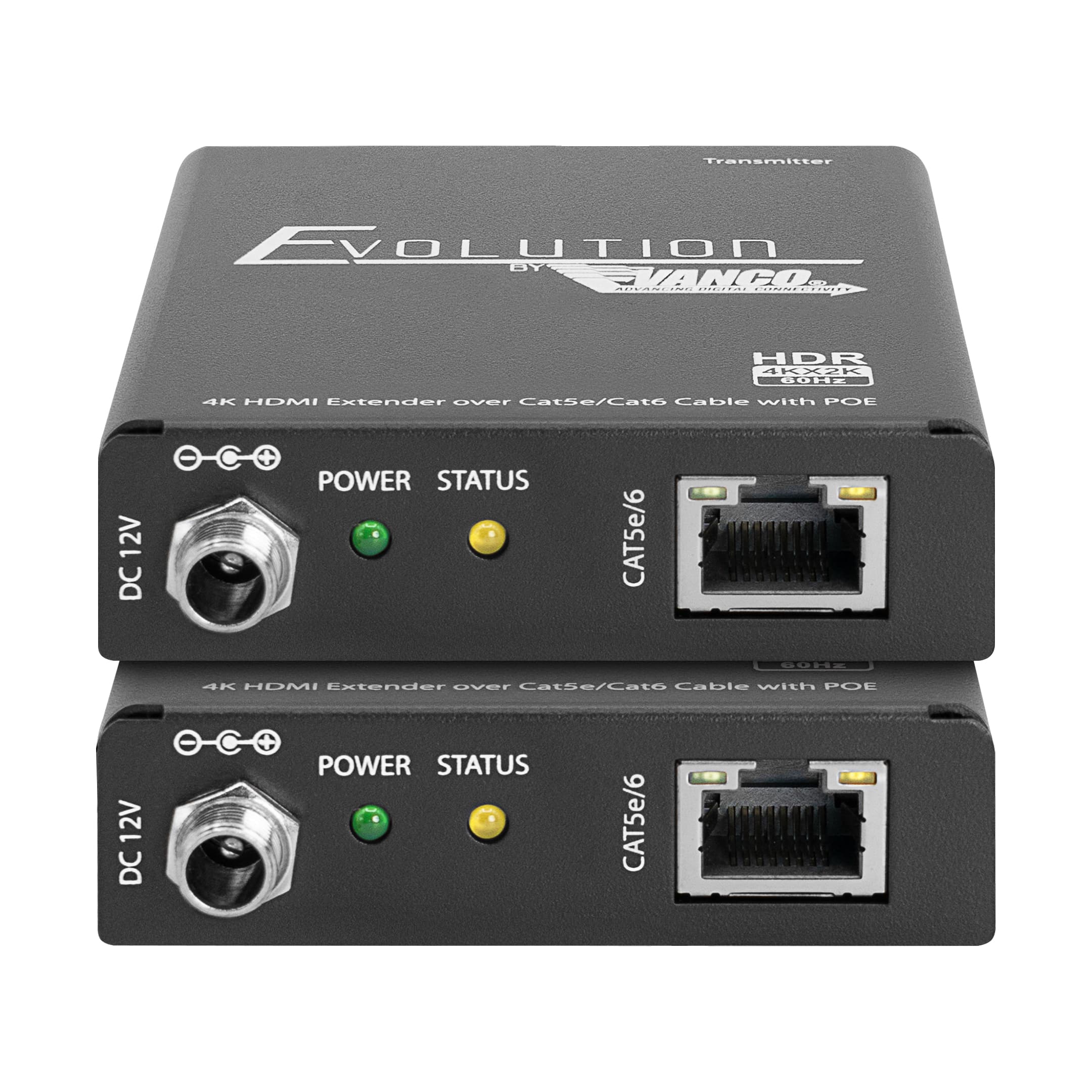

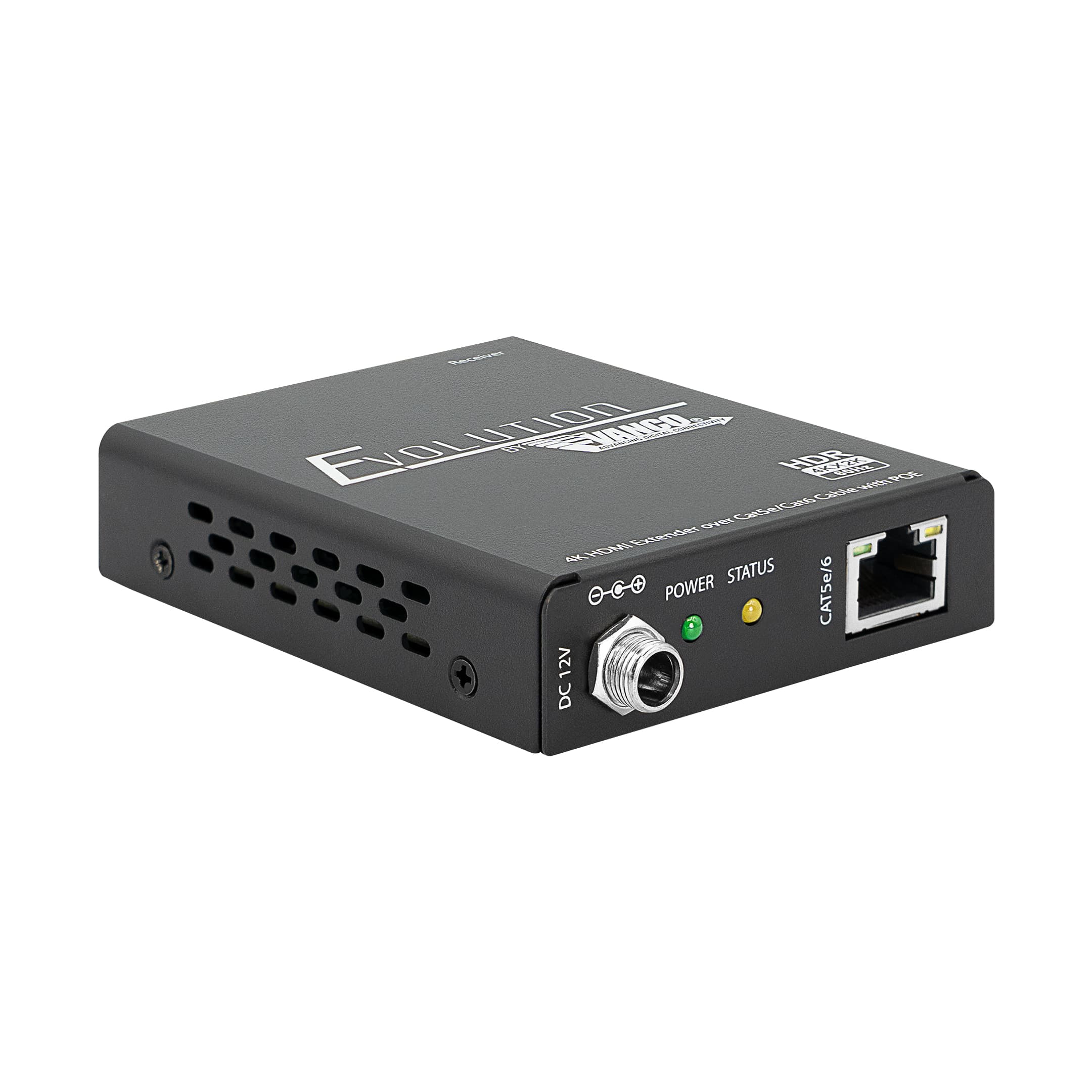

Evolution 4K HDMI Extender

SKU: EV4K2006 Categories: , ,

Description



View Our Extender Comparison Guide



  • Allows HDMI audio/video signals to be transmitted using a single Cat5e or Cat6 Cable
  • Transmission Range: Extends [email protected], 4:4:4 Chroma up to 164ft/50m and [email protected], 4:4:4 Chroma and HDR up to 130ft/40m over a single Cat5e/6 cable
  • Features Power over Ethernet (PoE) Technology which transmits power over Cat5e/Cat6, allowing the transmitter and receiver to be powered off of a single power supply
  • Wideband Bi-directional IR system allowing for control of source or display (IR accessories included)
  • Wideband IR signal from 20KHz to 60KHz
  • Features Auto EDID and EQ Management for plug and play installation
  • HDR10 Compatible
  • Works with HDMI and HDCP compliant devices
  • HDCP 2.2 compliant
  • Slim and compact design
  • Pure uncompressed 7.1ch digital audio
  • Supports DTS-HD and Dolby TrueHD high bit rate audio
  • Dimensions: 2.7” (68.58mm) W x .7” (17.78mm) H x 3.25” (82.55mm)

Tech Support Tips:

    • Not recommended to be used with other HDMI distribution products such as splitters and matrix units. Evolution HDBaseT extenders are recommended for combining with HDMI distribution products
    • Recommended to be used with a permanent source, or non-rotating source. For any rotating source such as a conference room type setup, it is recommended to use an HDBaseT extender
    • HDMI UHD Deep Color mode on some LG displays may need to be deactivated to avoid video signal issues
    • Input Signal Plus on some Samsung displays may need to be deactivated to avoid video signal issues

Package Contents:

EV4K2006 (TX & RX)

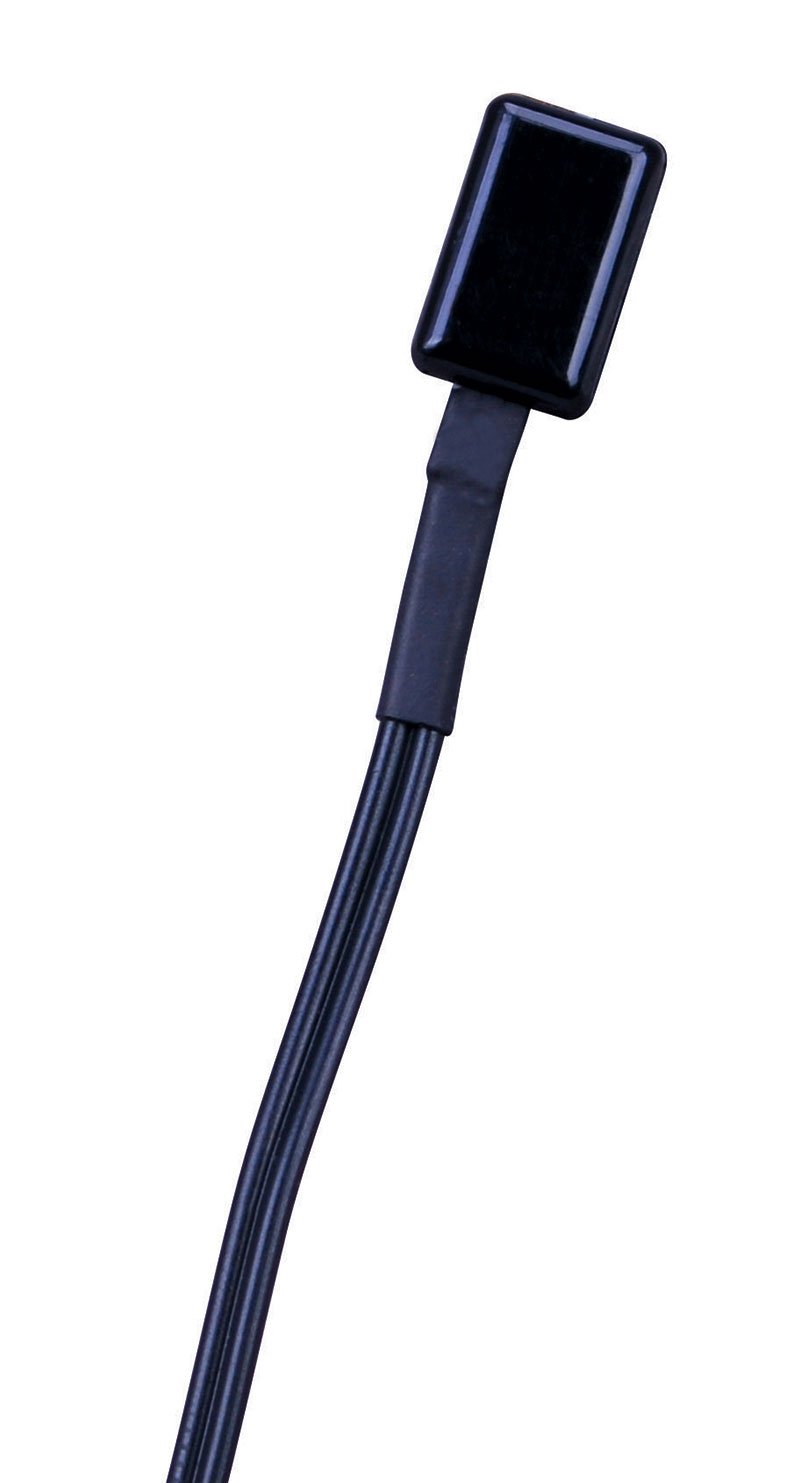

(2) IR Blasters (TX)

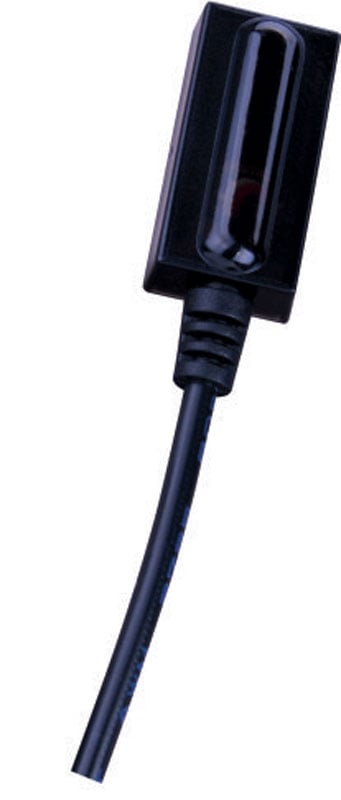

(2) IR Receivers (RX)
(1) DC 12V in line power supply
Product Manual

Additional information

Weight 1.55 lbs
Dimensions 9 × 6 × 2 in
Type

Technology

HDMI

Brands

Evolution

Resolution

[email protected] HDR

Transmission Distance

51 – 164 ft

EV4K2006 Product Manual

Download

EV4K2006 Sales Sheet

Download
