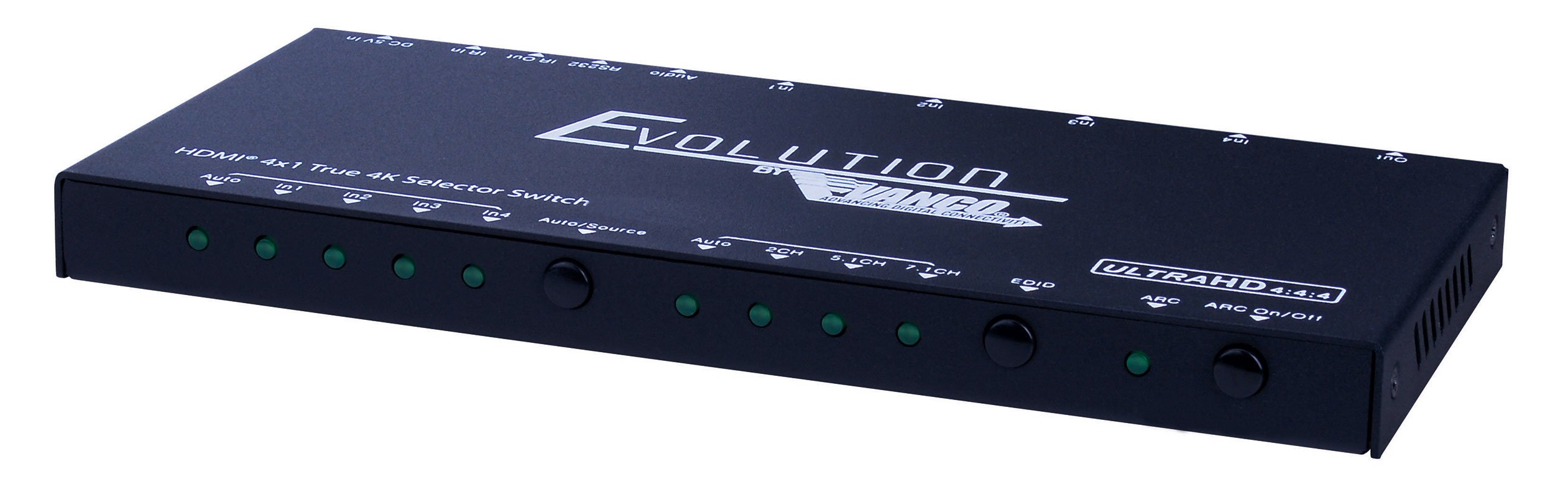

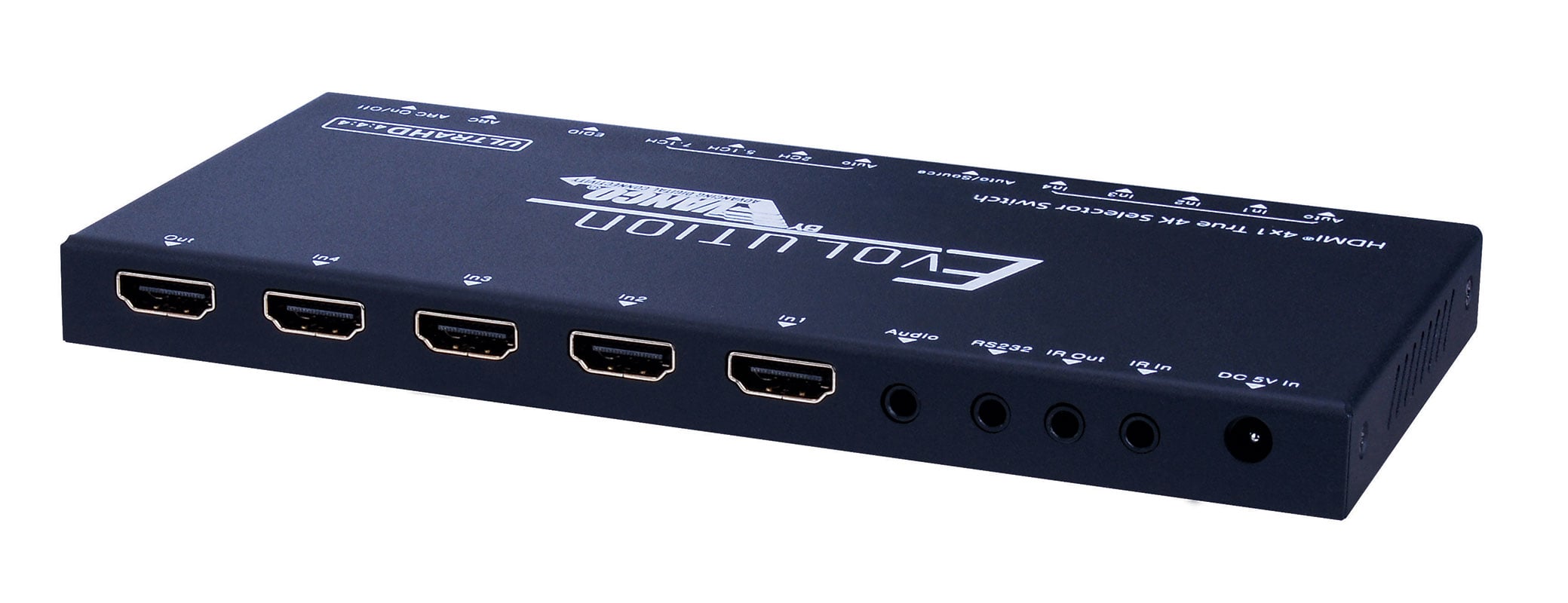

Evolution 4K 4×1 HDMI® Switch with ARC and HDR

SKU: EVSW1042 Categories: , ,

Description

  • Supports 4K2K (2160p @60Hz w/ 4:4:4 color sampling) Ultra High Definition Resolutions
  • Supports HDR (High Dynamic Range)
  • Features Audio EDID management which allows selection of preferred audio channel
  • Supports auto switching or manual switching mode
  • IR pass-through for source control with included IR accessories
  • Controllable via RS-232 and/or IR
  • Supports ARC (Audio Return Channel) and CEC (Consumer Electronic Control) functionality
  • Supports PCM- Dolby TrueHD- and DTS-HD Master Audio up to 7.1 CH audio formats
  • Digital and analog audio outputs for audio extraction
  • HDCP 2.2 compliant
  • 5V DC Power Supply
  • Dimensions: 7” W x .5” H x 3.3” D

Product Contents:

EVSW1042 4×1 HDMI Switcher
5V/1A USB Power Adapter
5V USB to DC Power Supply cable

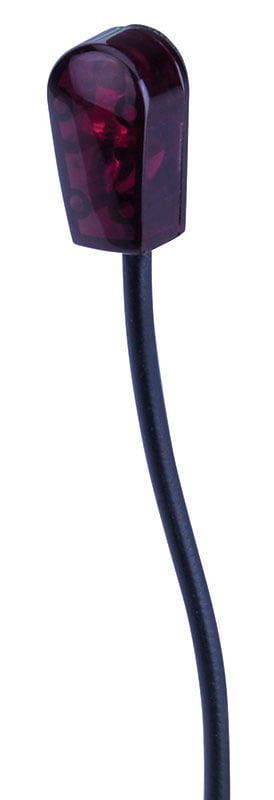

IR Receiver

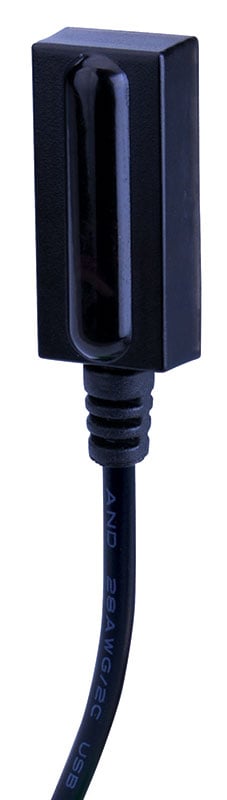

(4) IR Transmitters
3.5mm Stereo (male) to 4- 3.5mm Stereo (Female) for IR OUT (WIR-1X4)
Optical convert adapter (for SPDIF audio output)
IR Remote
Product Manual



Additional information

Weight 1.65 lbs
Dimensions 10 × 7.5 × 2.25 in
Inputs/Outputs

4×1

Resolution

4K@60Hz

Brands

Evolution

EVSW1042 Product Manual

Download

EVSW1042 Sales Sheet

Download

EVSW1042 IR Hex Commands

Download

EVSW1042 RS232 Protocol and Commands

Download

EVSW1042 Control4 Drivers

Download

EVSW1042 AMX Drivers

Download

EVSW1042 RTI Drivers

Download

EVSW1042 Crestron V1.02

Download

EVSW1042 Software

Download

EVSW1042 Elan Driver

Download
