Evolution 6×1 Multi-Format Scaler Switcher

SKU: EVSW1061 Categories: , ,

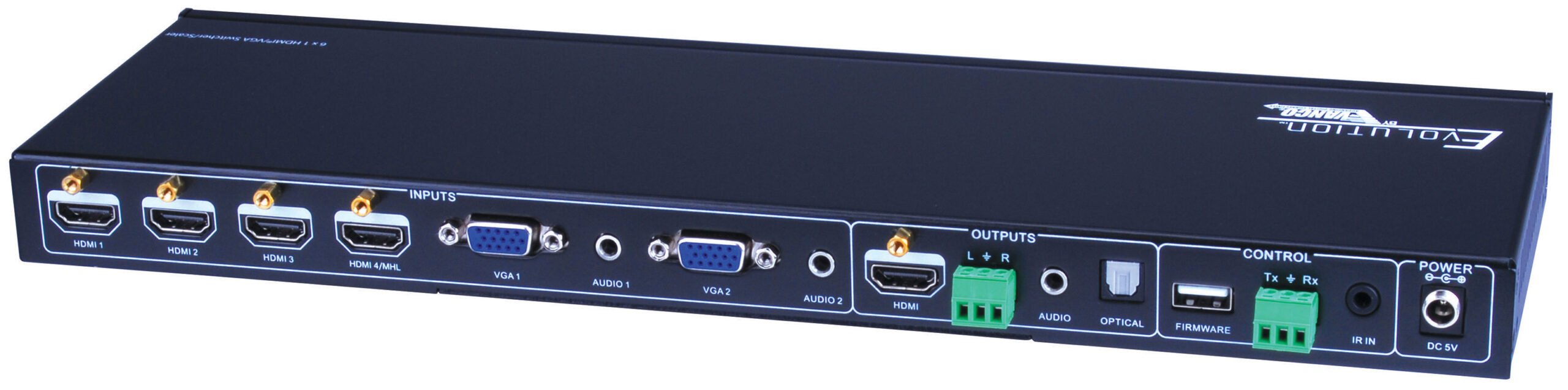

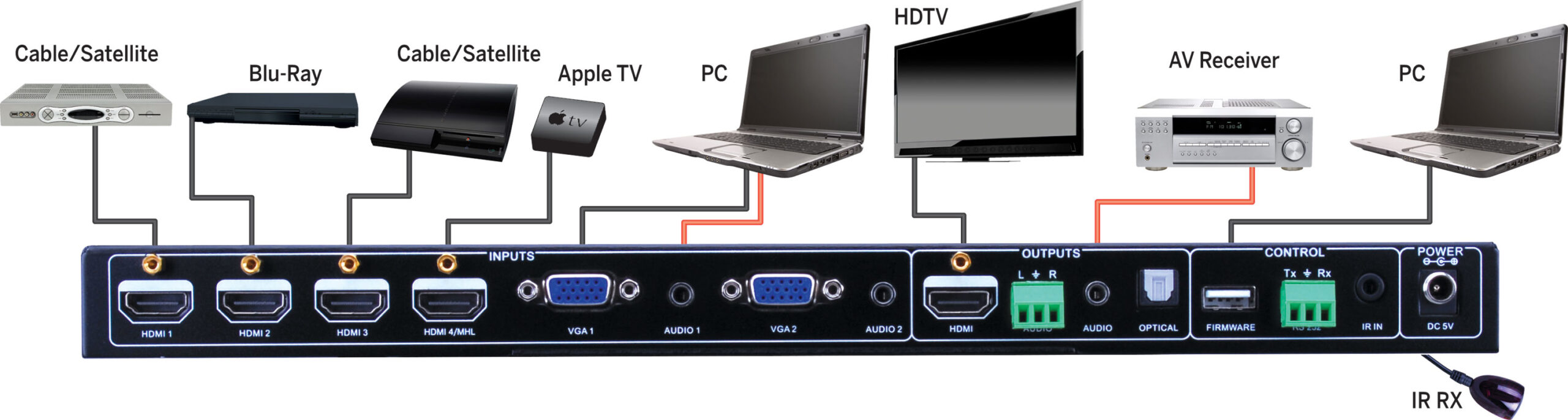

  • Compact 6×1 multi-format switcher with 6 video inputs (3 HDMI- 2 VGA- 1 HDMI/MHL)- 2 auxiliary audio inputs mirrored to the VGA inputs- 1 HDMI output and 3 audio outputs (1 dual-mono analog audio- 1 3.5mm stereo audio- 1 optical audio)
  • Switches VGA or HDMI/DVI/MHL input signals to HDMI output
  • Scales to 6 different resolutions- VGA to HDMI output – Output resolutions selectable to assure preferred output. Supports various output resolutions- such as 1920×1200- 1920×1080- 1360×768- 1280×800- 1024×768- 1280×720
  • Bypass HDMI feature provides comprehensive resolution capacities up to 4K & 1080p 3D
  • Transmits 4K/UHD @ 30 HZ up to 50 ft. / 15m
  • Supports RS232 and IR control
  • Supports advanced EDID management
  • Supports MHL 2.0- Maximum Resolution 1080p
  • MHL auto detection- Supports device charging over MHL- maximum 5V 900mA
  • HDCP 1.4 Compliant
  • Two input switching modes: auto-switching or manual-switching

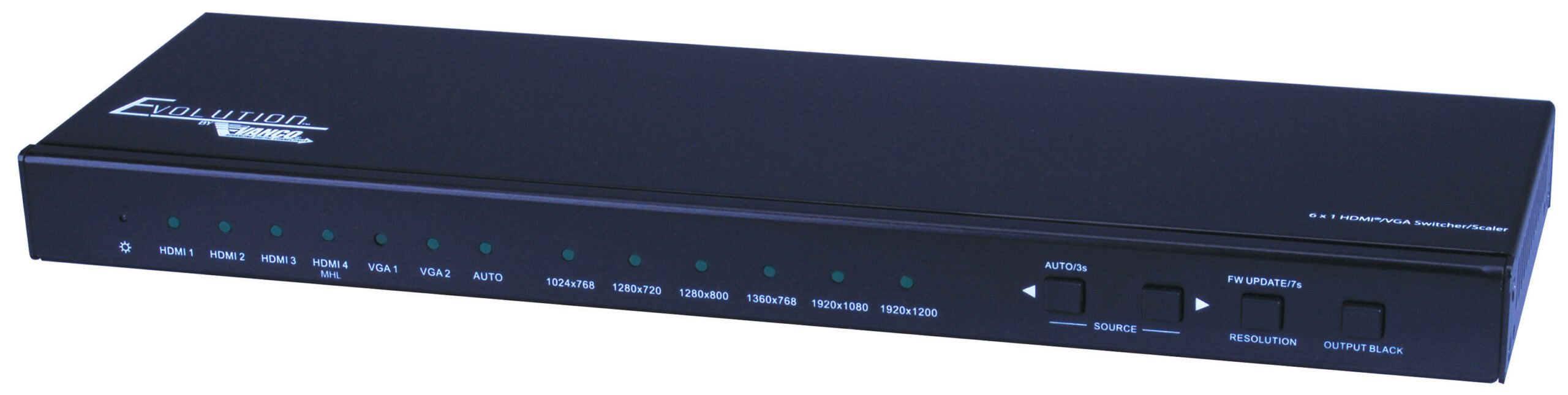

  • Intuitive indicator for power connect states- source selection- and output resolution selection
  • Supports Audio and Video output management via Output Black button
  • Features a Type A USB port for Firmware upgrades
  • Compact design for easy operation- works in a variety of applications from security monitoring- conference rooms- classrooms- control center and smart homes
  • Features off memory for reliable operation – input and output mapping is automatically stored and recalled when the unit is powered on and off and in the event of a power outage
  • Supports hot plug
  • Dimensions: 13.7” W x 1.1” H x 4.3” D

Package Contents:

EVSW1061 Scaler Switcher
IR Receiver
IR Remote
DC 5V 3A Power Supply
Mounting Hardware
(2) 3-pin Pluggable terminal blocks
Product Manual


Additional information

Weight 2.95 lbs
Dimensions 16.5 × 9.25 × 3.75 in






EVSW1061 Product Manual


EVSW1061 Sales Sheet


EVSW1061 IR HEX Commands


EVSW1061 RS232 Commands and Protocol


EVSW1061 Control4 Drivers


EVSW1061 AMX Drivers


EVSW1061 RTI Drivers


Vanco Crestron V1.02
