Evolution Custom HDMI® PoE Extender over Cat5e/Cat6 Cable

SKU:   Categories: ,


  • Transmits HDMI video- audio- control and power through single Cat5e or Cat6 cable
  • Mix and Match Transmitters with POE Receivers to create a customer extender set
  • Features Power over Ethernet (PoE) Technology which transmits power over Cat5e/Cat6- allowing the transmitter and receiver to be powered off of a single power supply
  • Features Auto EDID and EQ Management for plug and play installation
  • Wide band Bi-directional IR system allowing for control of source or display (IR accessories included)
  • Wide band IR signal from 20kHz to 60kHz
  • Transmission Range: Extends HDMI transmission up to 50m (164ft) from the HDMI source at Full HD 1080p 24-bit color and 3D
  • Works with HDMI and HDCP compliant devices
  • Pure uncompressed 7.1ch digital audio
  • Supports DTS-HD and Dolby TrueHD high bit rate audio
  • Supports EDID call back and CEC pass through
  • VESA DDC and hot swap technology
  • Allows cascading to create a larger distribution system
  • Fully compatible with any Evolution by Vanco product

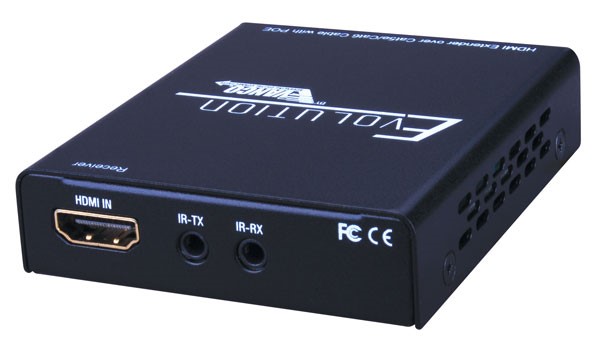

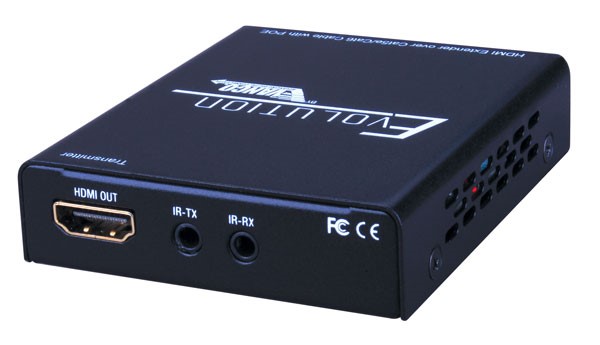

  • Metal Housing Dimensions: 2.7″ (68.58mm) W x .7″ (17.78mm) H x 3.25″ (82.55mm) D

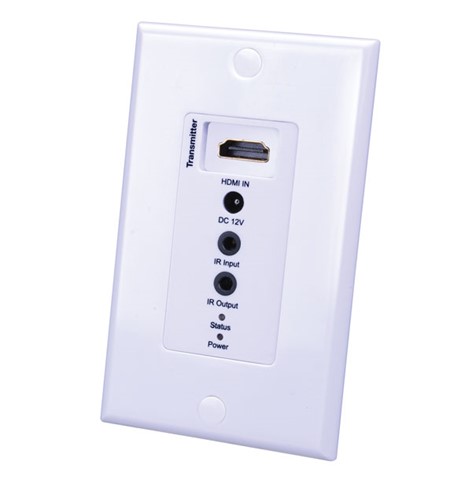

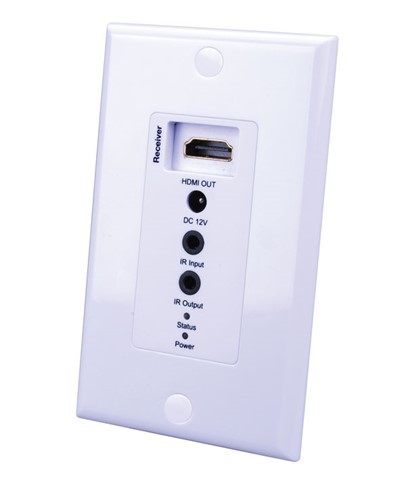

  • Wall Plates fit easily into a single gang low-voltage box
  • Patent No. 9,710,038 B1
  • Transmission Distance: 51 – 164 ft.

Transmitters Include:

Transmitting Unit
IR TX and RX set
12V DC Power Supply

Receivers Include:

Receiving Unit
IR TX and RX set
