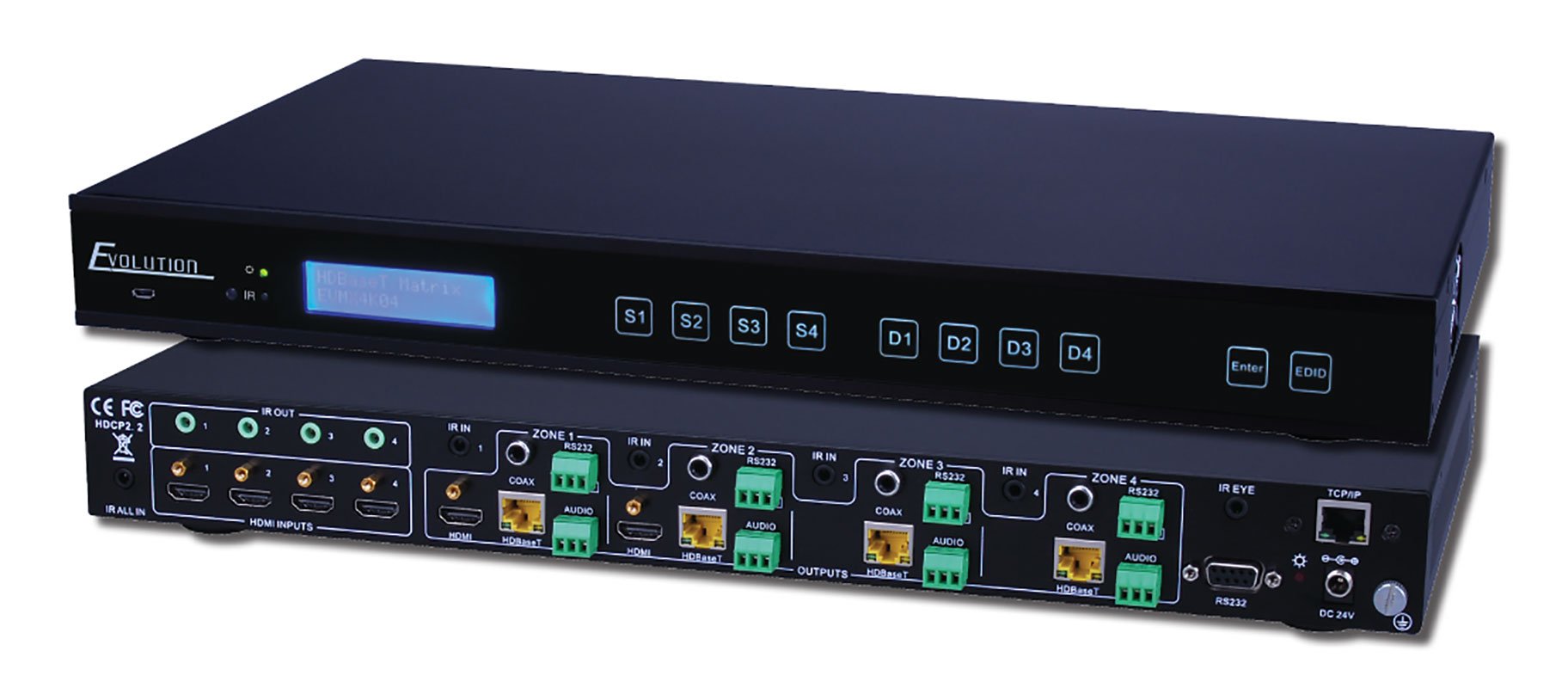

Evolution HDBaseT™ 4K 4 x 4 Matrix Selector Switch

SKU: EVMX4K04 Categories: ,

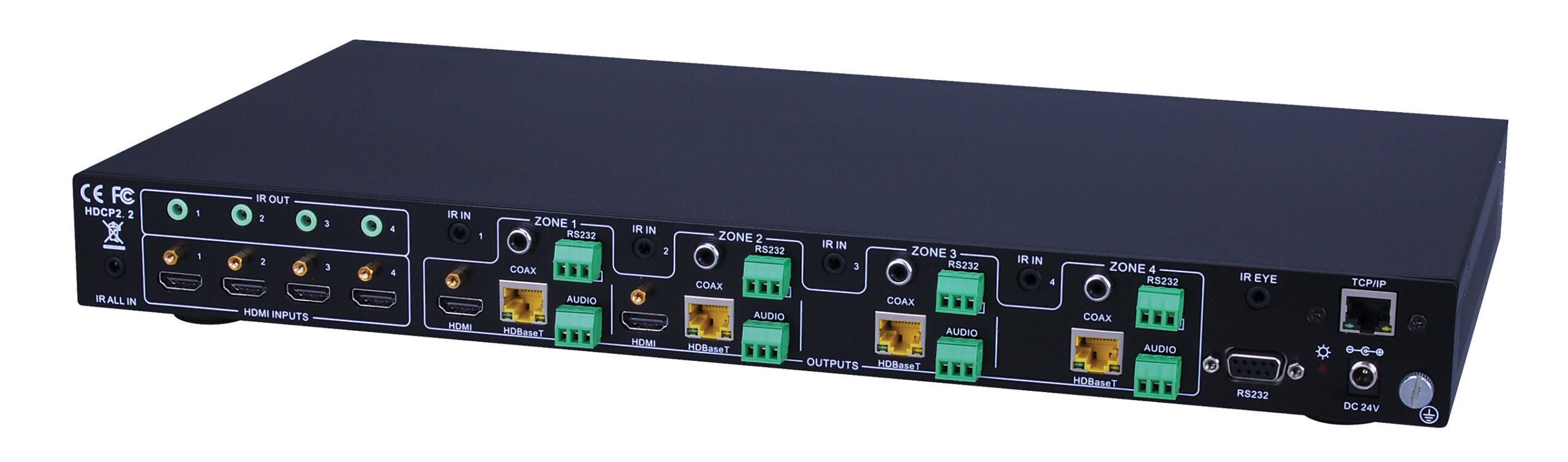

  • 4K HDBaseT 4×4 Matrix Selector Switch that accommodates 4 HDMI inputs- 4 HDBaseT outputs with 2 mirrored HDMI outputs- and 4-analog audio outputs- with IR RS232 zone as well as IR- RS232 and IP control for the matrix
  • Supports 4Kx2K @ 60Hz & 1080p 3D signals
  • Transmits 4Kx2K signal for 26 ft (8m) via HDMI port and 131 ft (40m) via HDBaseT port
  • Transmits 1080p signal 230 ft (70m) via HDBaseT port
  • Features POC (Power over Cable) technology- providing power for the receivers – Receivers sold separately- Part # EVRXHD1
  • HDCP 2.2 compatible- supports manual HDCP management and auto-detecting
  • Powerful EDID management and EQ

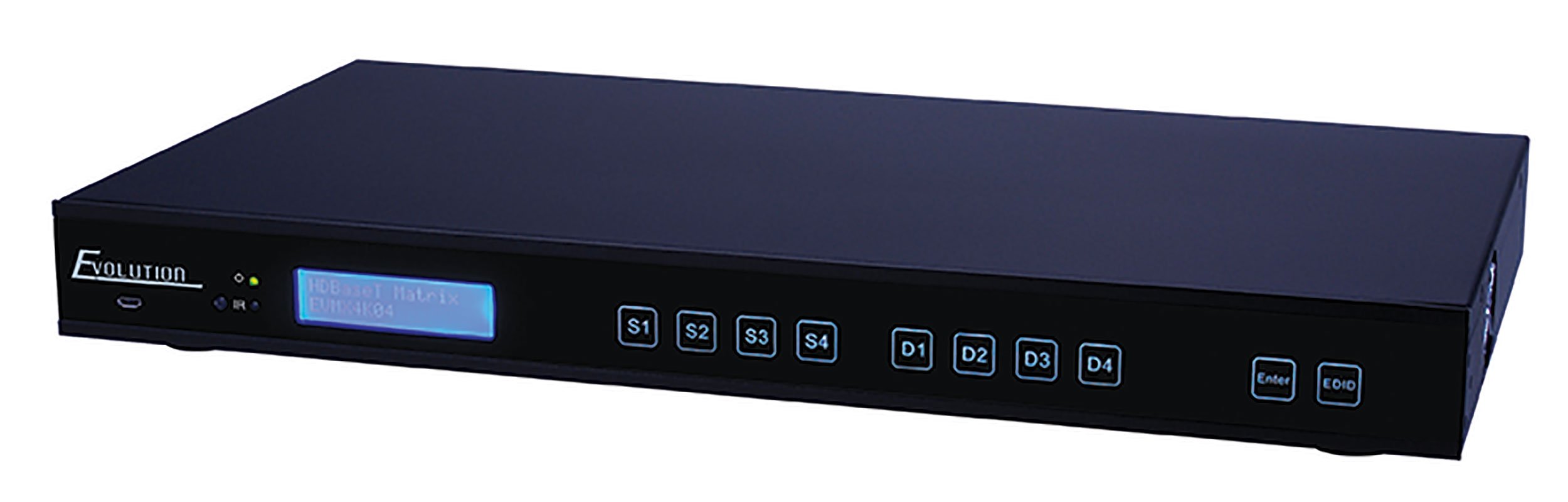

  • LCD screen shows real-time I/O connection status- switching status- HDCP status- and output resolution
  • Controllable via touch-screen front panel- RS232- IR and TCP/IP
  • Supports bi-directional IR & RS232 control
  • Built-in GUI for TCP/IP control
  • Input and Output mapping is automatically stored and recalled when the unit is powered on and off and in the event of a power outage
  • Features a Micro USB port for Firmware upgrades
  • Easy installation with rack-mounting design
  • Dimensions: 17.2” W x 1.7” H x 9.25”

Compatible Receiver: EVRXHD1

Package Contents:

4×4 Matrix EVMX4K04
(5) Wideband IR Tx cables
(4) Wideband IR Rx cables
RS232 cable
IR Remote
Power Adapter DC 24 V 2.5 A
Rack mounting ear set
(8) Pluggable Terminal Blocks
Product Manual

Additional information




[email protected]



Transmission Distance

165 – 230 ft

EVMX4K04 Product Manual


EVMX4K04 Sales Sheet


Crestron Driver


ELAN Driver


RTI Driver


URC Driver


EVMX4K04 Serieal and IP Hex Commands and Protocol


EVMX4K04 Serial Routing


EVMX4K04 IR Hex Commands


EVMX4K04 Control 4 Drivers
