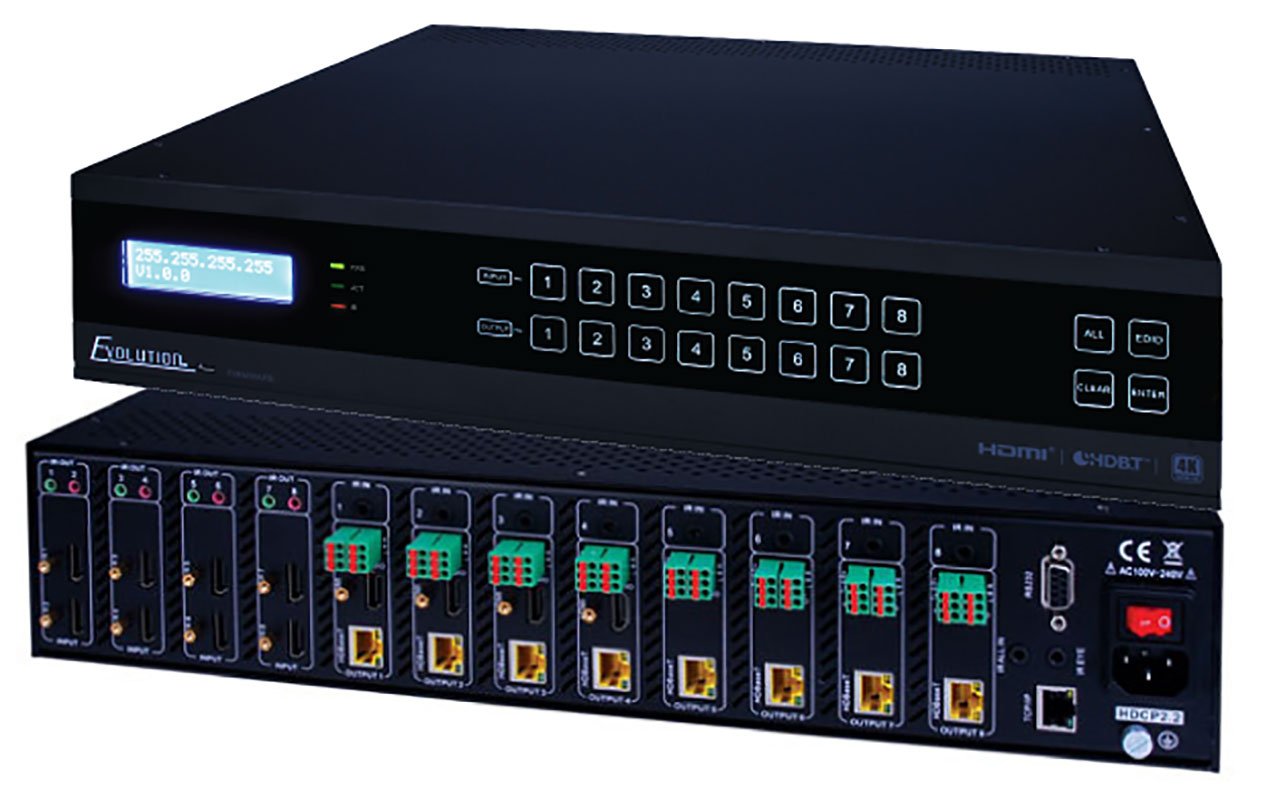

Evolution HDBaseT™ 4K 8×8 Matrix Selector Switch

SKU: EVMX4K08 Categories: ,

This product has been discontinued.

Description

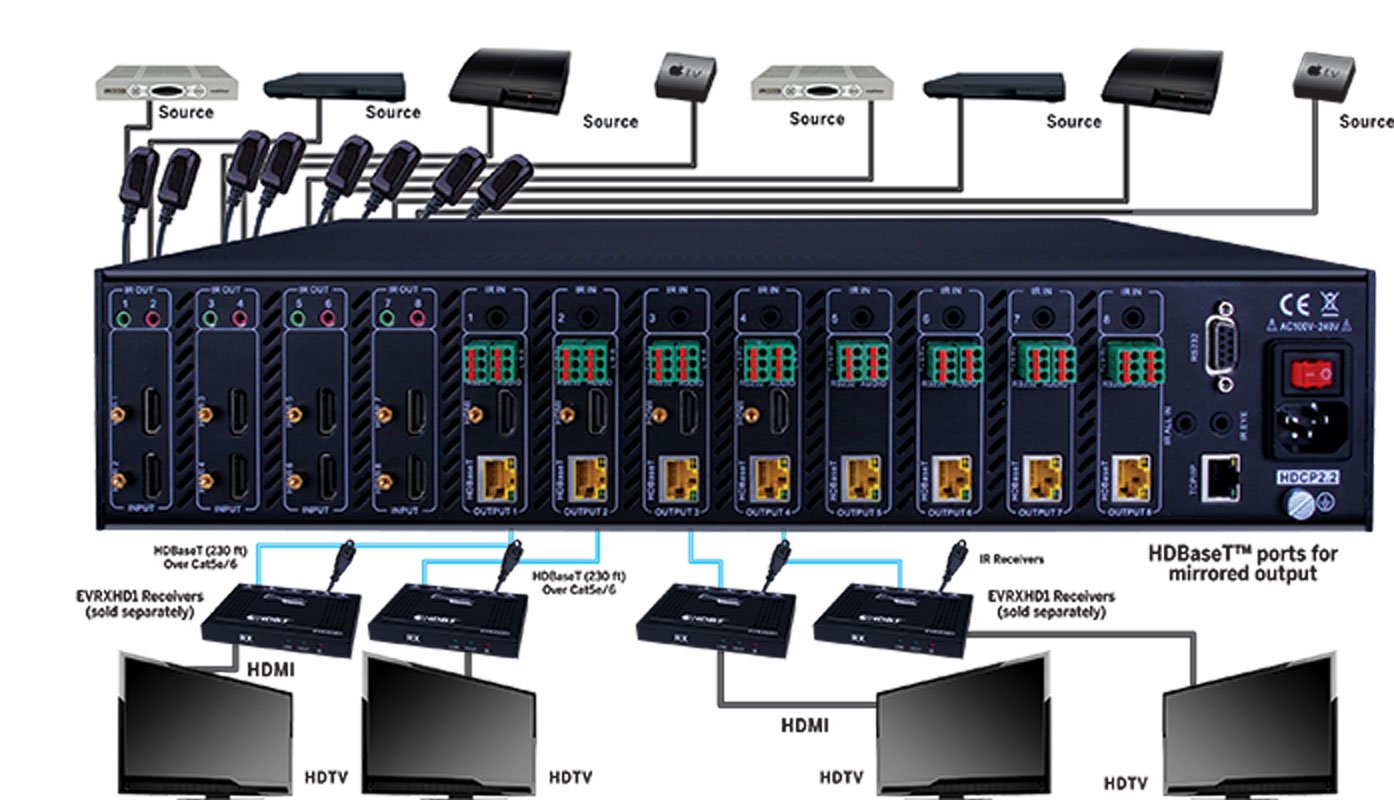

  • 4K HDBaseT 8×8 Matrix Selector Switch that accommodates 8 HDMI inputs- 8 HDBaseT outputs with 4 mirrored HDMI outputs- and 8-analog audio outputs- with IR RS232 zone as well as IR- RS232 and IP control for the matrix
  • Supports 4Kx2K @ 60Hz & 1080p 3D signals
  • Transmits 4Kx2K signal for 26 ft (8m) via HDMI port and 131 ft (40m) via HDBaseT port
  • Transmits 1080p signal 230 ft (70m) via HDBaseT port
  • Features POC (Power over Cable) technology- providing power for the receivers – Receivers sold separately- Part # EVRXHD1
  • HDCP 2.2 compatible- supports manual HDCP management and auto-detecting
  • Powerful EDID management and EQ
  • LCD screen shows real-time I/O connection status- switching status- HDCP status- and output resolution
  • Controllable via touch-screen front panel- RS232- IR and TCP/IP
  • Supports bi-directional IR & RS232 control
  • Built-in GUI for TCP/IP control
  • Features off memory for reliable operation – input and output mapping is automatically stored and recalled when the unit is powered on and off and in the event of a power outage
  • Features a Micro USB port for Firmware upgrades
  • Easy installation with rack-mounting design
  • Dimensions: 17.2” W x 3.5” H x 15.3” D

Compatible Receiver: EVRXHD1

Package Contents:

8×8 Matrix EVMX4K08
8 Wideband IR Tx cables
9 Wideband IR Rx cables
IR Remote
2 Mounting ears with screws
4 Plastic cushions with screws
16 Pluggable Terminal Blocks
RS232 cable
Power Cord
Product Manual

Additional information

Weight 17.7 lbs
Dimensions 21.75 × 18 × 8.5 in
Brands

Evolution

Inputs/Outputs

8×8

Resolution

4K@60Hz

Technology

HDBaseT

Transmission Distance

165 – 230 ft

EVMX4K08 Product Manual

Download

EVMX4K08 Sales Sheet

Download

EVMX4K08 Control4 Driver

Download

Crestron Driver

Download

ELAN Driver

Download

RTI Driver

Download

URC Driver

Download

EVMX4K08 IR HEX Commands

Download

EVMX4K08 Control 4 RS232 Driver

Download

EVMX4K08 Serial Command Routing

Download
