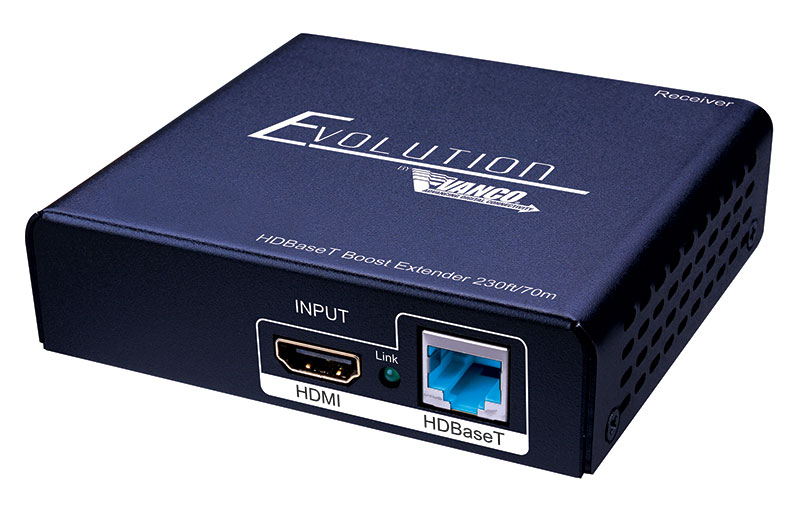

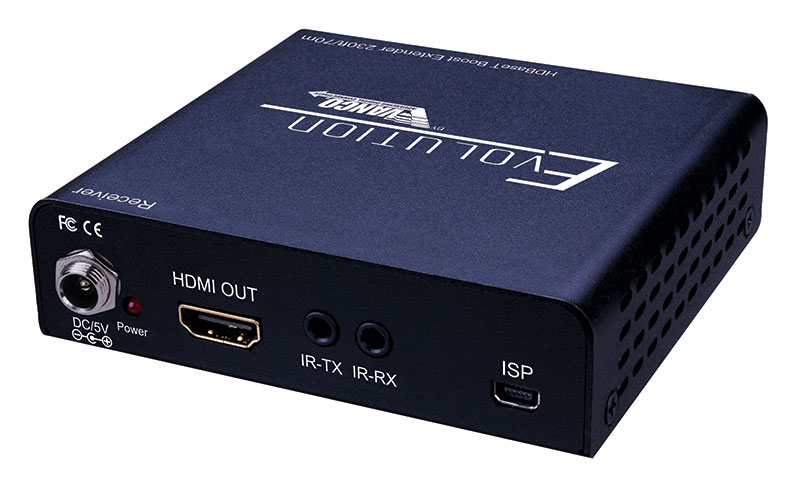

Evolution HDBaseT™ Boost Extender 330ft/100m

SKU: EVEX2330 Categories: ,

Description

  • Features HDBaseT™ Technology- optimized for whole-home or commercial distribution of uncompressed high-definition signals at twice the distance of HDMI cables without degradation

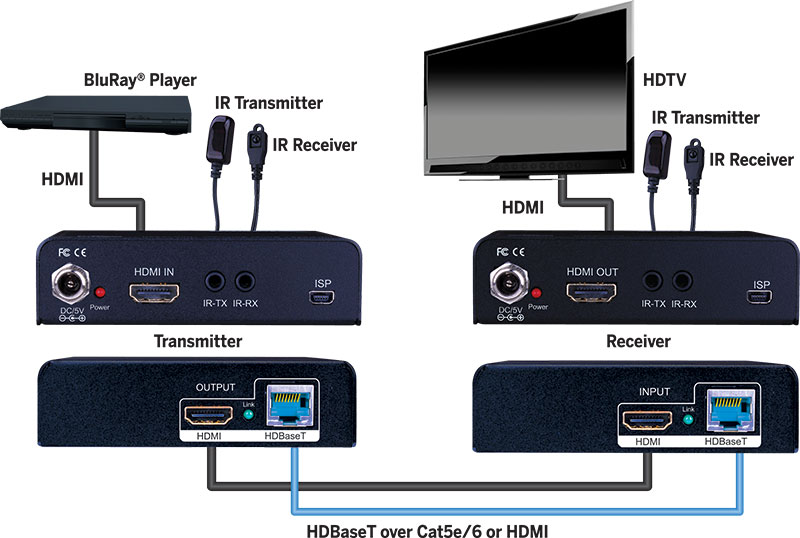

  • HDBaseT Extender can connect uncompressed full HD digital video- audio- 100BaseT Ethernet- and various control signals through a single 330ft/100m Cat5e/Cat6 cable
  • Patent Pending Boost feature allows for HDBaseT and 4K2K transmission over out of date HDMI cables
  • 4K2K (2160p) resolution compatible
  • HDBaseT Technology that supports HDMI Deep Color- 3D- and up to 4K2K resolution @ 30hZ
  • Transmission Range: Extends 1080p resolutions up to 330ft (100m) over a single Cat5e/6 cable and 2160p/30hZ (4K2K) resolutions up to 262ft (80m)
  • HDCP Compliant
  • EDID pass through
  • CEC support
  • Auto equalization
  • Pure unaltered uncompressed 7.1ch digital HDMI over Cat.5/5e/6 cable transmission
  • DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
  • Wideband IR signal from 20KHz to 60KHz
  • Bi-directional IR pass-through
  • Wall mountable housing design for a quick and easy installation
  • Dimensions: 3.82” (97.1mm) W x 1” (25.4mm) H x 3.58” (91mm) D

Package Contents:

EVEX2330 (TX and RX)
IR Blaster (TX)
IR Receiver (RX)
(2) DC 5V in line power supply
Mounting hardware
Product Manual



Additional information

Type

Technology

HDBaseT

Resolution

4K@30Hz

EVEX2330 Product Manual

Download

This Attachment Never Expires.

EVEX2330 Sales Sheet

Download

This Attachment Never Expires.
