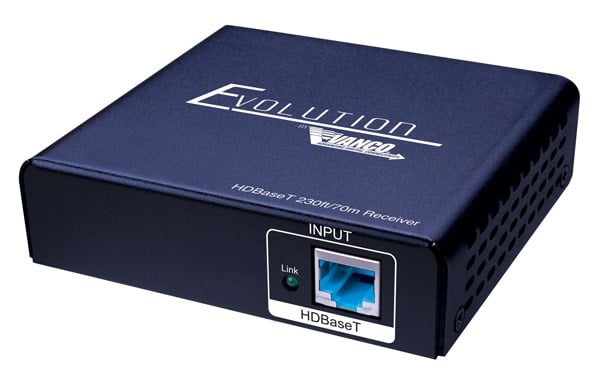

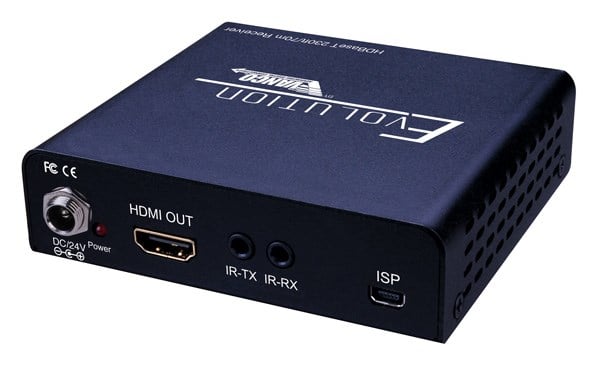

Evolution HDBaseT™ Receiver 230ft/70m

SKU: EVRX3000 Categories: , , ,

Description

View Our Extender Comparison Guide

  • Compatible with the EVMX4004, EVMX4008, and EVMX4016
  • Features HDBaseT Technology, optimized for whole-home or commercial distribution of uncompressed high-definition signals at twice the distance of HDMI cables without degradation

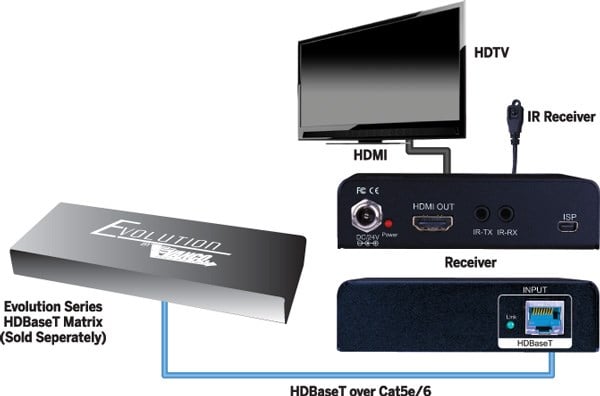

  • HDBaseT Receiver can connect uncompressed full HD digital video, audio, 100BaseT Ethernet, and various control signals through a single 230ft/70m Cat5e/Cat6 cable
  • Features Power over Ethernet (PoE) Technology which transmits power over Cat5e/6, allowing for Receiver to be powered without the use of a power supply. The result is an easy and flexible installation with low maintenance.
  • 4K2K (2160p) resolution compatible
  • HDBaseT Technology that supports HDMI Deep Color, 3D, and up to 4K2K resolution @ 30hZ
  • Transmission Range: Extends 1080p resolutions up to 230ft (70m) over a single Cat5e/6 cable and 2160p/30hZ (4K2K) resolutions up to 131ft (40m)
  • HDCP Compliant
  • EDID pass through
  • CEC support
  • Auto equalization
  • Pure unaltered uncompressed 7.1ch digital HDMI over Cat.5/5e/6 cable transmission
  • DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
  • Wideband IR signal from 20KHz to 60KHz
  • Bi-directional IR pass-through
  • Wall mountable housing design for a quick and easy installation
  • Dimensions: 3.82” (97.1mm) W x 1” (25.4mm) H x 3.58” (91mm) D

Package Contents:

EVRX3000
IR Receiver (RX)
Mounting hardware
Product Manual

Additional information

Weight 1.1 lbs
Dimensions 7.8 × 5.4 × 2.5 in
