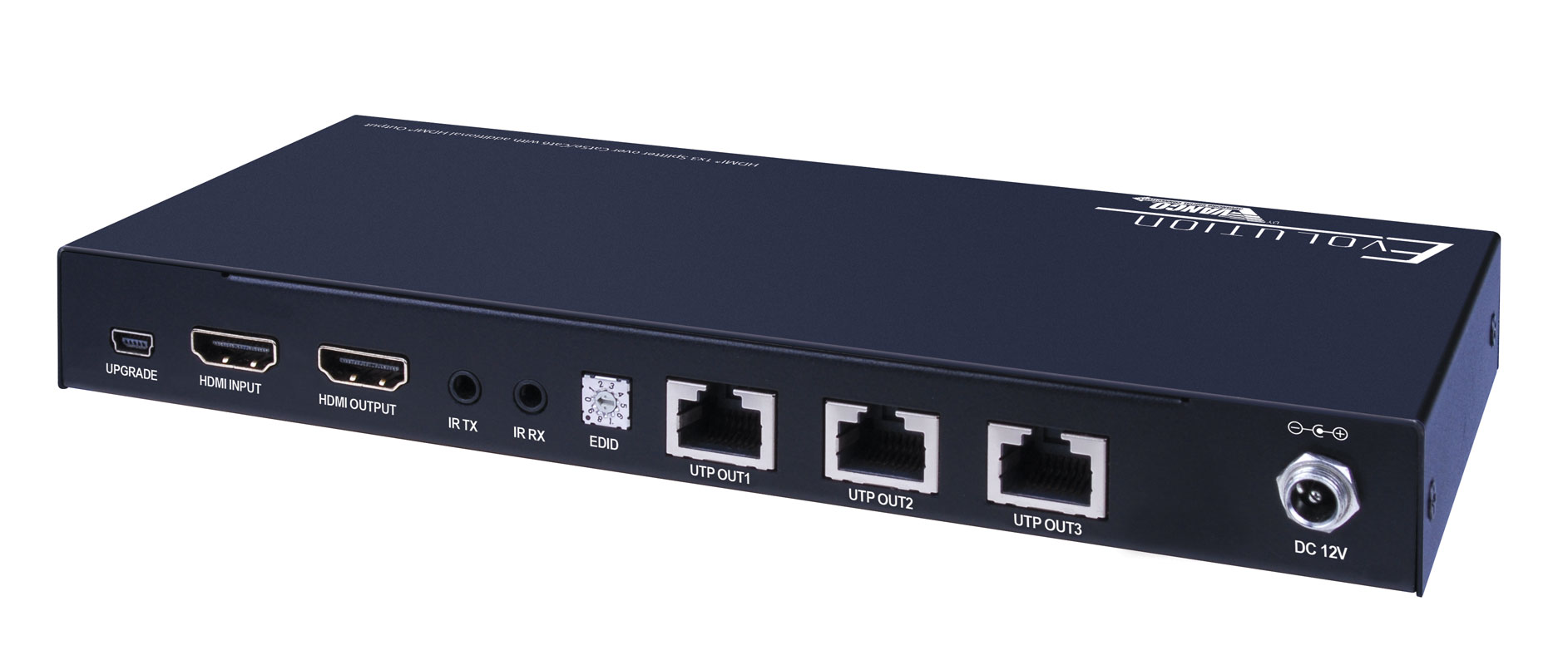

Evolution HDMI® 1×3 Splitter over Cat5e/Cat6 Cable with Additional HDMI® Output

SKU: EVSP1013 Categories: , ,

Description

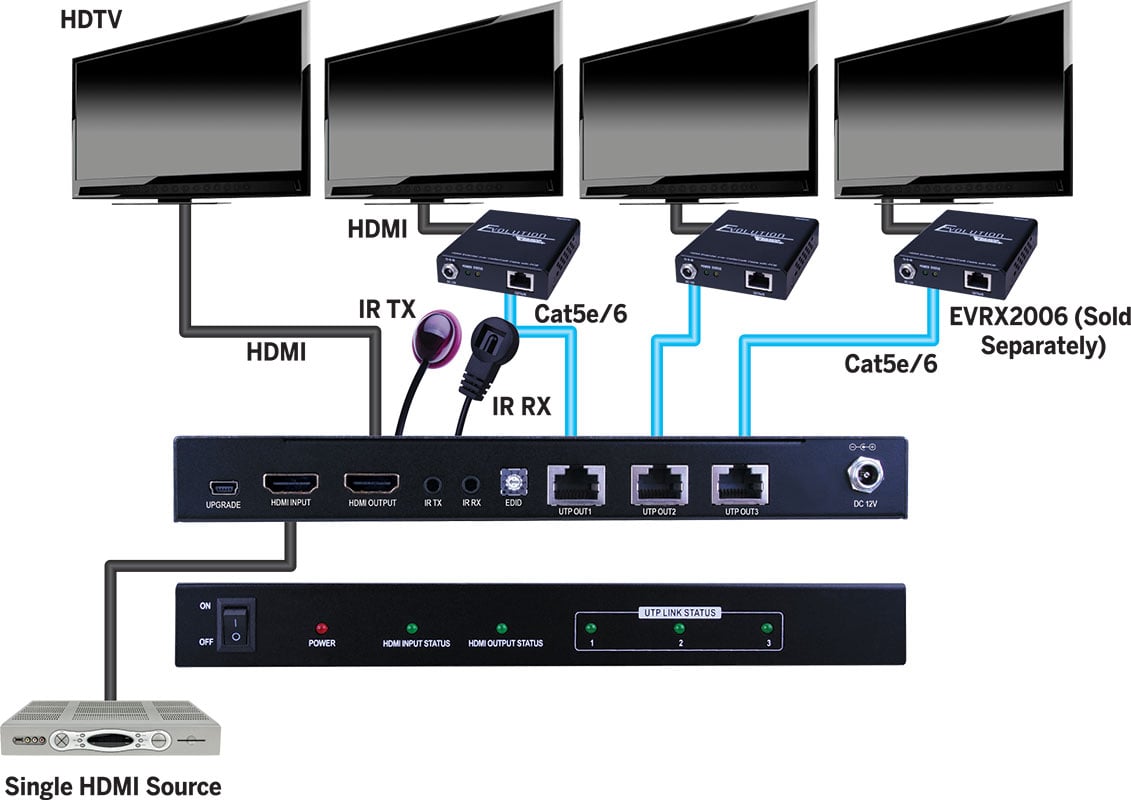

  • Allows for 1 HDMI input to be split and sent to 4 different displays
  • (3) RJ45 output ports with POE Functionality can connect to the EVRX2006 POE Receiver (sold separately) over Cat5e/Cat6 cable to transmit 1080p @60Hz video with audio and control up to 164ft/50m
  • Power over the Cat5e/Cat6 so that the EVRX2006 receivers do not require a power supply
  • Features an additional HDMI output which can be used for a local display or to cascade to another splitter for a larger distribution system
  • Supports 20-60kHz wideband bi-direction IR communication
  • Dynamic or manual EDID management. The user can manually select the best compatible EDID or automatically blend EDID of 4 connected HDMI sinks
  • Supports multiple audio formats including Dolby True HD- DTS-master- etc.
  • Supports all 3D Signal Formats
  • Supports manual or dynamic EDID management
  • HDCP 2.0 compatible
  • Dimensions: 8.1″ W x 1″ H x 3.5″ D
  • Patent No. 9,710,038 B1

Compatible Receivers: EVRX2006 and EVWP2006RX

Tech Support Tips:

    • With recent changes to many new source and display components, we have updated the EVSP1013, EVSP1017, and EVRX2006 to improve compatibility. There are now “2nd Generation” versions of each of these products for improved compatibility
    • Ensure that both the splitter(s) (EVSP1013 and EVSP1017) and receiver(s) (EVRX2006) match generation versions. For example, if using a “2nd Generation” splitter, a “2nd Generation” EVRX2006 receiver must be used. All “2nd Generation” Products are marked as such on the product and box. If no version or version number is listed, this would be a “1st Generation” unit

Package Contents:

EVSP1013 Splitter
(1) IR Blasters (TX)
(1) IR Receiver (RX)
(1) DC 12V 2A power supply
Product Manual

Additional information

Weight 1.9 lbs
Dimensions 9 × 7.25 × 2.25 in
Brands

Evolution

Type

Inputs/Outputs

1×3

Resolution

Full HD 1080p

Technology

1 CAT

EVSP1013 Product Manual

Download

EVSP1013 Sales Sheet

Download
