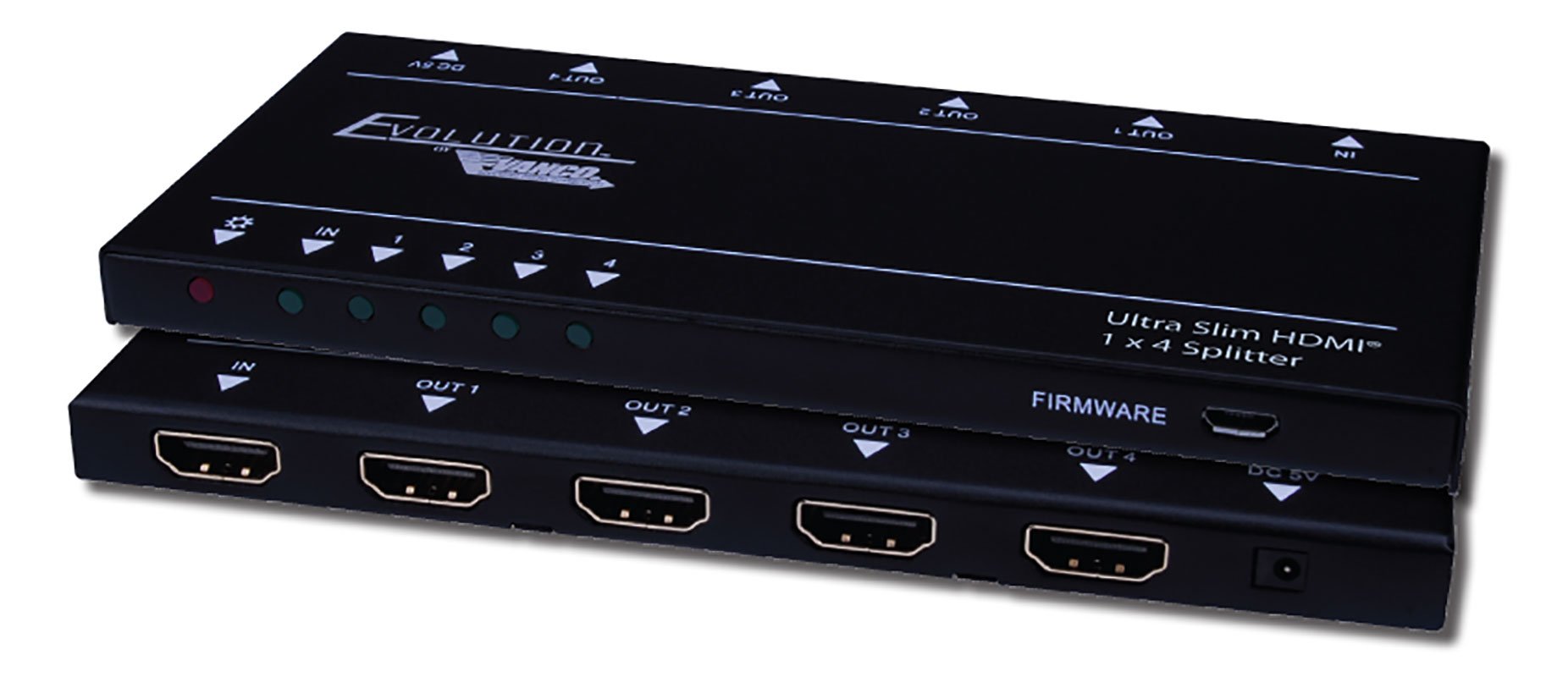

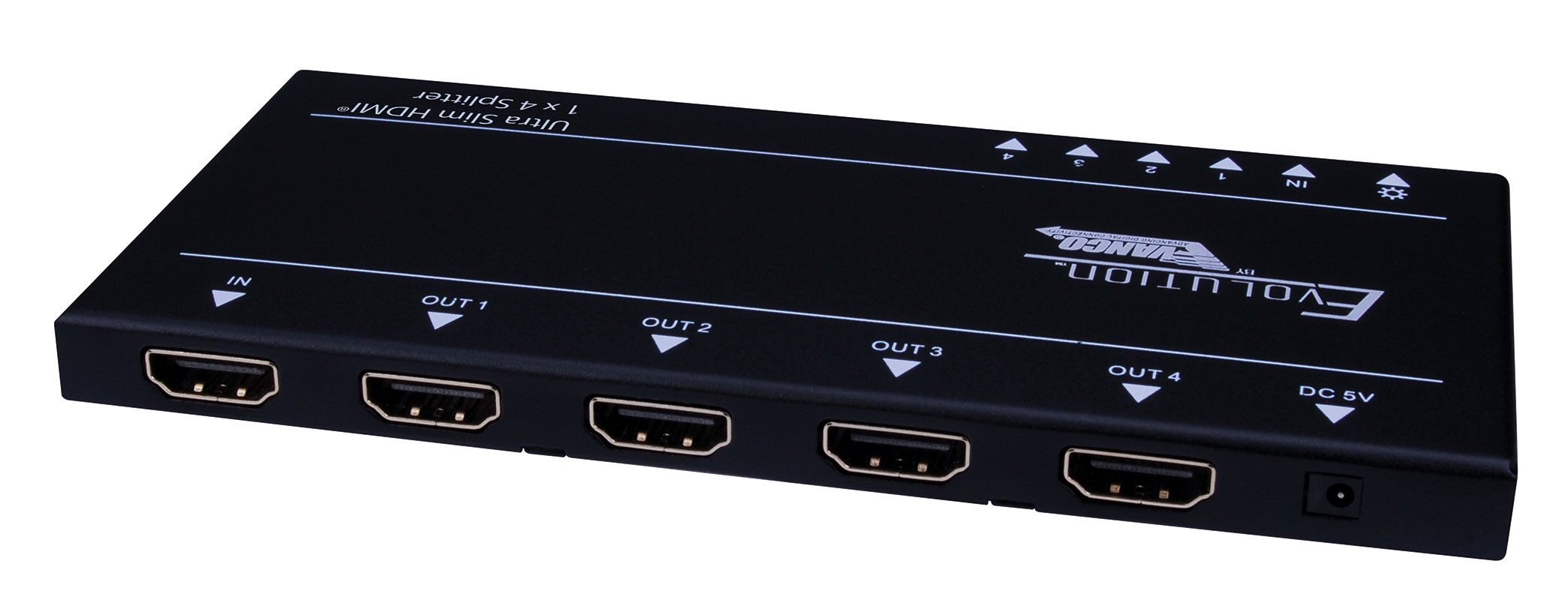

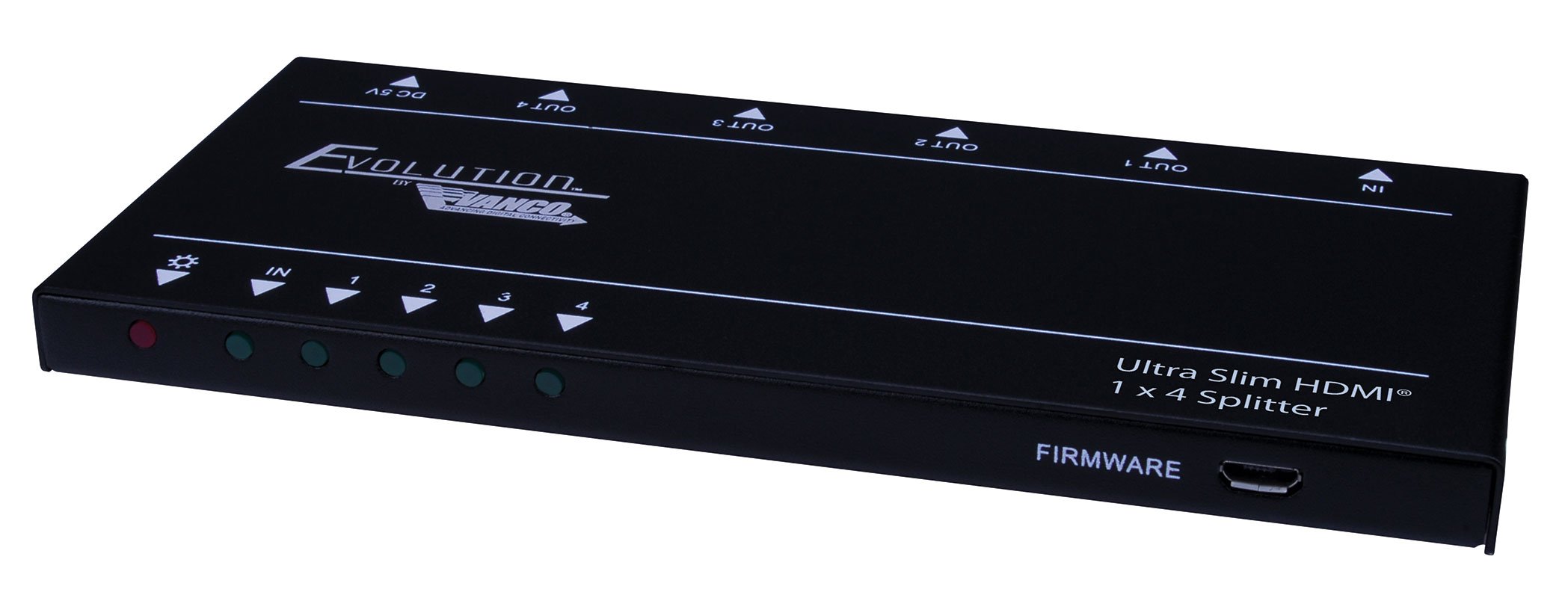

Evolution HDMI® 1×4 Ultra Slim UHD Splitter

SKU: EVSLIM14 Categories: , ,

This product has been discontinued.

Description

  • Transmits audio and video from a single source to 4 HDMI outputs up to 4K2K (2160p) Ultra High Definition resolution without any loss of quality or resolution
  • Supports 1080P- 3D & 4K Resolutions
  • Transmission Range: 50 ft
  • Supports automatic EDID management- automatically adopts the resolution of the first detected display from port 1-4
  • Supports Hot-plug
  • High bandwidth: 10.2Gbps
  • HDCP 1.4 compliant
  • Features status indicator for connection & input HDCP compliance
  • Convenient online firmware update
  • Can be cascaded with other Evolution by Vanco products to create additional output options or to create an expanded distribution system
  • Dimensions: 5.9” W x .4” H x 2.8” D

Package Contents:

1×4 Ultra Slim Splitter EVSLIM14
Mounting Ears and Screws
4 plastic cushions
5V/1A DC power supply
Product Manual

Additional information

Weight 1 lbs
Dimensions 6.5 × 4.5 × 4.5 in
Inputs/Outputs

1×4

Resolution

4K@30Hz

Brands

Evolution

Technology

HDMI

EVSLIM14 Product Manual

Download

EVSLIM14 Sales Sheet

Download
Find a Distributor
