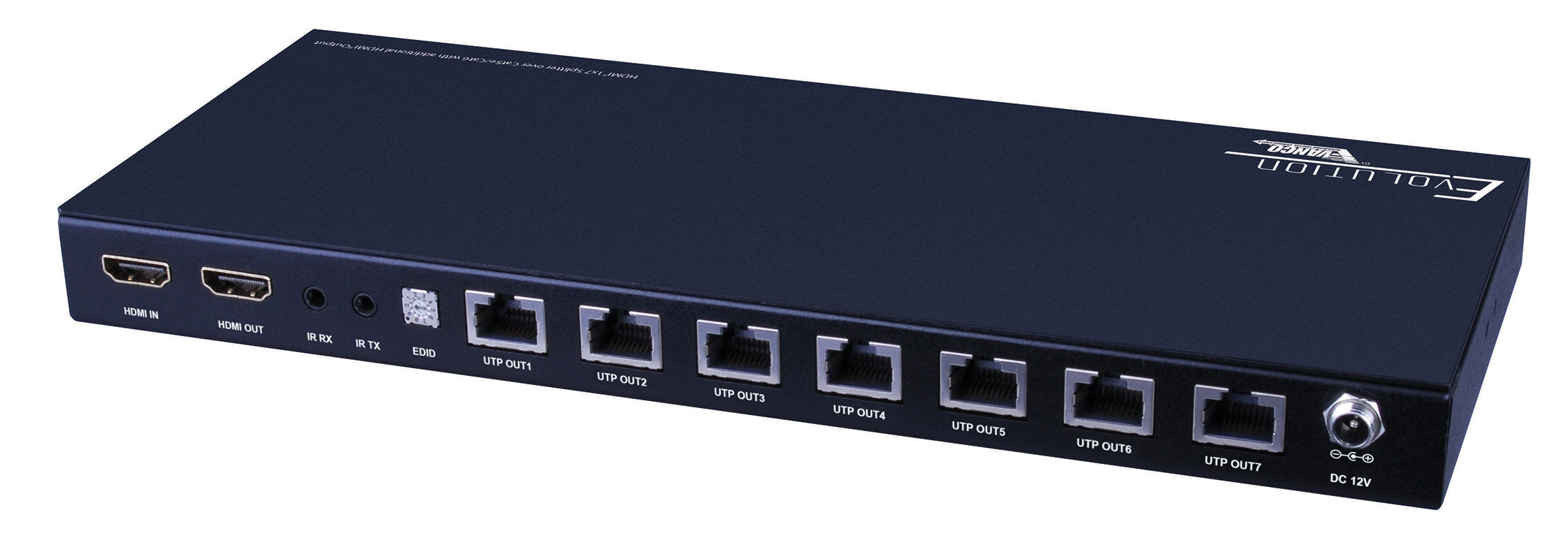

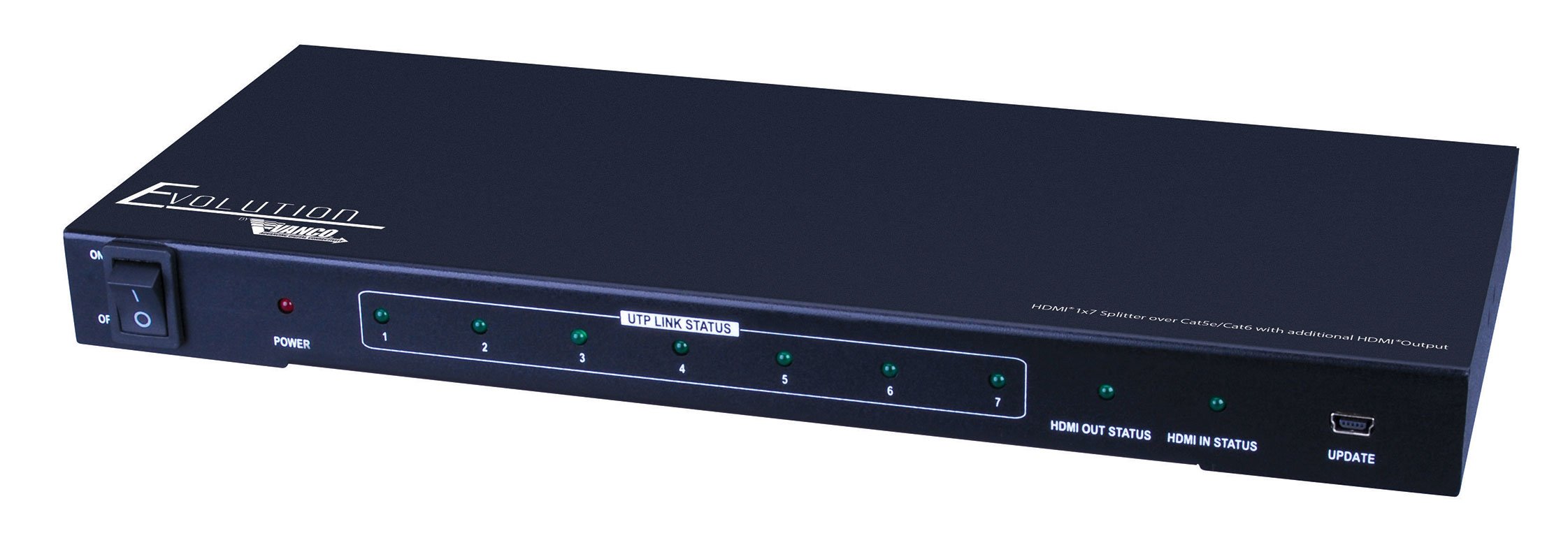

Evolution HDMI® 1×7 Splitter over Cat5e/Cat6 Cable with Additional HDMI® Output

SKU: EVSP1017 Categories: , ,

Description

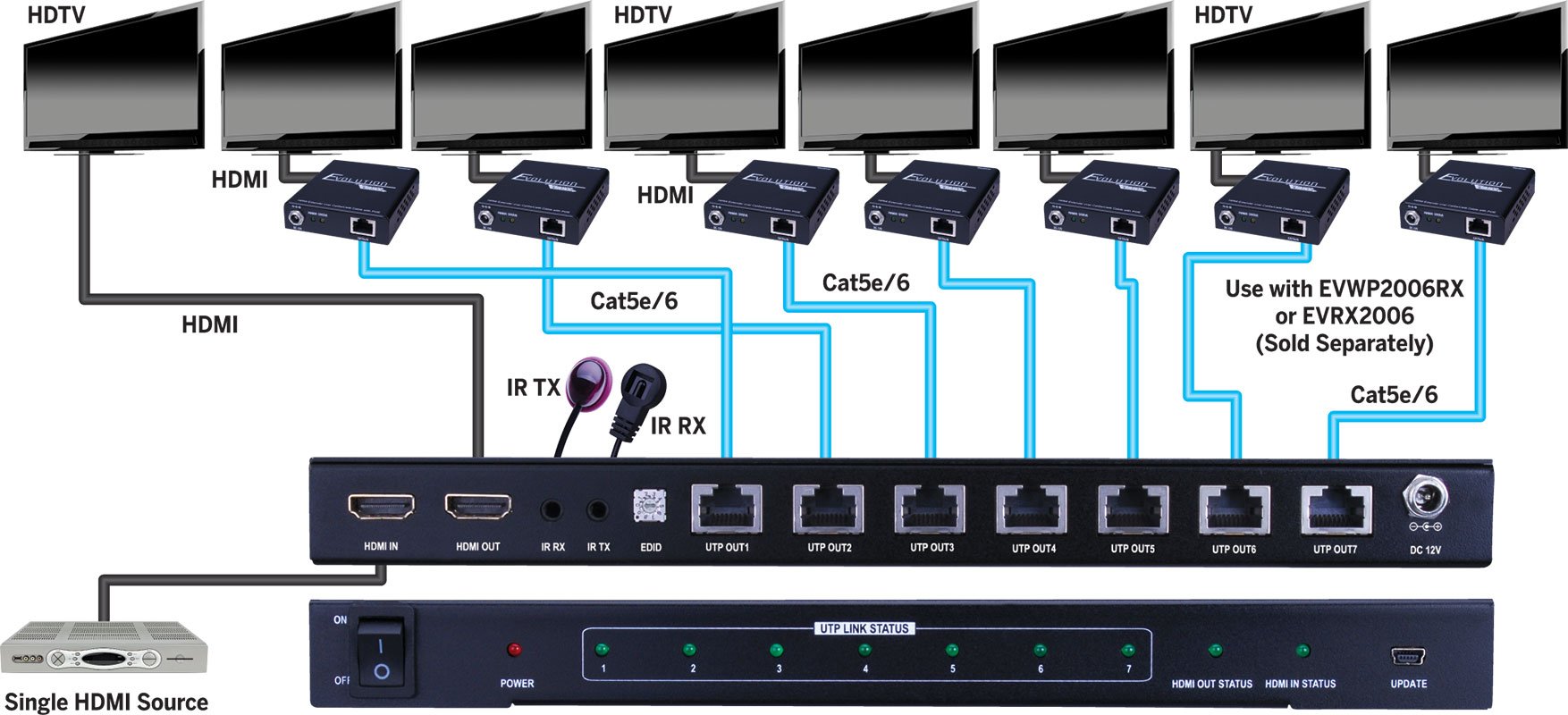

  • Allows 1 HDMI source to be displayed on up to 7 HDMI displays over a single Cat5e or Cat6 cable
  • Transmission Range: Extends 1080p resolutions up to 164ft/50m to receiver units (EVRX2006 or EVWP2006RX sold separately)
  • Features Power over Ethernet (PoE) Technology which transmits power over Cat5e/Cat6- allowing the receiver unit (EVRX2006) to be powered from the EVSP1017; requiring no power supply to be connected
  • Dynamic or manual EDID management; ability to manually select the best compatible EDID or automatically blend EDID of the 8 connected HDMI sinks
  • Additional HDMI output for local display or to connect an additional EVSP1017 to cascade for an expanded distribution system
  • Supports HDMI Deep Color and 3D
  • Supports multiple audio formats including Dolby True HD- DTS-master- etc.
  • Wide band IR system allowing for control of the single source from any of the displays connected
  • Wideband IR signal from 20KHz to 60KHz
  • HDCP Compliant
  • Dimensions: 10.6″ W x 1″ H x 4.4″ D
  • Patent No. 9,710,038 B1

Compatible Receivers: EVRX2006 and EVWP2006RX

Tech Support Tips:

    • With recent changes to many new source and display components, we have updated the EVSP1013, EVSP1017, and EVRX2006 to improve compatibility. There are now “2nd Generation” versions of each of these products for improved compatibility
    • Ensure that both the splitter(s) (EVSP1013 and EVSP1017) and receiver(s) (EVRX2006) match generation versions. For example, if using a “2nd Generation” splitter, a “2nd Generation” EVRX2006 receiver must be used. All “2nd Generation” Products are marked as such on the product and box. If no version or version number is listed, this would be a “1st Generation” unit

Package Contents:

EVSP1017 Splitter
IR Blaster (TX)
IR Receiver (RX)
DC 12V 2A Power Supply
Product Manual



Additional information

Weight 1.2 lbs
Dimensions 12.5 × 7.25 × 3.75 in
Inputs/Outputs

1×7

Brands

Evolution

Resolution

Full HD 1080p

Technology

1 CAT

EVSP1017 Product Manual

Download

EVSP1017 Sales Sheet

Download
