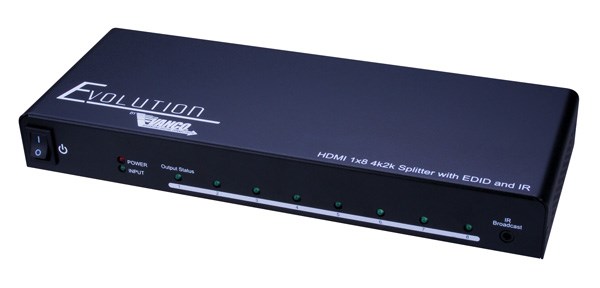

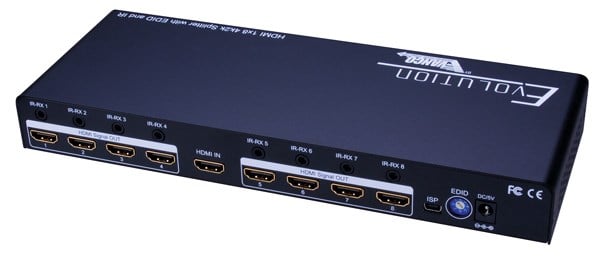

Evolution HDMI® 1×8 4K2K Splitter

SKU: EVSP1008 Categories: , ,

This product has been discontinued.

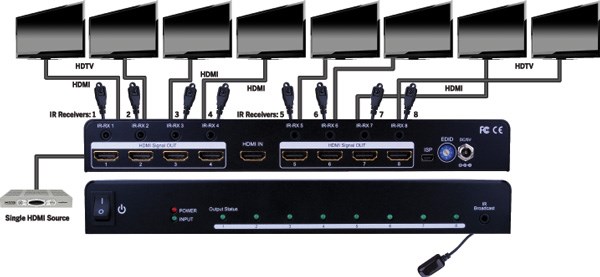

  • Allows 1 HDMI source to be displayed on up to 8 HDMI displays
  • Features EDID management which supports default HDMI EDID and has the ability to learn the EDID of display equipment
  • Fully cascadable so multiple units may be combined to create a larger HD distribution
  • Supports 4K2K (2160p) Ultra High Definition resolution
  • Simple Plug and Play solution
  • HDCP Compliant
  • EDID management
  • Supports HDMI Deep Color and 3D
  • DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
  • Wideband IR signal from 20KHz to 60KHz (IR accessories sold separately)
  • ISP port for firmware updates
  • Dimensions: 10.2” (259mm) W x 1.26” (32mm) H x 3.86” (98mm) D

Package Contents:

(1) DC 5V in line power supply
Mounting hardware
Product Manual



Additional information

Weight 2.84 lbs
Dimensions 14.75 × 6.75 × 3 in


IR Add-Ons

IR Receiver, IR Transmitter

EVSP1008 Product Manual


EVSP1008 Sales Sheet
