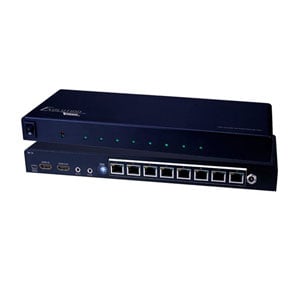

Evolution HDMI® 1×8 Splitter over Single Cat5e/Cat6 Cable

SKU: EVSP1018 Categories: , ,

This product has been discontinued.


Replaced by EVSP1017
  • Allows 1 HDMI source to be displayed on up to 8 HDMI displays over a single Cat5e or Cat6 cable
  • Transmission Range: Extends 1080p resolutions up to 131ft/40m to receiver units (sold separately EVRX3001)
  • Features EDID management which supports default HDMI EDID and has the ability to learn the EDID of display equipment
  • Additional HDMI output for local display or to connect an additional EVSP1018
  • Allows cascading for an expanded distribution system
  • Supports HDMI Deep Color and 3D
  • Wideband IR signal from 20KHz to 60KHz
  • HDCP Compliant
  • DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
  • Dimensions: 11.95”(303.5mm)Wx1.26”(32mm)Hx4.63”(117.5mm)D

Compatible Receiver: EVRX3001

Package Contents:

(1) EVSP1018 HDMI 1×8 Splitter over UTP

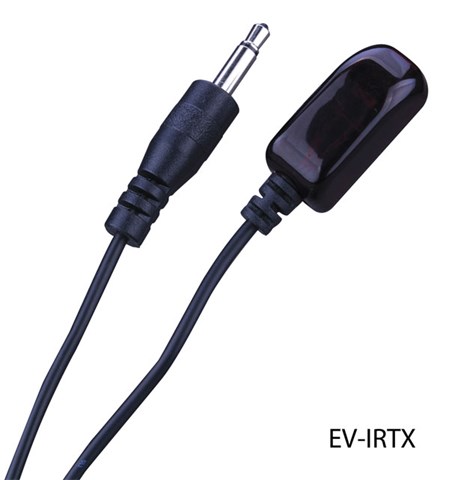

(1) IR Blaster (TX)
(1) 1x DC 5V 4A in-line with C7 power cord
(1) Mounting hardware
(1) User Manual


Additional information

Weight 2.9 lbs
Dimensions 14.9 × 6.5 × 2.9 in


IR Add-Ons

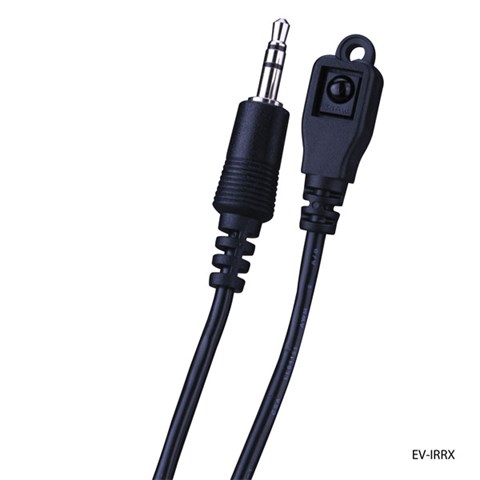

IR Receiver, IR Transmitter

EVSP1018 Product Manual
