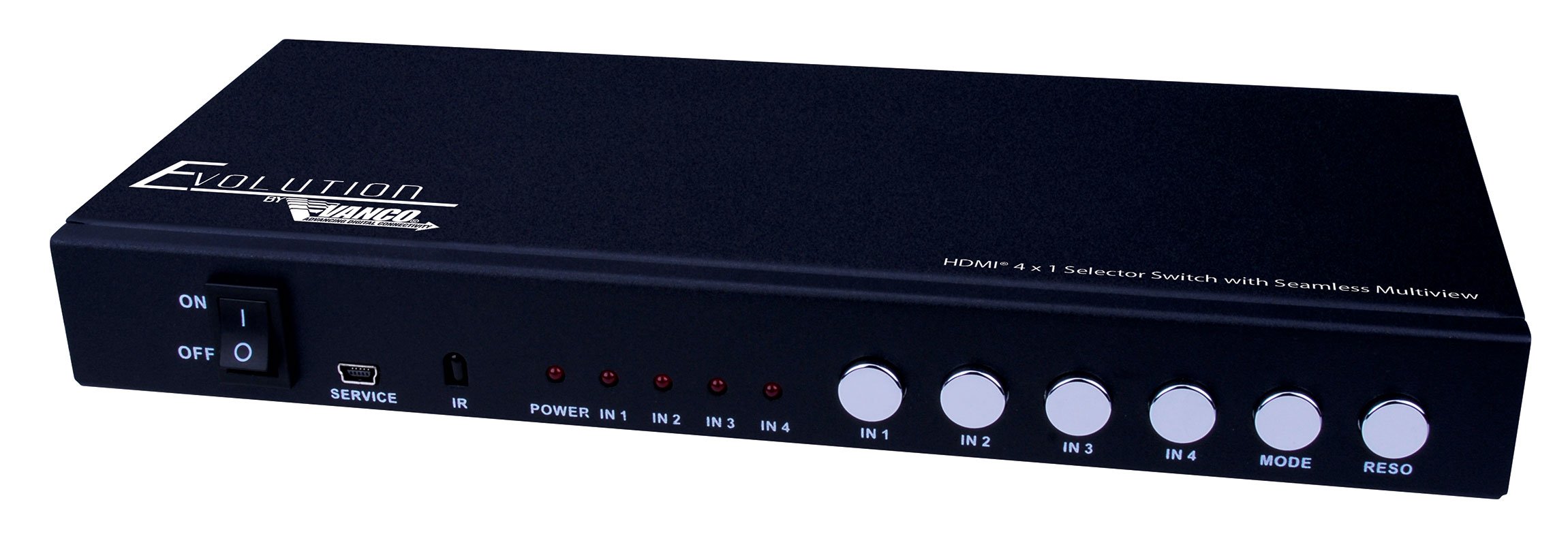

Evolution HDMI® 4 x 1 Selector Switch with Seamless Switching and Multiview

Evolution HDMI® 4 x 1 Selector Switch with Seamless Switching and Multiview

SKU: EVSW1040 Categories: ,

Description

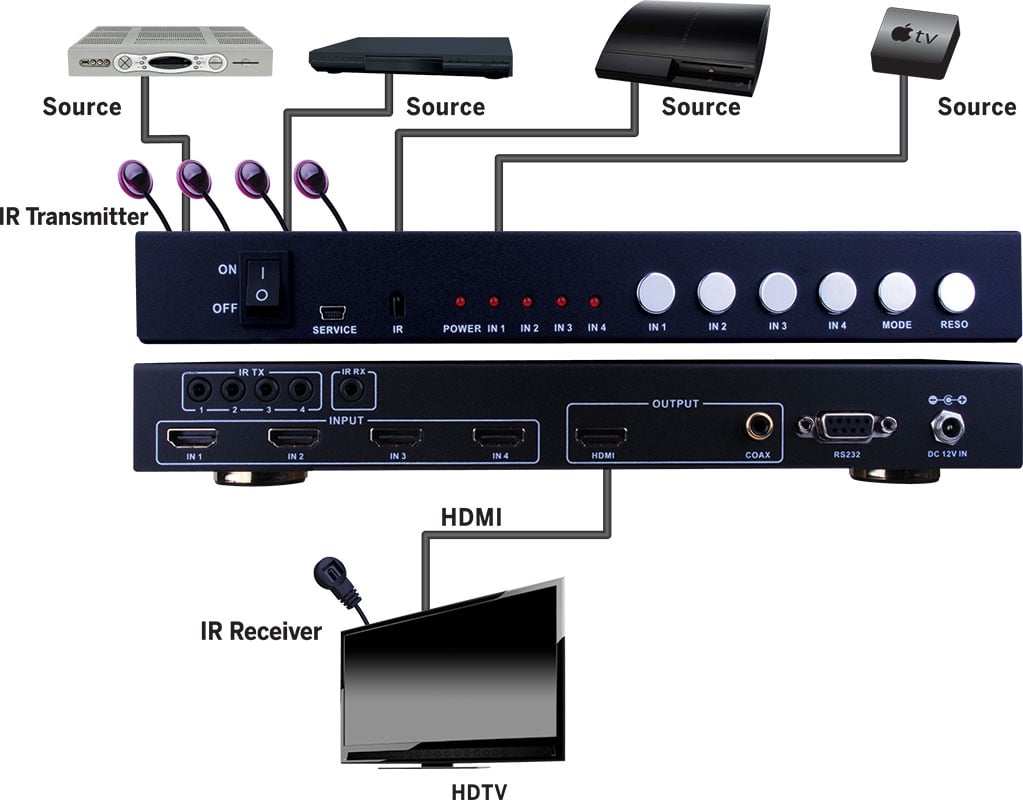

  • High performance 4 x 1 HDMI switcher with Quad-View- Picture-in-Picture (PIP) capabilities and seamless switching
  • Supports four HDMI inputs which can be displayed on one screen either equally in Quad-View mode or with a larger main source in PIP mode
  • Control through the front panel button control- IR control- and RS232 control
  • IR system allowing for control of source(s) at display end
  • HDMI 1.3a and HDCP Compliant
  • Supports up to 1080p High Definition resolution
  • Up/down scaler functionality
  • Support digital audio format LPCM/AC3/DTS
  • Coaxial Audio breakout
  • Power Supply: 12V/2.5A DC
  • Dimensions: 9.84” W x 1.25” H x 4.64” D

Package Contents:

4×1 Selector Switch EVSW1040
(4) Wideband IR Tx cables
(1) Wideband IR Rx cable
Remote Control
12V/2.5A DC power supply
RS232 cable
Product Manual

Additional information

Inputs/Outputs

4×1

Resolution

Full HD 1080p

Multiview/Videowall

Multiview

EVSW1040 Product Manual

Download

This Attachment Never Expires.

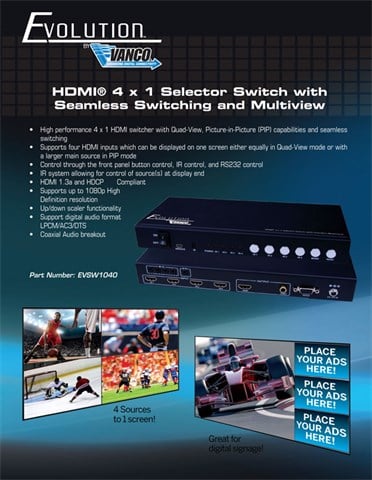

EVSW1040 Sales Sheet
