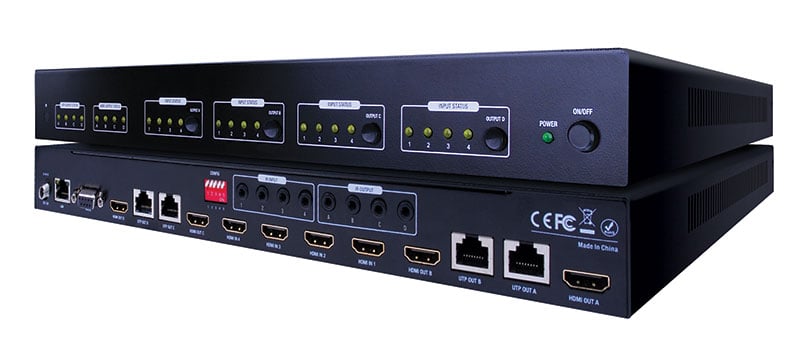

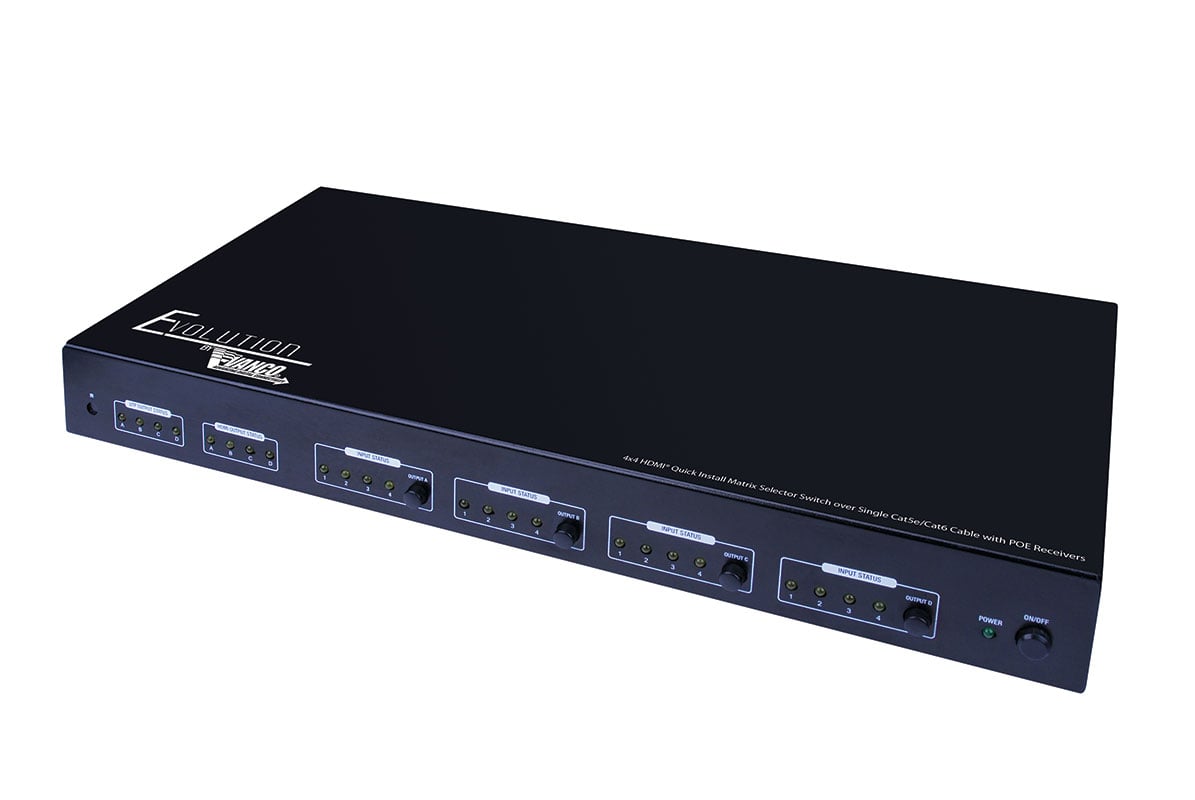

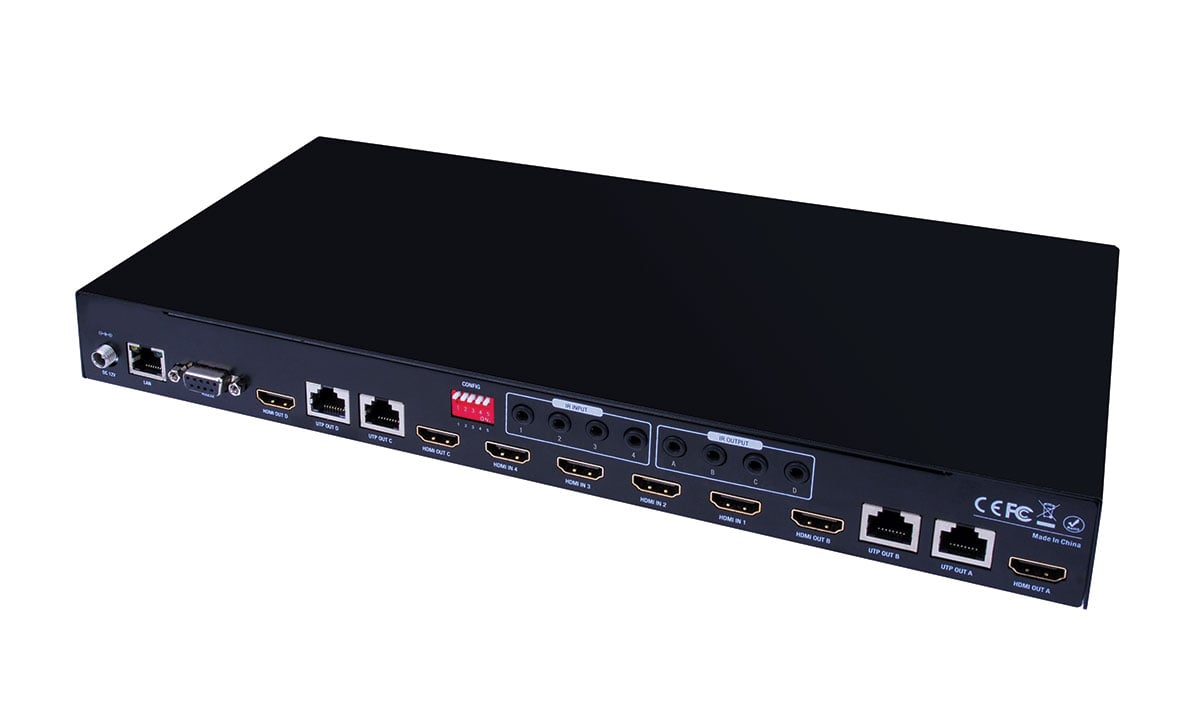

Evolution HDMI® 4 x 4 Matrix Selector Switch over Cat5e/Cat6 with POE Receivers

SKU: EVMX44QI Categories: ,

Description

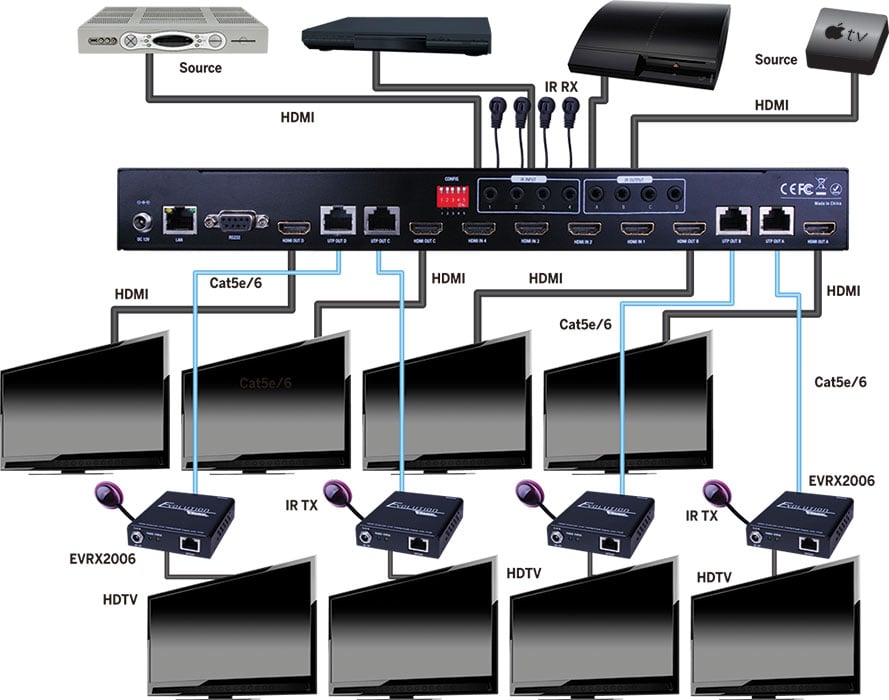

  • Allows up to 4 HDMI sources to be distributed simultaneously to up to 4 displays
  • 4 additional HDMI outputs for flexibility or mirroring capability; allows for connection of up to 8 displays or the ability to create a larger distribution system by cascading or daisy chaining
  • Cat5e/Cat6 extender outputs support POE- No power supply is needed on the receiver end
  • Transmission Range: Extends 1080p @ 60 Hz up to 164ft/50m over Cat5e/Cat6
  • Automatically adjusts for EDID and EQ to allow for an easy plug and play solution and is controllable manually though the front panel- IR- IP- or RS232.
  • Quick Install kit provides the perfect solution for Home or Retail AV as well as Commercial and Hospitality installations with all necessary receivers and IR accessories included
  • HDMI and HDCP Compliant
  • Supports audio formats PCM- Dolby®-AC3- DTS®7.1- DSD
  • 4×4 bi-directional IR matrix embedded with local and remote IR control
  • Auto restores last power-off matrix
  • Advanced protection against ESD- EMI- and RFI
  • Dimensions: 13.3” W x 1.8” H x 5.9” D
  • Patent No. 9,710,038 B1

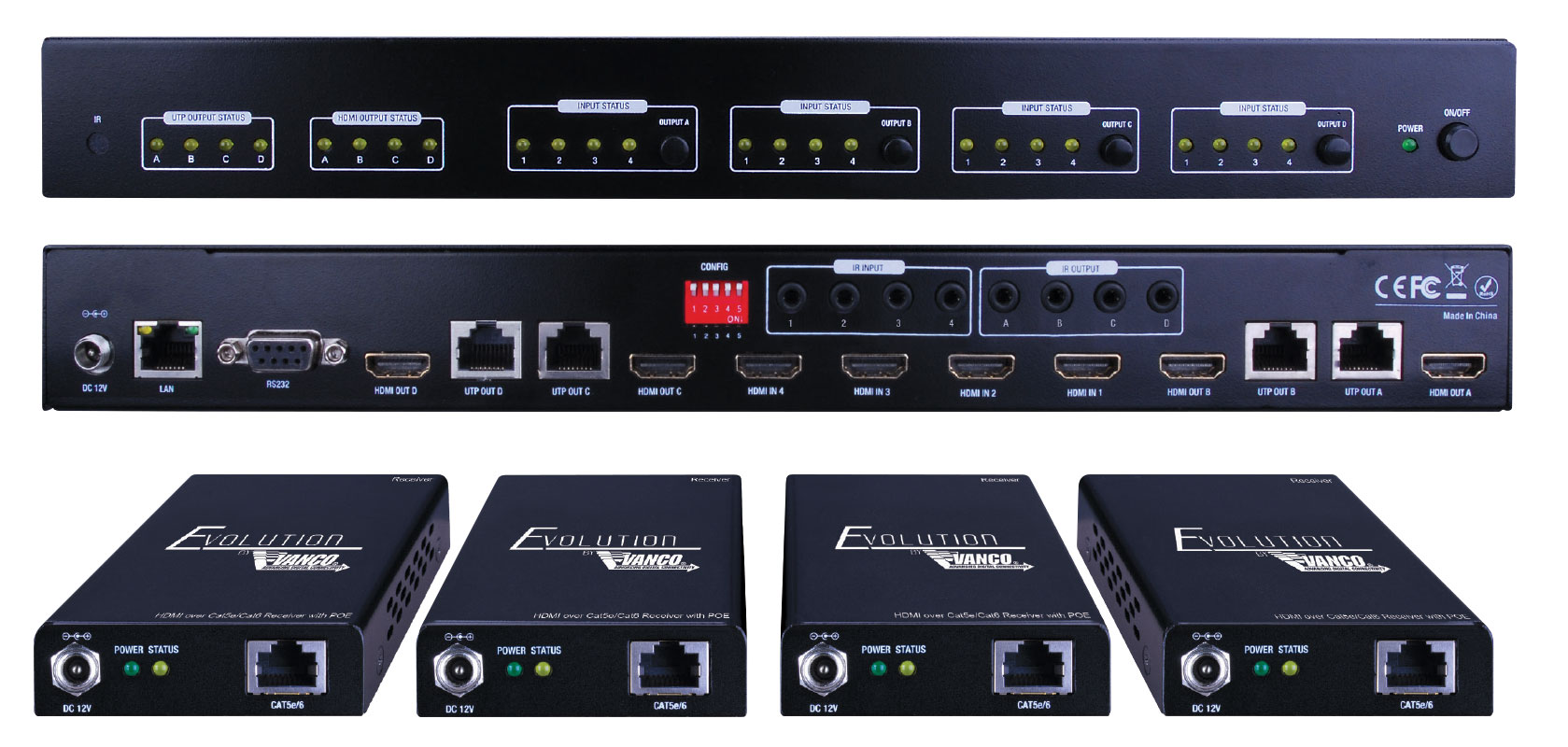

Package Contents:

4×4 Matrix EVMX44QI

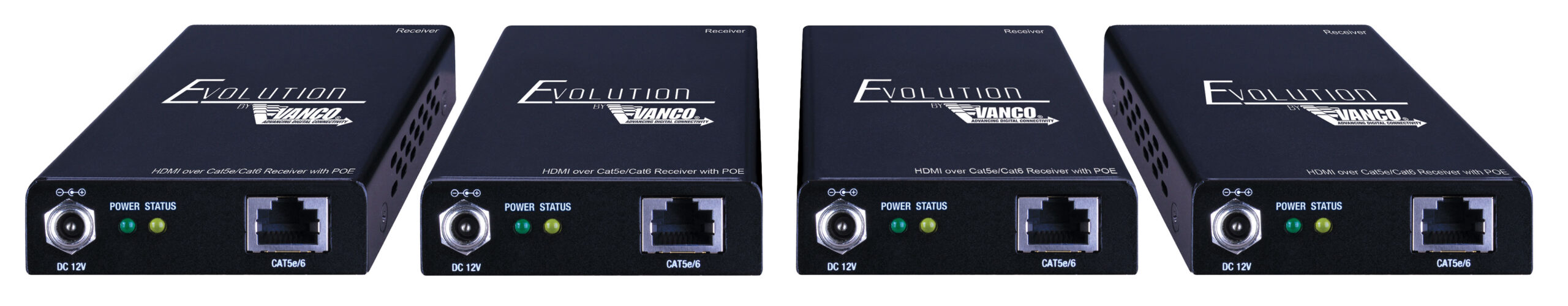

(4) EVRX2006 Receivers
(4) Wideband IR Tx cables
(4) Wideband IR Rx cables
IR Remote
12V/3A DC power supply
Product Manual

Additional information

Inputs/Outputs

4×4

Resolution

Full HD 1080p

Technology

1 CAT

Transmission Distance

51 – 164 ft
