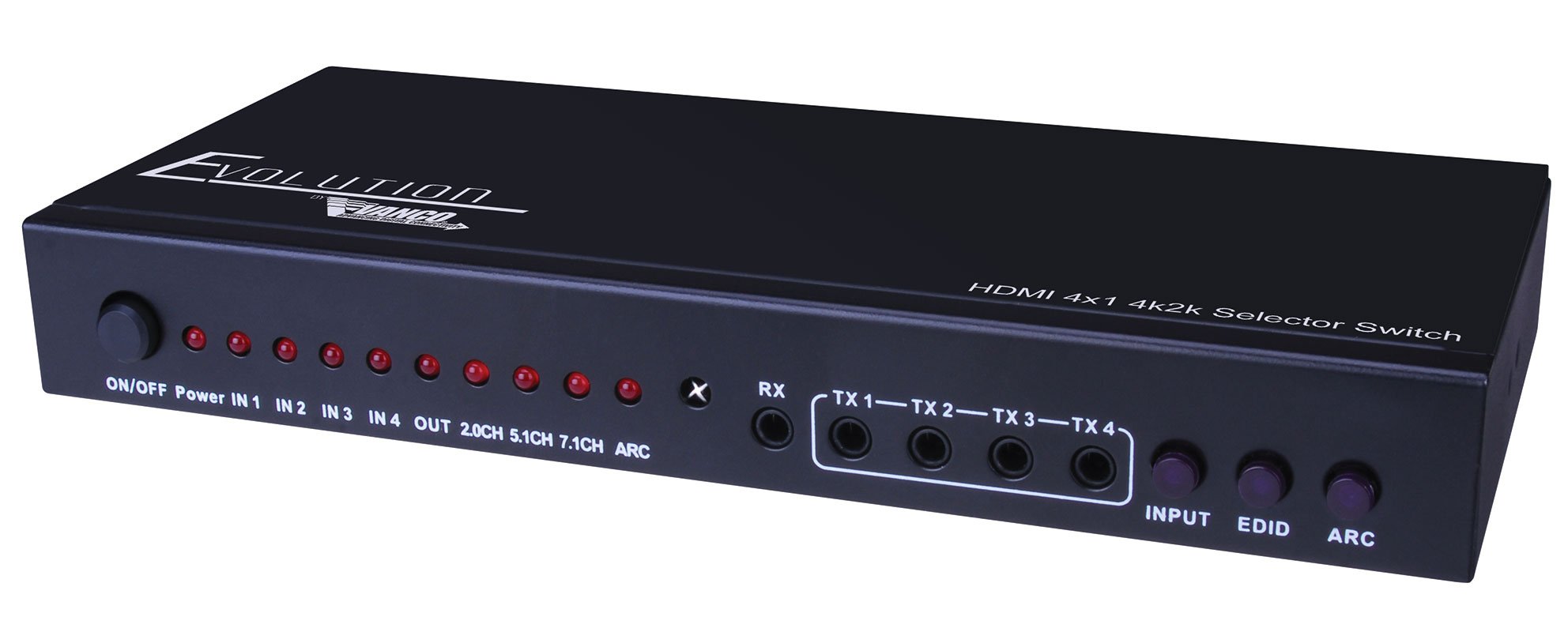

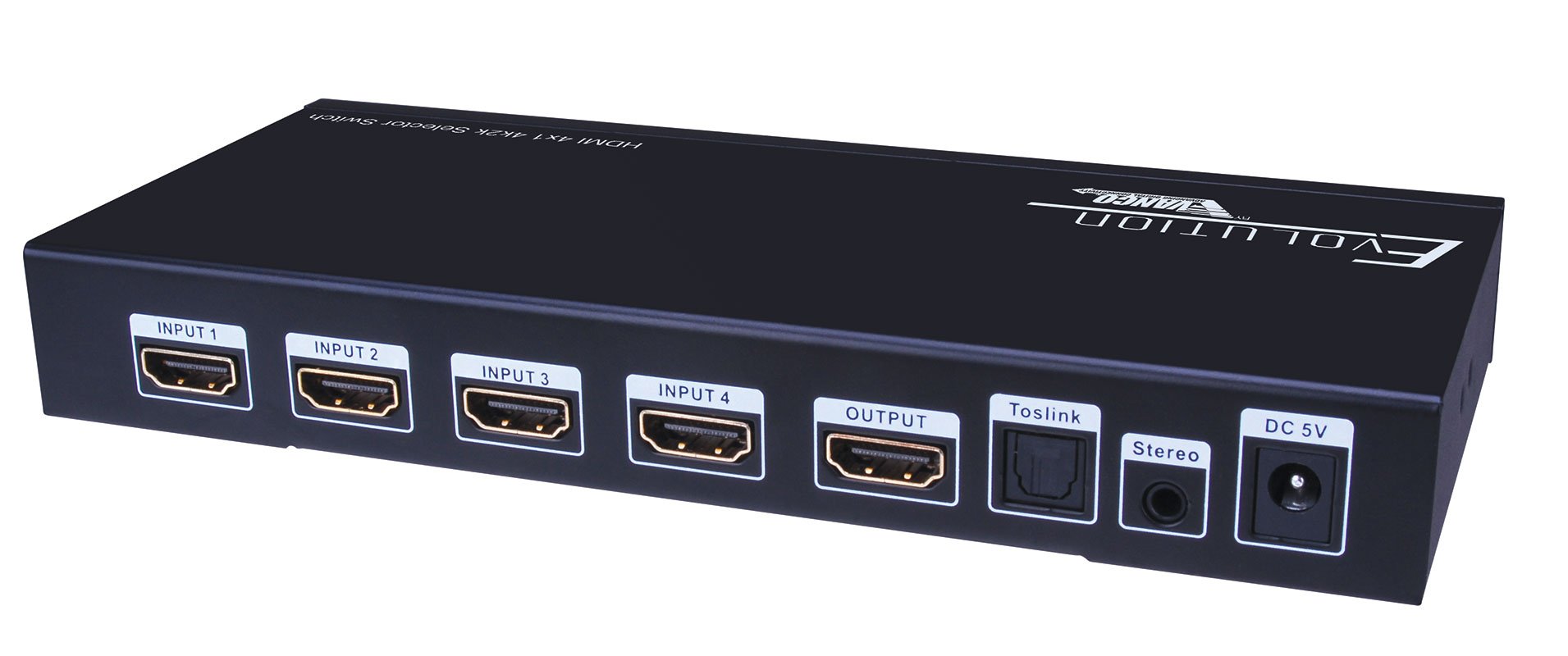

Evolution HDMI® 4×1 4K2K Selector Switch

SKU: EVSW1041 Categories: ,

This product has been discontinued.

Description

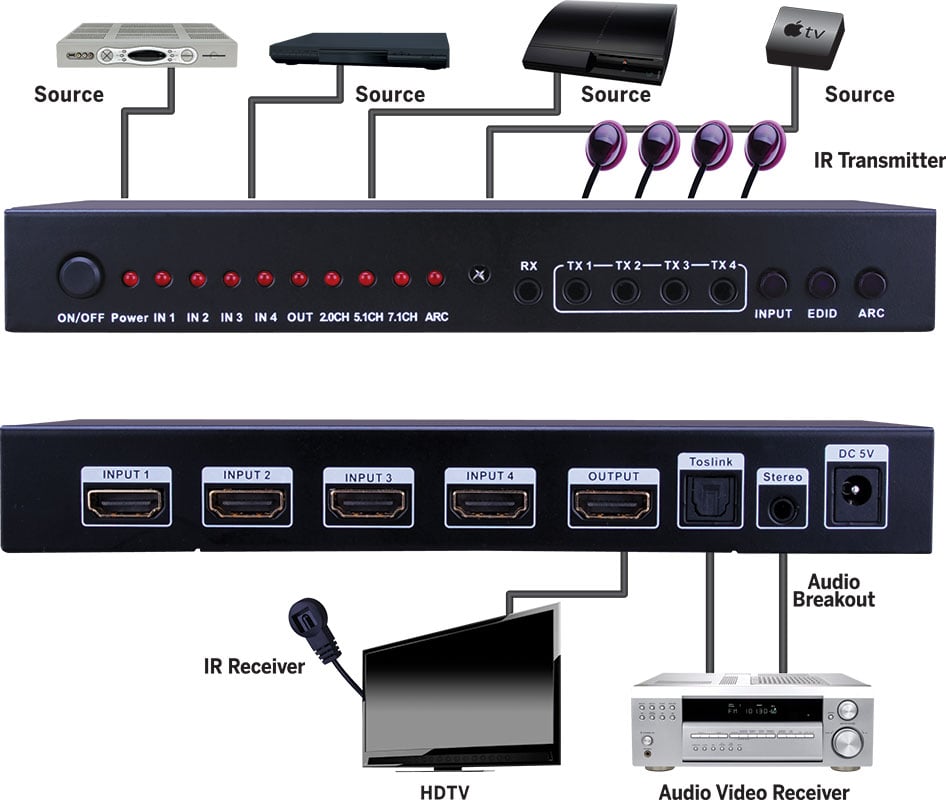

  • Allows 4 HDMI sources to be switched to 1 display
  • Supports 4K2K (2160 @30Hz) Ultra High Definition Resolutions
  • Supports HDMI Deep Color and 3D
  • Features wideband IR system for source switching and input switching remotely and at display (IR Transmitters- IR Receiver and IR Remote Control Included)
  • HDCP Compliant
  • Features Audio EDID management which allows selection of preferred audio channel
  • Supports 7.1- 5.1- and 2.0 channel digital audio and multiple formats such as DTS-HD/Dolby-True HD/LPCM7.1/AC3/DTS/DSD
  • Audio Return Channel (ARC) compatible
  • Audio breakout via toslink or stereo output
  • Compact design for easy installation- rack mounting ear set included
  • Power Supply: DC 5V
  • Dimensions: 7.6” W x 1” H x 3.25” D

Package Contents:

(1) EVSW1041 HDMI 4×1 4K2K Selector Switch
(1) IR Receiver (RX)
(4) IR Blaster (TX)
(1) DC 5V- 1A power supply
(1) Mounting hardware
(1) IR remote control
(1) User Manual



Additional information

Weight 1.8 lbs
Dimensions 2 × 10 × 7.25 in
Inputs/Outputs

4×1

Resolution

4K@30Hz

Brands

Evolution

EVSW1041 Product Manual

Download

EVSW1041 Sales Sheet

Download

EVSW1041 IR HEX Codes

Download
Find a Distributor
