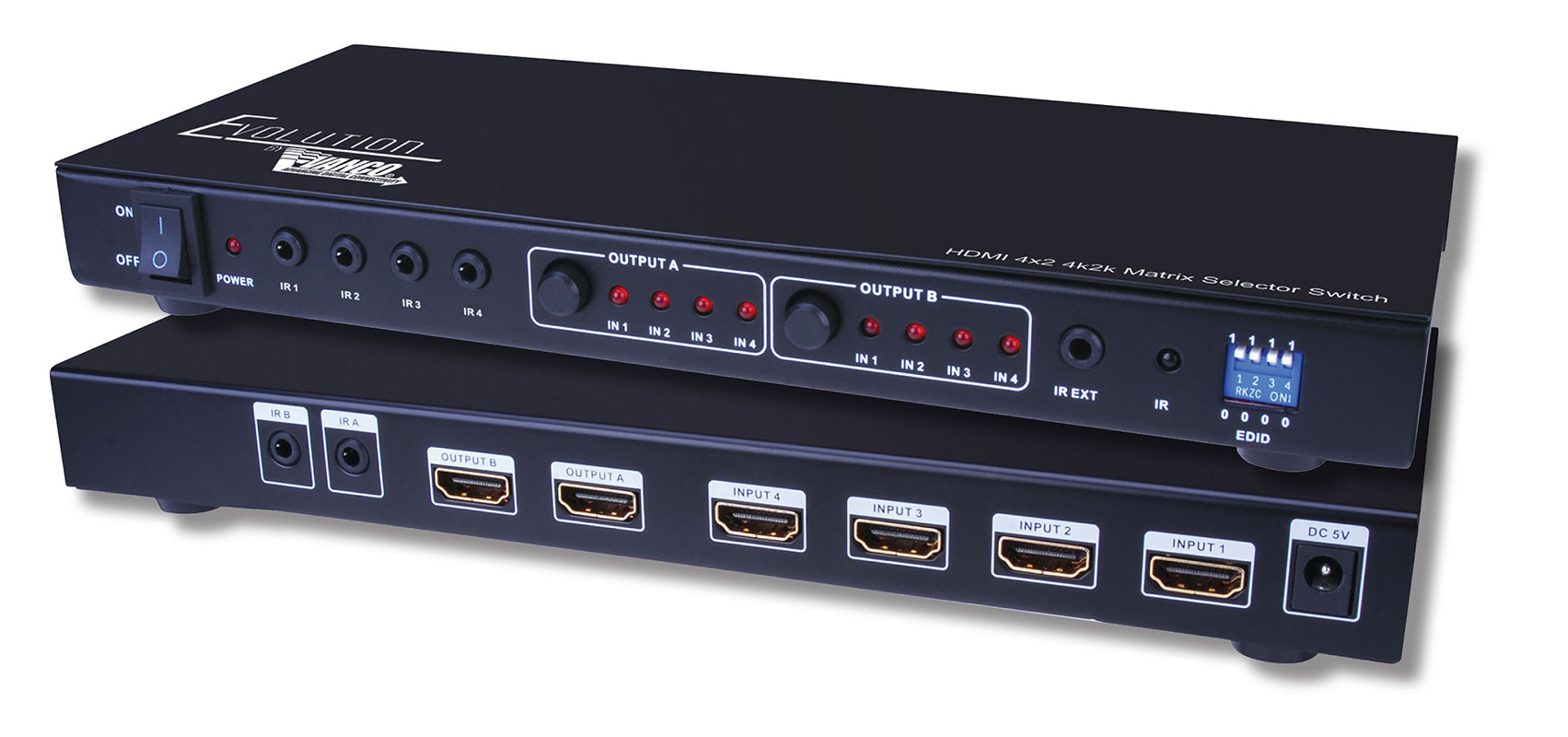

Evolution HDMI® 4×2 4K2K Compact Matrix Selector Switch

SKU: EVMX4442 Categories: ,

This product has been discontinued. You may be interested in:

HDMI® 4K 4×2 Matrix with Downscaling and ARC

Description

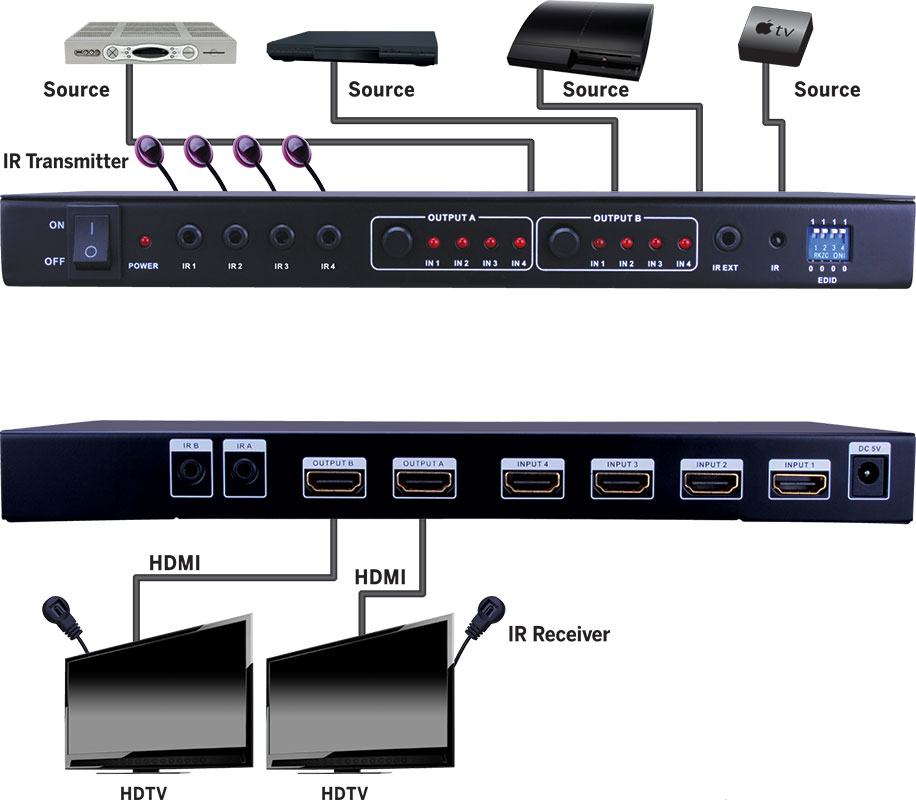

  • Allows up to 4 HDMI sources to be distributed simultaneously to up to 2 displays
  • Ultra HD capable Matrix Switcher providing a perfect solution for Home or Retail AV as well as Commercial and Hospitality Installations
  • Features EDID management which supports default HDMI EDID and has the ability to learn the EDID of display equipment for any “handshake” issues
  • HDCP Compliant
  • Supports 4K2K (2160p @ 30 Hz) Ultra High Definition Resolution
  • Supports HDMI Deep Color and 3D
  • Supports 7.1 channel digital audio
  • Wideband bi-directional IR pass-through (IR Transmitters- IR Receivers and IR Remote Control Included)
  • Compact design for easy installation- rack mounting ear set included
  • Power Supply: DC 5V
  • Dimensions: 10.2” W x 1” H x 4.4” D

Package Contents:

(1) EVMX4442 HDMI 4×2 Matrix Selector Switch
(3) IR Receiver (RX)
(4) IR Blaster (TX)
(1) DC 5V- 1A power supply
(1) Mounting hardware
(1) IR remote control
(1) User Manual



Additional information

Weight 2.8 lbs
Dimensions 2.5 × 12 × 9 in
Inputs/Outputs

4×2

Resolution

4K@30Hz

Brands

Evolution

Technology

HDMI

Transmission Distance

0 – 50 ft

EVMX4442 Product Manual

Download

EVMX4442 IR Hex-Pronto

Download

EVMX4442 SALES SHEET

Download
