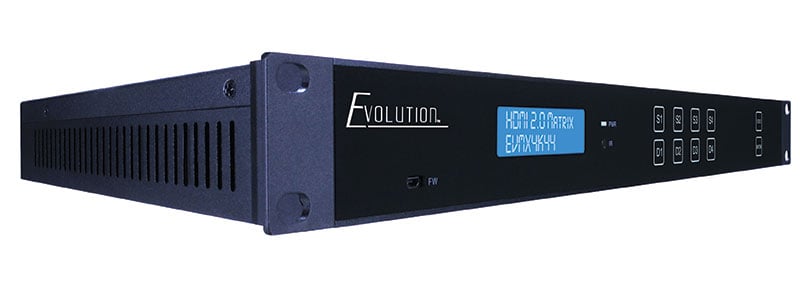

Evolution HDMI® 4×4 4K Matrix Selector Switch

Description

  • Allows up to 4 HDMI sources to be distributed simultaneously to up to 4 displays
  • Supports up to 4K@60Hz, 4:4:4, and HDR
  • Supports both HDR10 and Dolby Vision
  • HDCP 2.2/HDCP 1.4 compatible
  • Supports Deep Color and 3D
  • Supports DTS/DTS:X, Dolby Atmos and PCM Audio Formats
  • 4 SPDIF ports provide de-embedded HDMI audio output
  • EDID adjustment via RS-232 or manually adjustable
  • RS-232, remote control and/or manual control for switching
  • Power Supply: 24V DC, 1.25A
  • Dimensions: 17” W x 1.5” H x 9.12” D

Package Contents:

4×4 Matrix EVMX4K44
(1) IR Remote
(2) Mounting ears with screws
(4) Plastic cushions with screws
(1) RS-232 cable

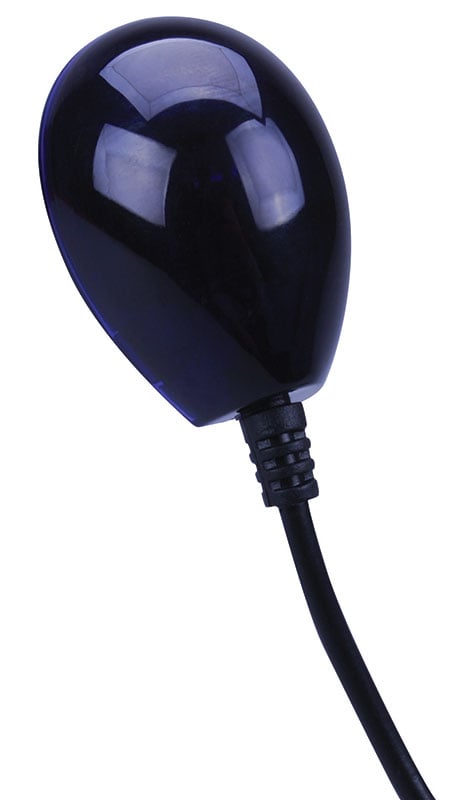

(1) IR Receiver
Power Supply (24V DC, 1.25A)
Product Manual

Additional information

Technology

HDMI

Resolution

4K@60Hz HDR

Inputs/Outputs

4×4

EVMX4K44 Product Manual

Download

EVMX4K44 IP and Serial Commands

Download

EVMX4K44 IR HEX Commands

Download

EVMX4K44 Control4 Drivers

Download

EVMX4K44 Crestron Drivers

Download

EVMX4K44 ELAN Drivers

Download

EVMX4K44 RTI Drivers

Download

EVMX4K44 URC Driver

Download
