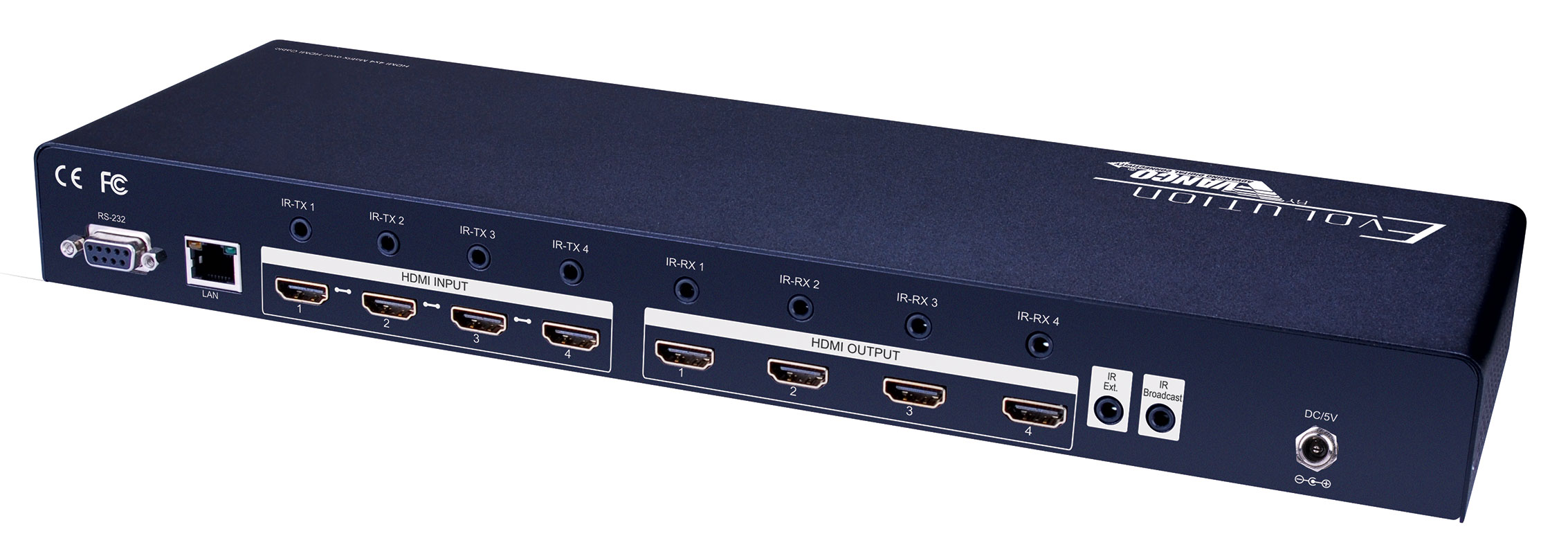

Evolution HDMI® 4×4 Matrix Selector Switch

SKU: EVMX4444 Categories: ,

Description

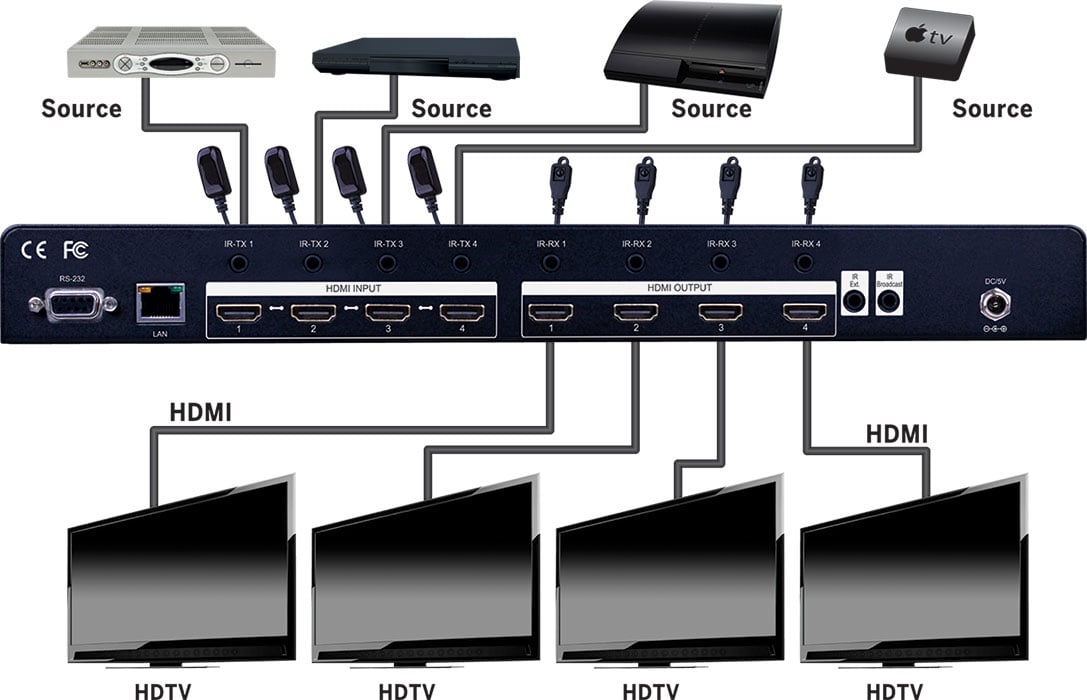

  • Allows up to 4 HDMI sources to be distributed simultaneously to up to 4 displays
  • 1080p HD Matrix Switcher providing a perfect solution for Home or Retail AV as well as Commercial and Hospitality installations on a budget
  • Features EDID management which supports default HDMI EDID and has the ability to learn the EDID of display equipment for any “handshake” issues
  • HDCP Compliant
  • Supports HDMI Deep Color and 3D
  • Supports 7.1 channel digital audio
  • Wideband bi-directional IR pass-through (20 to 60 kHz)
  • Choose from 5 switching modes – front panel buttons- Local remote control- RS232 control- IR call-back (dedicated IR extension cable connected to IR extension port- and IR emitters on sources required)- and Ethernet control
  • Easy installation mounting ear hardware set included
  • TAA Compliant
  • Dimensions: 14.6”(371mm)Wx1.57”(40mm)Hx4.65”(118mm)D

Package Contents:

  • EVMX4444 HDMI 4×4 Matrix Selector Switch
  • IR Receiver (RX)
  • IR Blaster (TX)
  • DC 5V4A in-line with C7 power cord
  • Mounting Hardware
  • IR remote control
  • Installation software CD
  • User Manual

Additional information

Weight 5.2 lbs
Dimensions 19.25 × 8.8 × 2.5 in
Inputs/Outputs

4×4

Resolution

Full HD 1080p

Brands

Evolution

Technology

HDMI

Transmission Distance

0 – 50 ft

EVMX4444 Product Manual

Download

EVMX4444 Sales Sheet

Download

AMX Driver

Download

Control4 Driver

Download

Crestron Driver

Download

RTI Driver

Download

EVMX4444 Discreet IR Hex Codes

Download

EVMX4444 Firmware and Software

Download

EVMX4444 RS232 Protocol for Matrix units over UTP

Download
