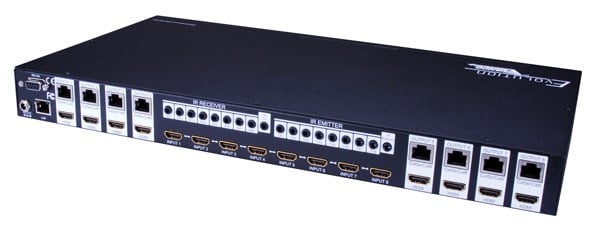

Evolution HDMI® 8×8 Matrix Selector Switch (over Single Cat5e/Cat6 Cable)

SKU: EVMX4088 Categories: ,

LEGACY PRODUCT - This product is no longer available from Vanco.

Description

  • Allows up to 8 HDMI sources to be distributed simultaneously to up to 8 displays
  • Transmission Range: Extends 1080p resolution up to 131ft/40m over Cat5e/Cat6
  • 8 additional HDMI outputs for flexibility or mirroring capability; allows for connection of up to 16 displays or the ability to create a larger distribution system by cascading or daisy chaining
  • Features EDID management which supports default HDMI EDID and has the ability to learn the EDID of display equipment for any “handshake” issues via RS-232 connectivity
  • For even greater control and fine tuning- each receiver features a fully adjustable EQ distance range for optimizing the transmission signal
  • Receivers (Sold Separately; Part Number EVRX3001) feature LED indicators for clear power and video signal selection
  • HDCP Compliant
  • Supports HDMI Deep Color and 3D
  • Supports 7.1 channel digital audio
  • Wideband IR pass-through (20kHz to 60 kHz)
  • Choose from 5 switching modes – front panel buttons- Local remote control- RS-232 control- IR call-back (dedicated IR extension cable connected to IR extension port- and IR emitters on sources required)- and IP control utilizing smartphone or tablet via LAN
  • 12V 5A DC- UL Listed Power supply for 8X8 matrix unit
  • 8X8 Matrix Dimensions: 17.32” (440 mm) W x 1.73” (44 mm) H x 8.57” (217.7 mm) D

Compatible Receiver: EVRX3001

Package Contents:
(1) EVMX4088 HDMI 8X8 Matrix Selector Switch
(9) IR Receiver (RX)
(8) IR Blaster (TX)
(1) DC 12V5A power supply
(1) Rack-mounting ear set
(1) IR remote control
(1) Installation software CD
(1) User Manual





Additional information

Inputs/Outputs

8×8

Resolution

Full HD 1080p

Technology

1 CAT

Transmission Distance

51 – 164 ft

EVMX4088 Product Manual

Download

This Attachment Never Expires.

AMX Driver

Download

This Attachment Never Expires.

Control4 Driver

Download

This Attachment Never Expires.

Crestron Driver

Download

This Attachment Never Expires.

RTI Driver

Download

This Attachment Never Expires.

EVMX4088 Discreet IR Hex Codes

Download

This Attachment Never Expires.

EVMX4088 Firmware and Software

Download

This Attachment Never Expires.

EVMX4088 Serial Commands

Download

This Attachment Never Expires.
