Evolution HDMI® and VGA Extender over Single Cat5e/Cat6 Cable

SKU: EVEXVGAHD Categories: ,

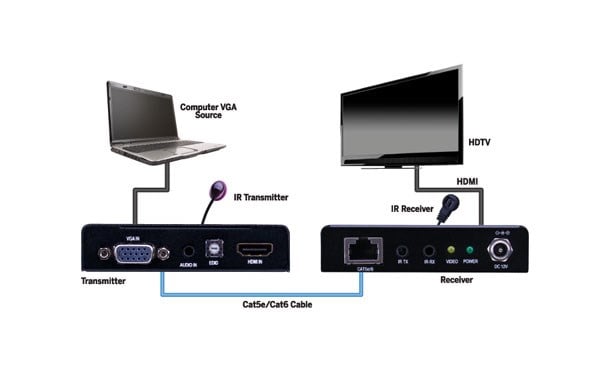

  • Allows HDMI or VGA with Audio + bi-direction IR and POE to be transmitted up to 164 ft/50m over a single Cat5e/Cat6 Cable

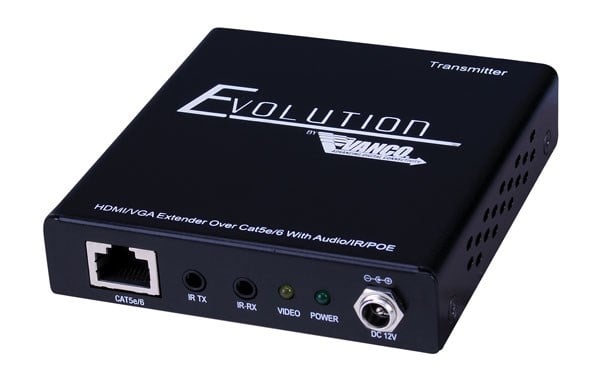

  • Features Power over Ethernet (PoE) Technology which transmits power over Cat5e/Cat6- allowing the transmitter and receiver to be powered off of a single power supply

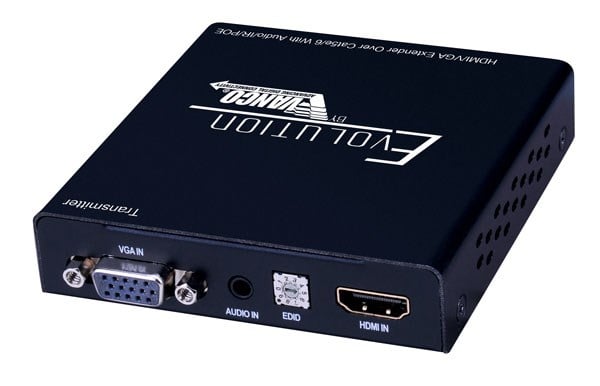

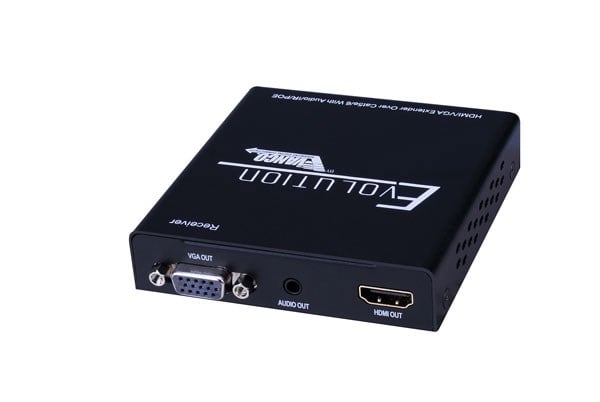

  • Transmitter can automatically select HDMI or VGA as main live video input- and the receiver supports output video by both HDMI and VGA port at the same time
  • Transmission Range: 164ft/50m at 1080p 3D or 1920×1200 60fps- 270ft/80m at 1080i/720p
  • HDMI port supports Dolby True HD- DTS-master- etc.
  • HDMI port supports 3D signals (all 7 formats)- such as Frame Packing- Side-by-Side- Top-to-Bottom- etc.
  • Supports EDID call back as well as manual EDID management
  • Supports CEC pass through
  • Bi-directional Wide Band IR (20-60KHz)
  • Priority to VGA input and dual VGA/HDMI output
  • Analog stereo audio extender input and output
  • HDCP 2.0 compatible
  • Compatible DVI 1.0
  • Supports cascade to enhance extending distance
  • Dimensions: 3.7” W x .8” H x 3.5” D
  • Patent No. 9,710,038 B1

Package Contents:

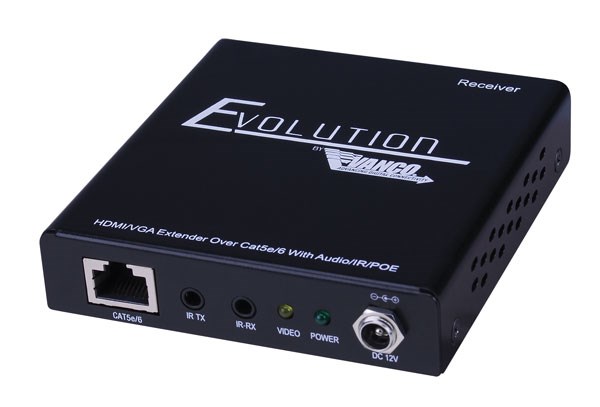

EVEXVGAHD Extender Set (TX and RX)
(2) IR TX
(2) IR RX
(1) DC 12V 1A power supply
Product Manual

Additional information





Full HD 1080p

Transmission Distance

51 – 164 ft

EVEXVGAHD Product Manual
