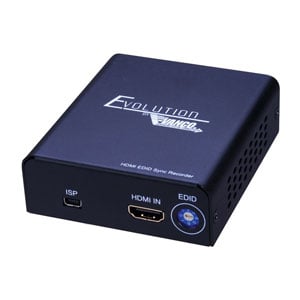

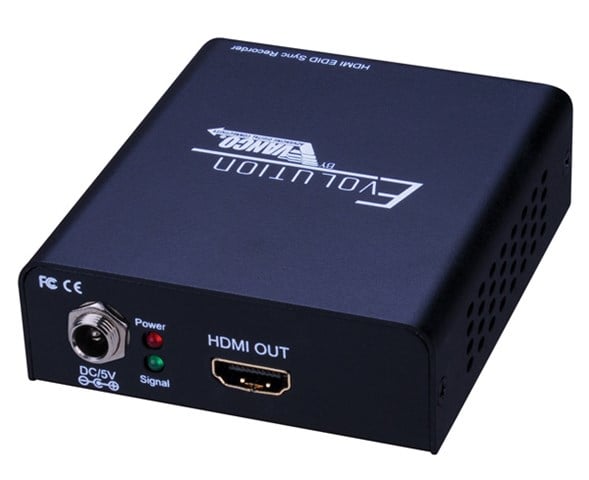

Evolution HDMI® EDID Sync Recorder

SKU: EVRC5002 Categories: , ,


  • For use in applications where EDID issues are occurring
  • Able to read- copy- emulate and pre-set EDID information to encourage the “handshake” between a source and display
  • Features the ability to set EDID from the main unit or from a connected computer using the included software
  • Saves time from troubleshooting and having to replace equipment
  • HDCP 1.1 compliant
  • Supports HDMI Deep Color & 3D / DVI 1.1 compliant
  • Able to read and store the EDID of displays (monitors or projectors)
  • Able to overwrite set EDID into the EDID Reader/Writer/Re-timer or to HDMI displays
  • Built-in default EDID
  • Maintains HDMI/DVI video resolution
  • Prevents PC from deactivating inactive HDMI/DVI ports
  • Re-generates EDID content
  • Re-synthesizes input HDMI stream and maintains or improves signal integrity
  • Controllable by PC/Laptop via USB with included software
  • Dimensions: 3.14” (80mm) W x 1.1” (28mm) H x 3.58” (91mm) D

Package Contents:

  • EVRC5002
  • (1) DC 5V in line power supply
  • Rack-mounting ear set
  • Installation software CD
  • Product Manual


Additional information

Weight 1.15 lbs
Dimensions 3 × 8 × 5.5 in



EVRC5002 Product Manual
